About this item
- Moistureproof and Waterproof: Heat-shrinkable sleeves can be used to protect connections and can be waterproof in severe environments. Not easy to damage.
- Multi-application Set: rings for four types, fork terminals, male and female quick disconnects, hook terminals, and butt connectors. You can choose different connectors according to different needs.
- Strong Crimps: Thick copper drums ensure high tensile strength, and tear resistance and prevent mechanical damage. The cable does not slide out of the connector.
- Excellent Electrical Conductivity: The middle conductor is made of high-quality Pure Tinned copper. The tin coating can also increase the current and corrosion protection.
Specification
Shrinkage ratio 3:1
Minimum shrink temperature: 175°F (80°C)
Full recovery temperature: 265°F (130°C)
Operating temperature: -65°F–255°F (-55°C - 125°C)

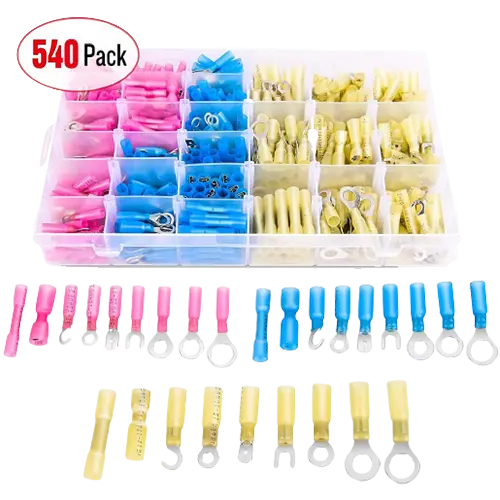

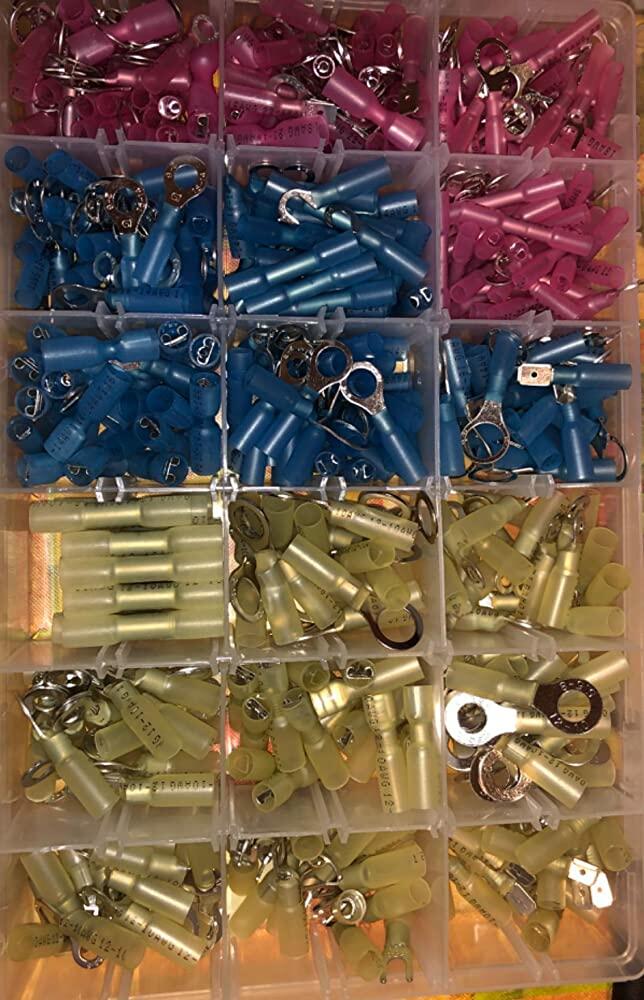

Connector types and quantity: Rings*240; Fork*60; Hook*60; Butt*60; Male*60; Female*60;
Yellow: 10-12AWG, Max Voltage : 600V, Max Current : 48A
Blue: 14-16AWG, Max Voltage : 600V, Max Current : 27A
Red: 16-22AWG, Max Voltage : 600V, Max Current : 19A
Nilight heat shrink connectors are compliant with ROHS, ISO9001:2008, SGS and CE standards.
Ideal for use in shops, garages, automotive electricians, machinery, workshop cars, trucks, motor homes, homes, or other scientific projects.
Feature
Easy to identify
Different wire gauges have different colors. It makes it more convenient when use, and it is not easy to cause confusion and unclear specifications.
Waterproof and anti-corrosion
The outer material is a polyolefin tube, and the inside is made of hot melt adhesive. These materials provide greater safety for wire connectors. In addition, the insulation seal can effectively prevent wire corrosion.
Thick copper
Each terminal uses a high-quality copper core. The copper sheet is thick and the load is large. It is not easy to generate heat and the wiring is stable.
How to use
Strip the Wire
Select a heat shrink connector suit wire size. Strip the wire and insert it into the splice barrel.
Crimp the Terminal
Crimp the insulated connector with a wire crimp.

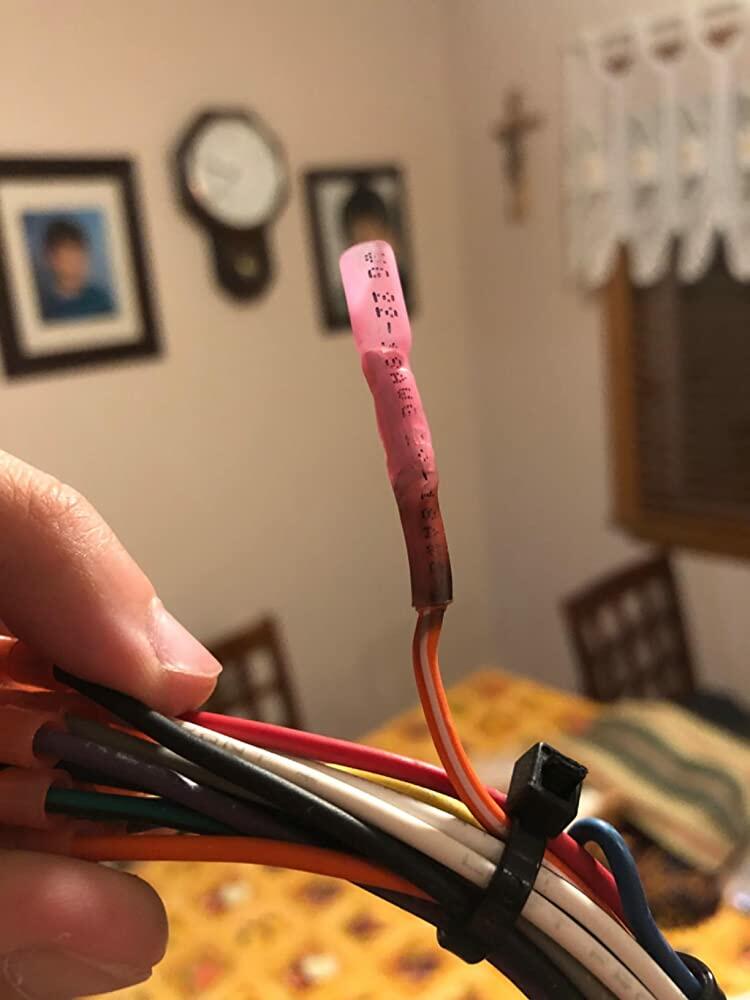

Apply heat
Rotate the terminal while applying heat to male it evenly heated. For best results, use a heat gun.
Inspect the Connection
Let the terminal cool down and inspect your connection.
