About this item
Momentary Switch: Heavy duty DPDT reverse polarity switch resetting automatically (returns to off) when released. Controls the up/down, clockwise/counterclockwise motion of DC loads (e.g. motors, hoists, cranes, linear actuators etc.).
Dual Operation: This momentary electrical system switch is used for jogging or inching operations. A DPDT switch is equivalent to two SPDT switches. It routes two separate circuits. Connecting each of two inputs to one of two outputs. The position of the switch determines the number of ways in which two contact can be routed. Always make sure you are using a switch and wire sufficient to handle the load you are carrying. In higher draw applications, a relay may be needed.
Wide range of application: Universal fit for all cars, RVs, SUVs, ATVs, UTVs, Cans, Buses, Marine boats, Yachts, Trailers, Jeeps, Prerunners, Campers, Caravans etc; Mainly used to control Winch, Pump, Horn, Reclining Media Room Seats, Auto Bilge Pump or led light bar, led work lights, fog lamps, headlights, taillights and auxiliary lamps, etc.
Sturdy and durable: made of high-quality plastic and well-conductive pins; ensure long lasting durability, highly optimized for general use and will give you a pleasant experience.
Package Includes: A 7 PIN switch, jumper wires set and a wiring diagram. 2 Year Warranty by Nilight.

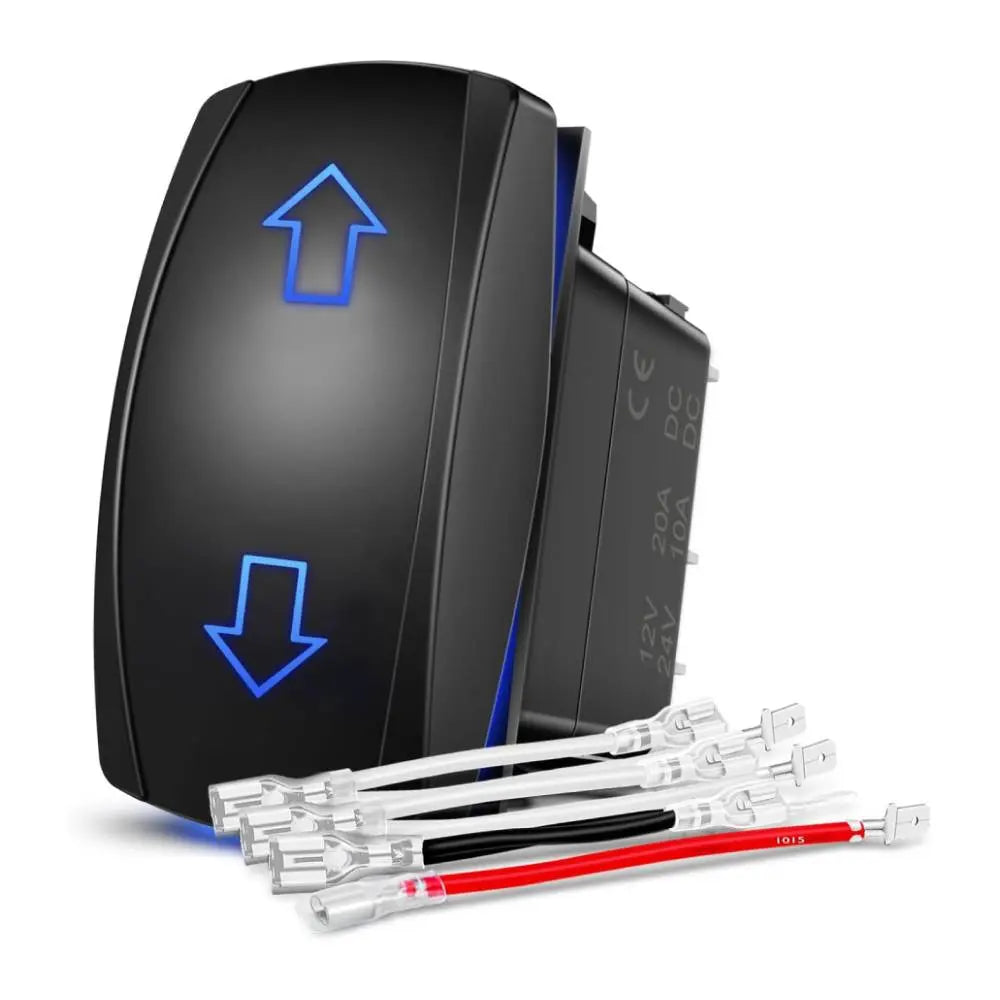

7PIN (ON)-OFF-(ON ) rocker switch with 16 AWG jumper wires
Material: Superior ABS+PC; Rated at 12V 20A and 24V 10A DC.
Mounting Hole Size: 1.43in(37mm) x 0.84in(21.3mm). DPDT design, can control 2 loads.
Fits most cars, SUVs, ATVs, UTVs, 4X4, motorcycles, trucks, Jeep Wranglers, boats, yachts, and other off-road vehicles.
Mainly used together with wiring harness to control the up/down, clockwise/counterclockwise motion of DC loads (e.g. motors, hoists, cranes, linear actuators etc.). Such as Winch, Pump, Horn, Reclining Media Room Seats, Auto Bilge Pump etc.
Product Details
Non-Locking Design
The switch is very flexible for turning on or off. Automatic rebound when finger released. It can stand up to 10,000 times pressing under normal use.
Easy Installation
This switch is simple to install, product comes with a wiring diagram which make it easy to wire the jumper wires in two seconds.
Premium Jumper Wires
The jumper wires are made of high-quality 14 gauge wires.
The Tin-plated copper terminals on the wire are of good stability, wear resistance, and corrosion resistance, which improves the oxidation resistance of copper and maintains its conductivity better.
Excellent Product
Made of ABS and PC of premium quality, the switch is impact and heat-resistant. all patterns are laser etched directly onto the switch surface to ensure long-lasting durability.
LED Lighting Effect
Upper LED Illuminated
The upper light is on when the switch is pressed, and it stops working when let it off.
Lower LED Illuminated
The lower light is on when you press the switch down, and it will return off position when you remove your finger.
Easy Installation
Installation on switch holder
The 5 pin rocker switch can be installed on Nilight rocker switch holder housing for better using effect.
Installation on switch panel
It can also be replaced to any defective 5 PIN switches. Convenient and cost-effective.
Applications
Replacable Rocker Switch
The switches can be replaced with any defective 5 PIN SPST switches, convenient and cost-effective.
Use on Marine Boat
Marine-grade Construction and IP65 Waterproof: It adopts a high-quality Aluminum panel, Scratch-proof, and Corrosion Resistant, with a rubber-sealed cap for all sockets dust-tight and debris-proof.
Wide Application
The product is suitable for controlling all electronic equipment on board. Available for upgrading headlights switch, fog light switch, wide light switch, car refrigerator switch, and car vacuum cleaner switch replacement. etc.
Car Electronic Device
The product is suitable for UTVs and ATVs.
Installation is simple and can be mounted horizontally or vertically. You can even use it at -25°(Min) or 80°(max). Suitable for most DC 12V-24V cars, UTV/ATV, trucks, trailers, RV, caravans, buses, marine boats, yachts, airplanes, etc.
