- Dimension: 5.8” x 6.7”
- 3 Stud Mounted Design
- 4 Colors Wire Connection
- Wire Pigtail Length: 6”
- Position: Rear
- Material: Polycarbonate
Fitment Type:
Universal for 12V vehicles like Truck, Trailer, Boat, bus, Lorry, Van, etc. Also suitable for Ford, Jeep CJ YJ TJ JK Wrangler, etc
Wire Connection:
Black Wire: Ground
Black+ Yellow Wire: White Reverse Light
Black+ Red Wire: High Brightness Red Stop Turn Light
Black + White Wire: Low Brightness Red Tail Light+ White License Plate Light
Package Include:
2 x 39 LED Lamp w/stud
1 x User Manual
Specification
Mounting Stud
Mounting stud design, stud size: 5mm in diameter. Fit most of the existing holes on the vehicle.
IP65 Waterproof
Made of durable polycarbonate lens and ABS housing, protecting the light from water, dust, dirt, and bad weather.
Wire Connection
wire length: 6”. Black wire for ground, yellow wire for reverse light, white wire for low brightness tail light and license plate light, red wire for high brightness stop turn light,

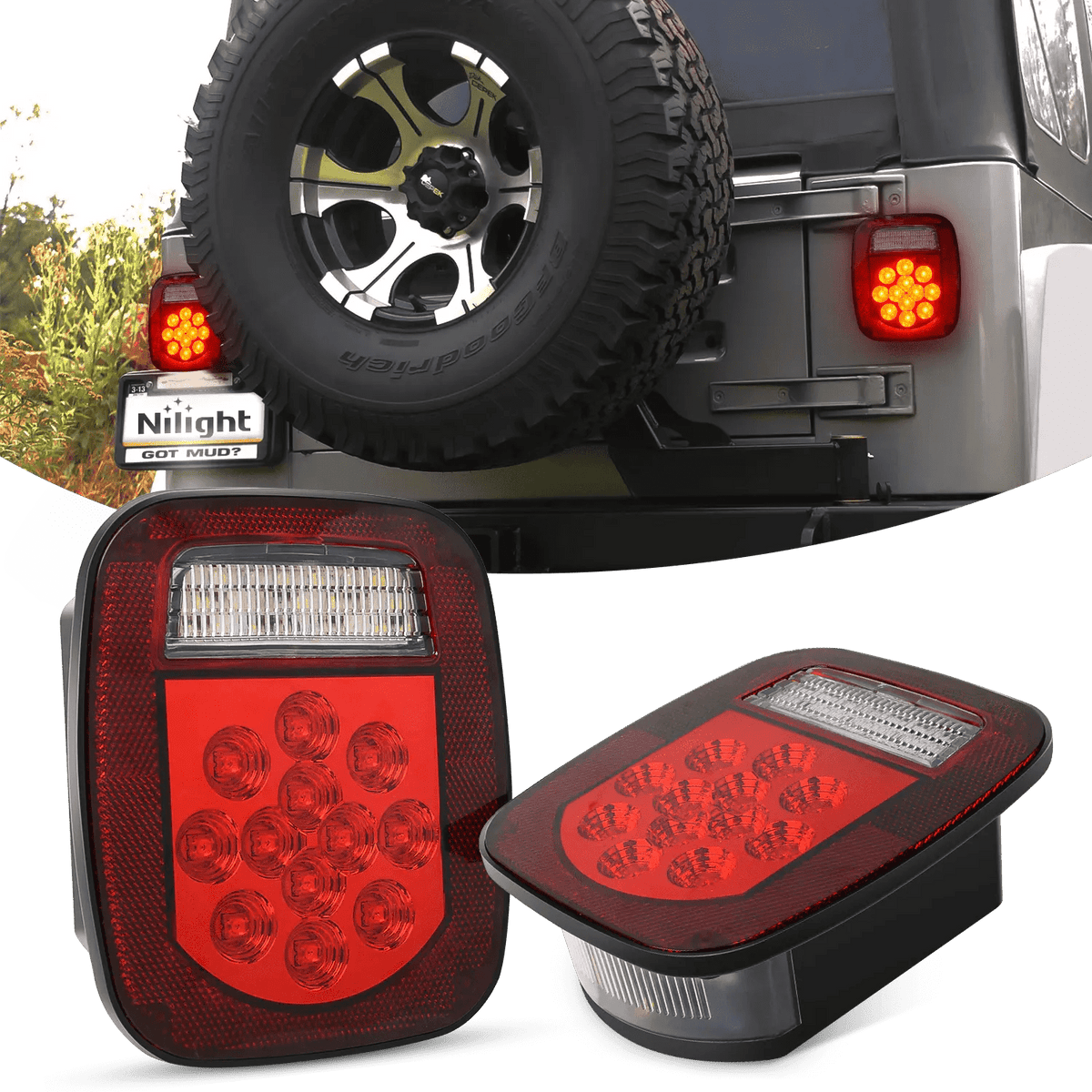

Multiple Lighting Functions
Reverse Light
Bright white light
Tail Light License Plate Light
Dark red light for running light, bright white light for license plate light.
Stop Turn Light
Bright/high brightness red light for brake light
Application
Universal for 12V vehicles like Truck, Trailer, Boat, Bus, Lorry, Van, etc. Also suitable for Jeep JK YJ Wrangler NOTE: YJ model needs modification.
