About this item

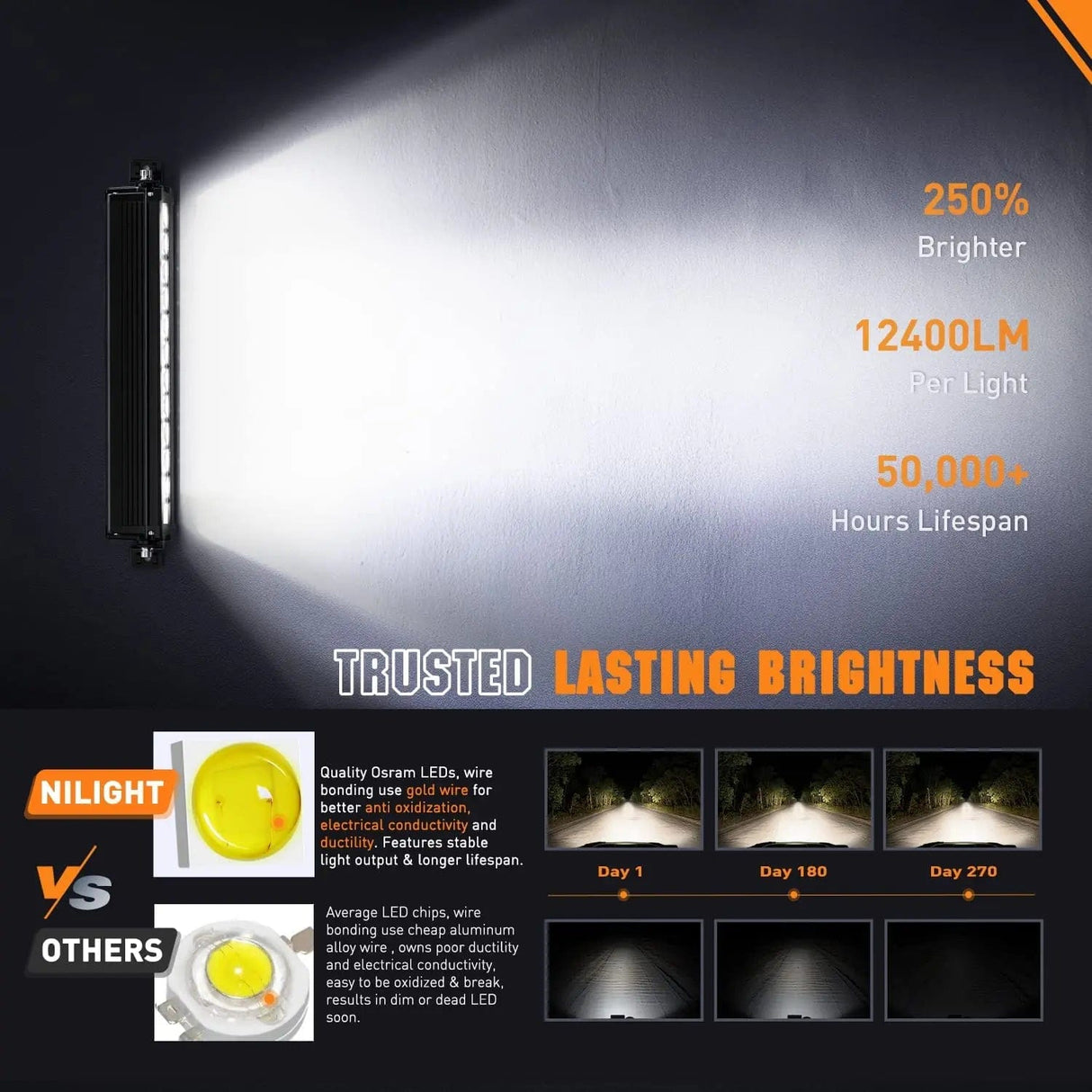

Trusted Hyper Bright: Employ top-notch Osram P8/5W led chips, total 120 watts per light, with lighting performance 12400LM/PC, 2250Lux@10Meters, 1Lux@474Meters (1555FT). Features a trusted ultra-bright, high-intensity, stable light output. Improves driving safety with a clearer, wider, and further visual area. Lifespan extends over 50,000 hours
Indirect Light Source Design: Utilize advanced optical technology with a special indirect light source structure to greatly reduce the glare phenomenon caused by the direct light of the lamp bead. Light emitted by the LED can be completely or substantially all to be irradiated on the reflector, then reflect along a designed path and project to a specific area. Achieve a very high light utilization rate and light effect

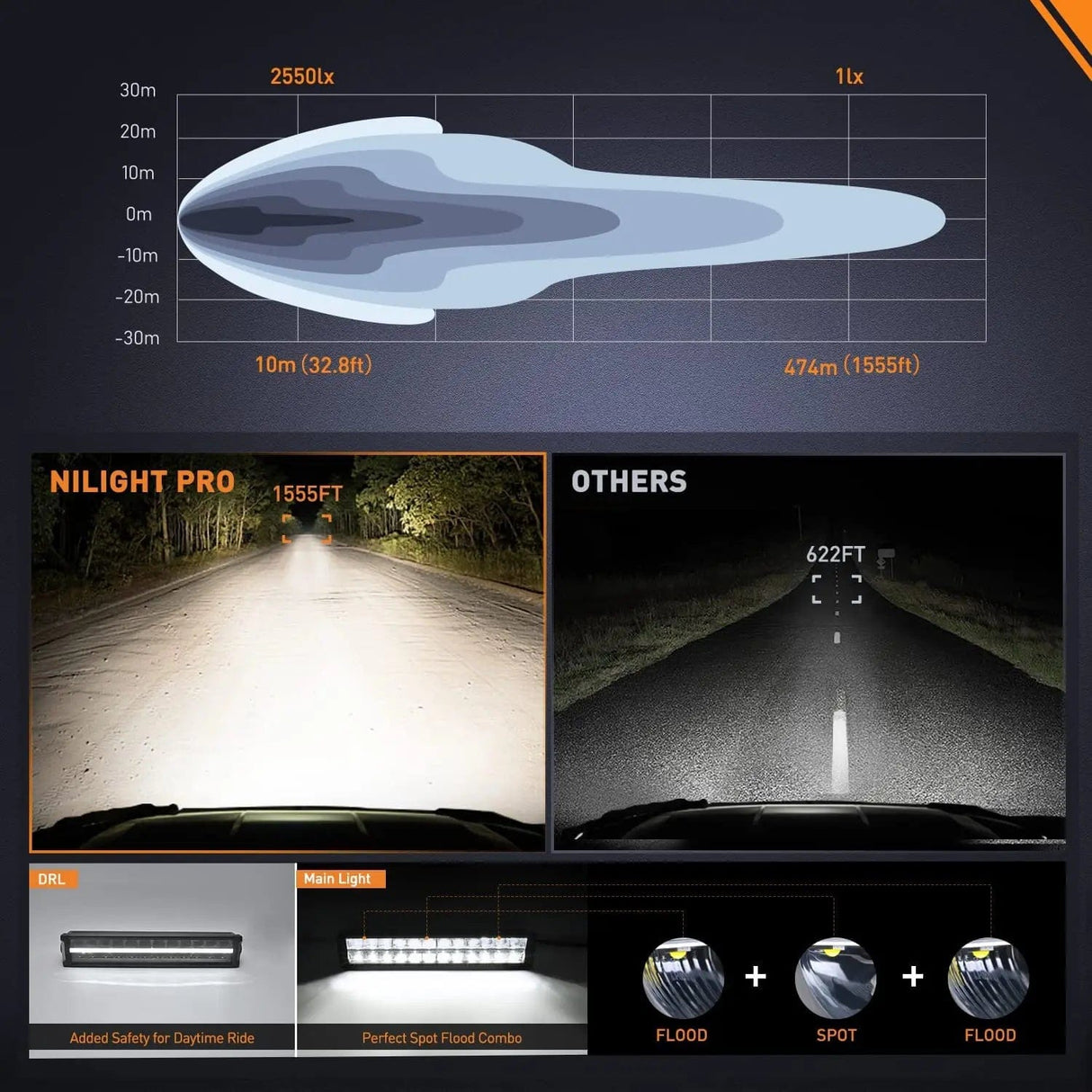

Perfect Spot Flood Combo: Combining 10°super spot light in the middle and 90°flood light at two sides. Get you both high-intensity spot light for further distance and also bright flood light at broader distance. Clear all darkness forward and at side roads. A perfect lighting option for offroading trails
Premium Durability: IP68 waterproof rated, powerful to withstand any harsh environments and weather conditions. Solid built in quality 6063 and ADC12 aluminum housing and thick heat shrink shell, efficiently accelerate heat dissipation and maintain a safe temperature to ensure stable lighting output as well as lighting durability. Promised with 5 years warranty
EMI/RFI Protection: Light pods are built-in EMC that meets EN55015 CE standards, limiting the generation of EMI/RFI interference. Provides better protection for both internal electronic components in lighting and also external objects like a radio receive
Main Feature

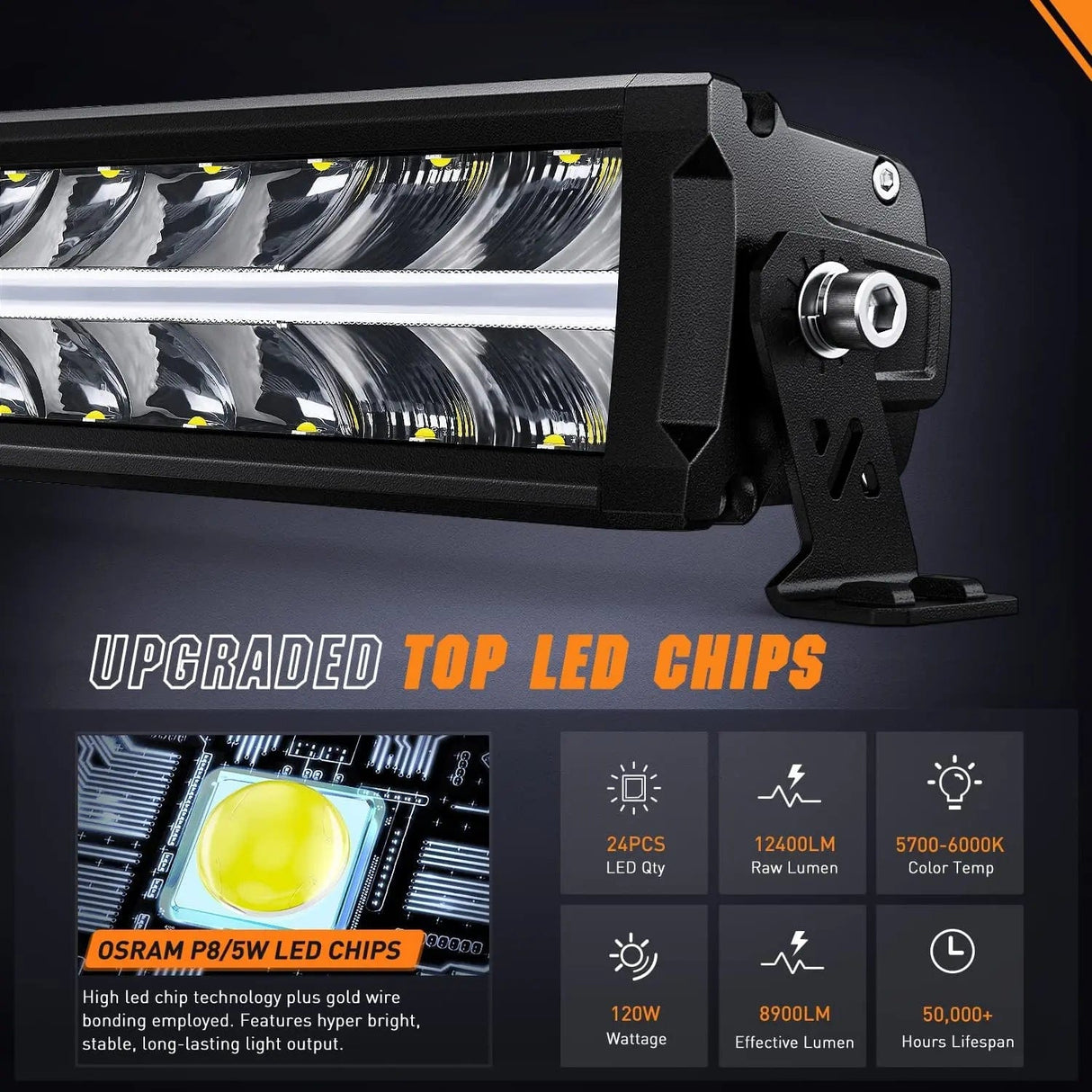

Top LED chips
Use top Osram-led chips that feature a trusted brightness and a long-lasting lighting performance

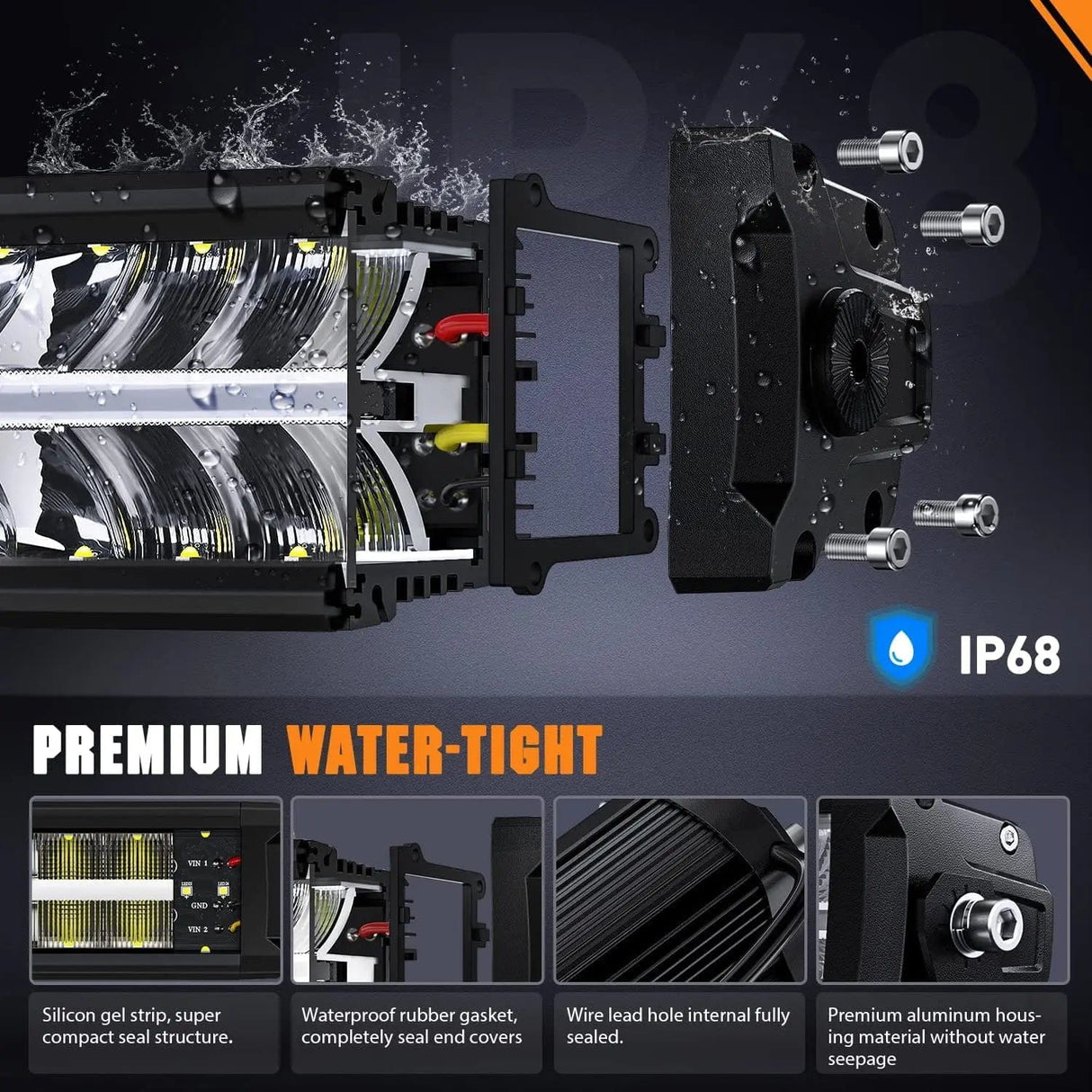

IP68 Waterproof
IP68 is water-resistant to withstand any harsh environments and weather conditions

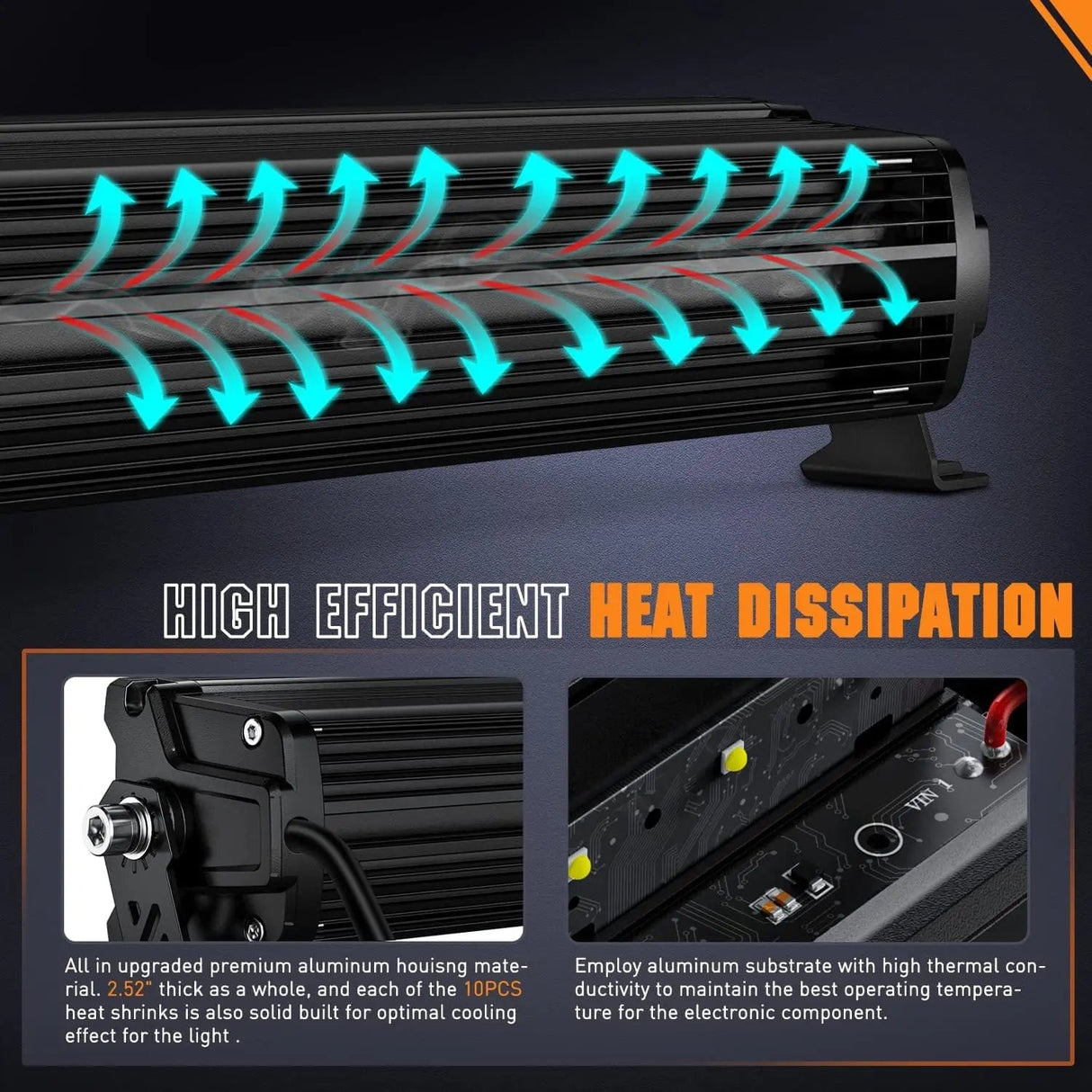

Efficient Cooling
Built-in quality 6063 and ADC12 aluminum housing and heat shrink shell, speed up heat dissipation and maintain a safe temperature for stability & durability

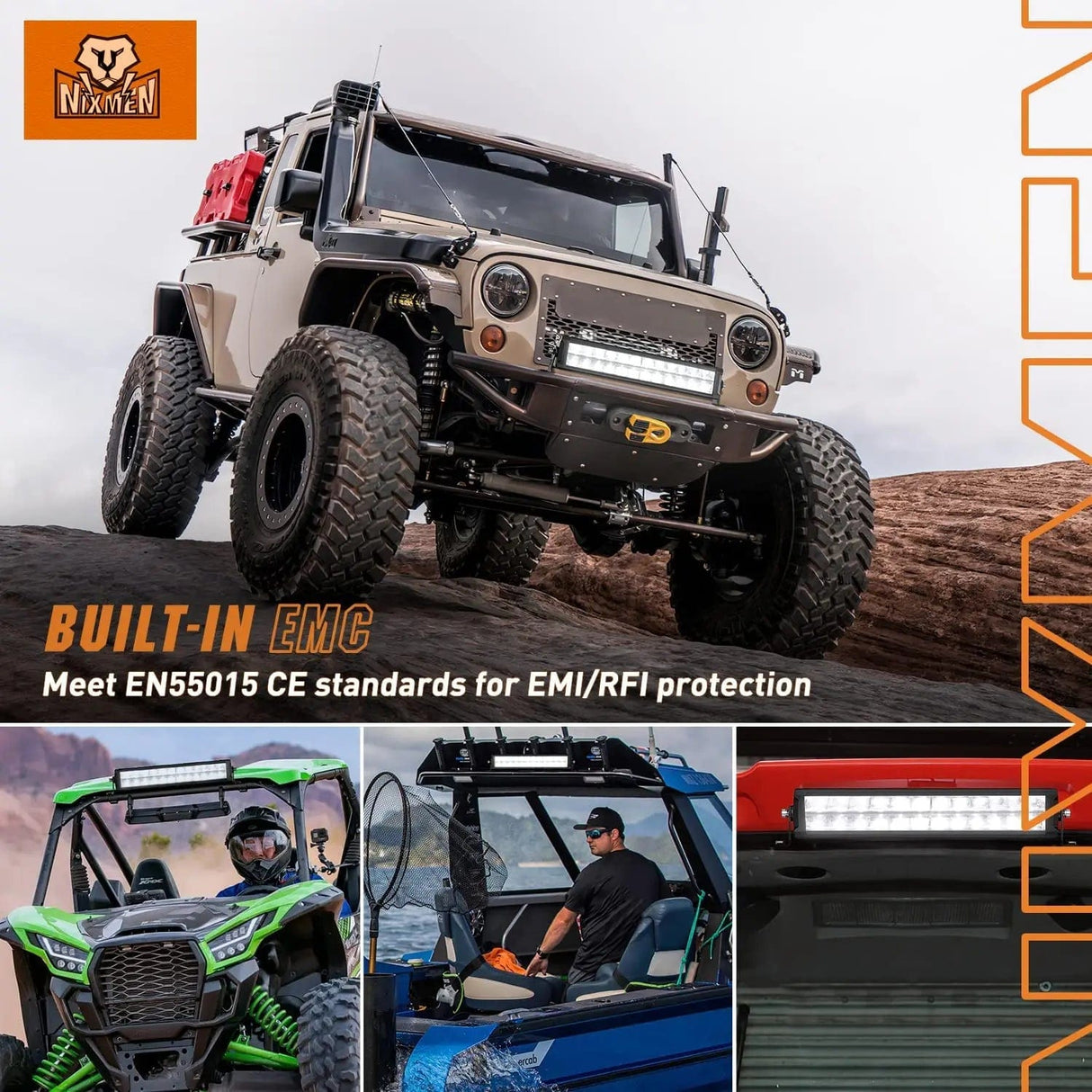

Built-in EMC
Lights are built-in EMC for EMI/RFI protection, resolve the issue of radio interference and flickering
Specification

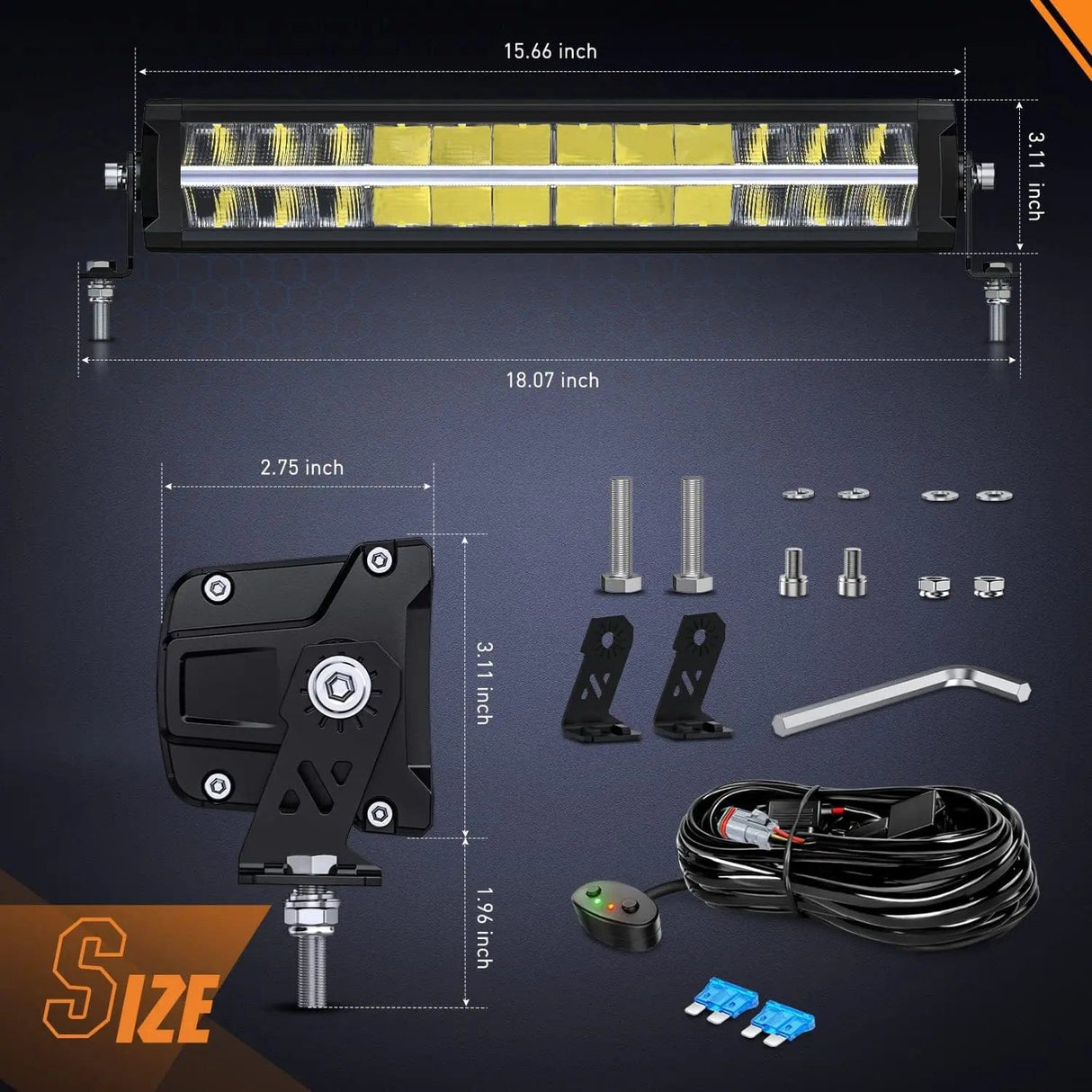

| Light Dimension |
15.66in L x 3.11in W x 2.75in T |
| Hole to Hole Length |
18.07in |
| LED Chips |
Osram P8/5W led chips
|
| LED Power |
120W
|
| Raw Lumen |
12400LM/per light |
| Effective Lumen |
8900LM/per light |
| Lighting Performance |
2250Lux@10Meters (33FT), 1Lux@474 Meters (1555FT) |
| Amperage Draw |
10.7A/12V, 4.77A/24V |
| Beam Type |
Spot Flood Combo
|
| Lighting Mode |
Driving light(Main light), daytime running light (DRL)
|

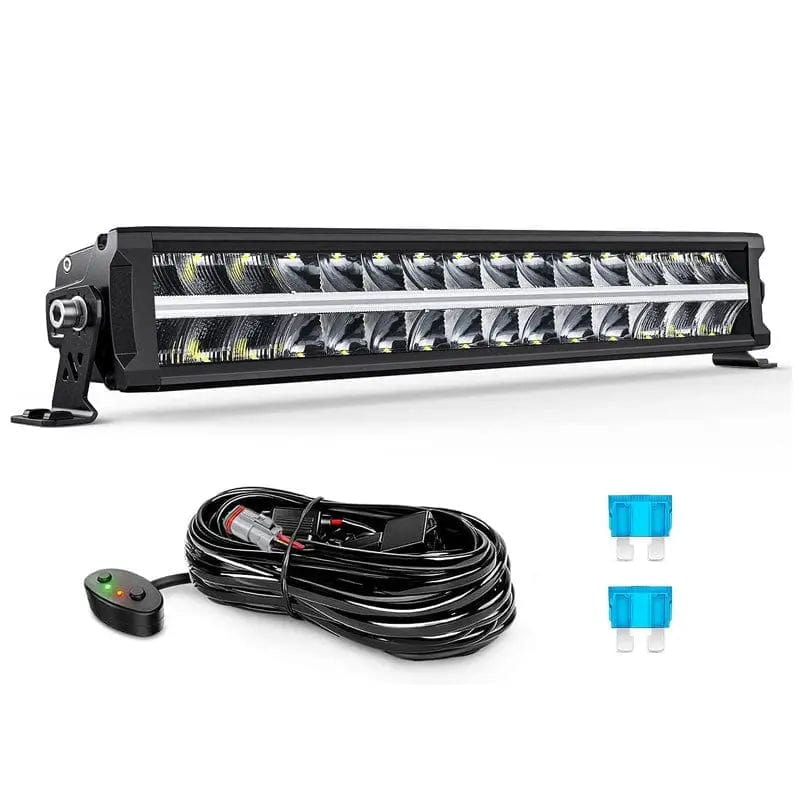

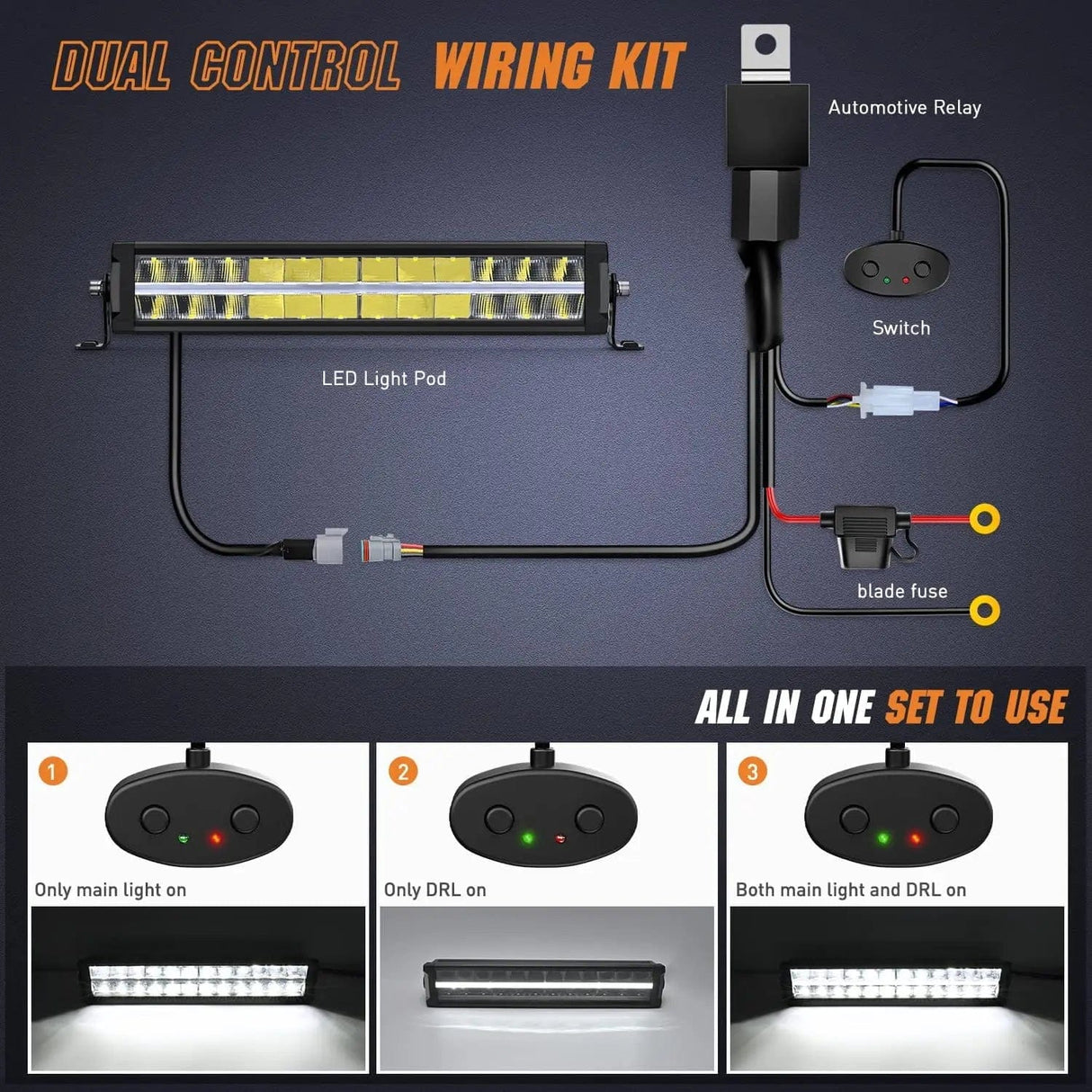

| Included Wiring kit |
16AWG DT Connector Wiring kit-one lead
|
| Operating Voltage |
9-30V DC
|
| Color temperature |
5700-6000K
|
| Operating temperature |
-40~85.0 ℃
|
| Lifespan |
50,000+ Hours
|
| Waterproof |
IP68
|
| Material |
6063 and ADC12 Aluminum housing, aluminum substrate circuit board, Osram led chips, PC lens
|
| Certifications |
CE, FCC and RoHS
|
