About this item

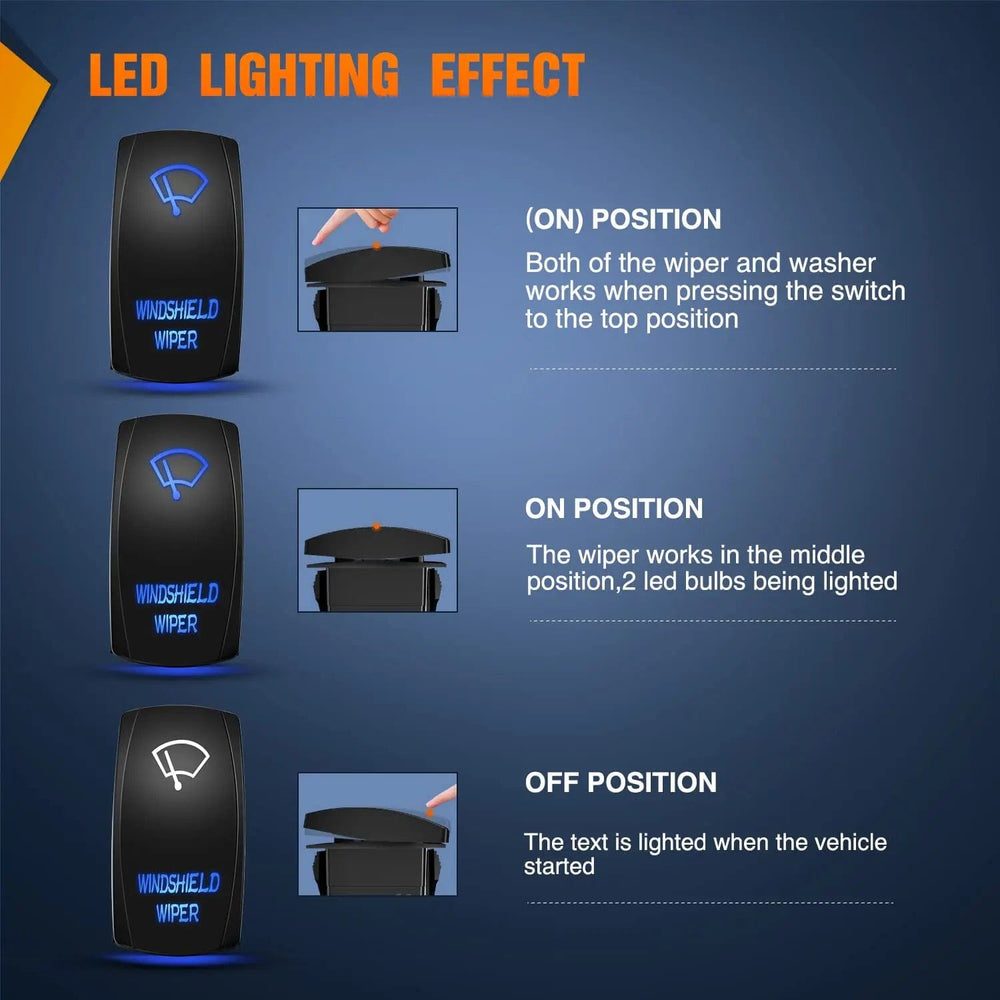

DPDT Switch: The DPDT switch is used for controlling windshield wiper and washer. It has 3 positions: ON (Momentary)-ON-OFF and the top position will return back to the middle position after being pressed. In the middle position: Wiper ON; The top position: Wiper and Washer ON.

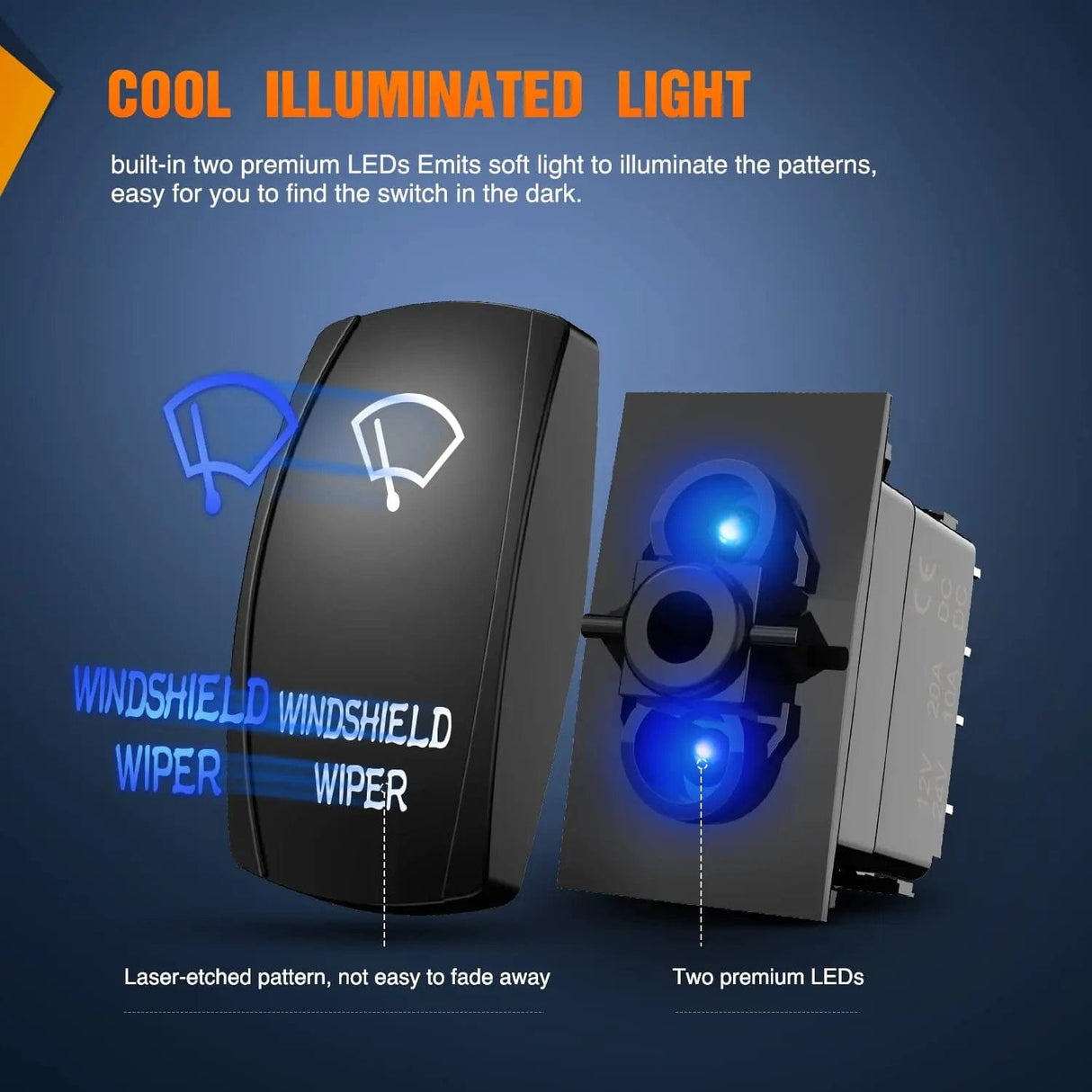

Cool illuminated light: built-in two premium LEDs Emits soft light to illuminate the patterns, easy for you to find the switch in the dark.
Sturdy and durable: made of high-quality plastic and well-conductive pins; laser-etched pattern, not easy to fade away.
Wide application: Suitable for all 12V/24V vehicles, such as cars, motorcycles, buses, boats, RVs, trailers, etc. Great replacement kit for the old windshield wiper and washer switch.
Package included: 1x 8 Pin Rocker Switch, 1x jumper wires set, 1x Diagram.

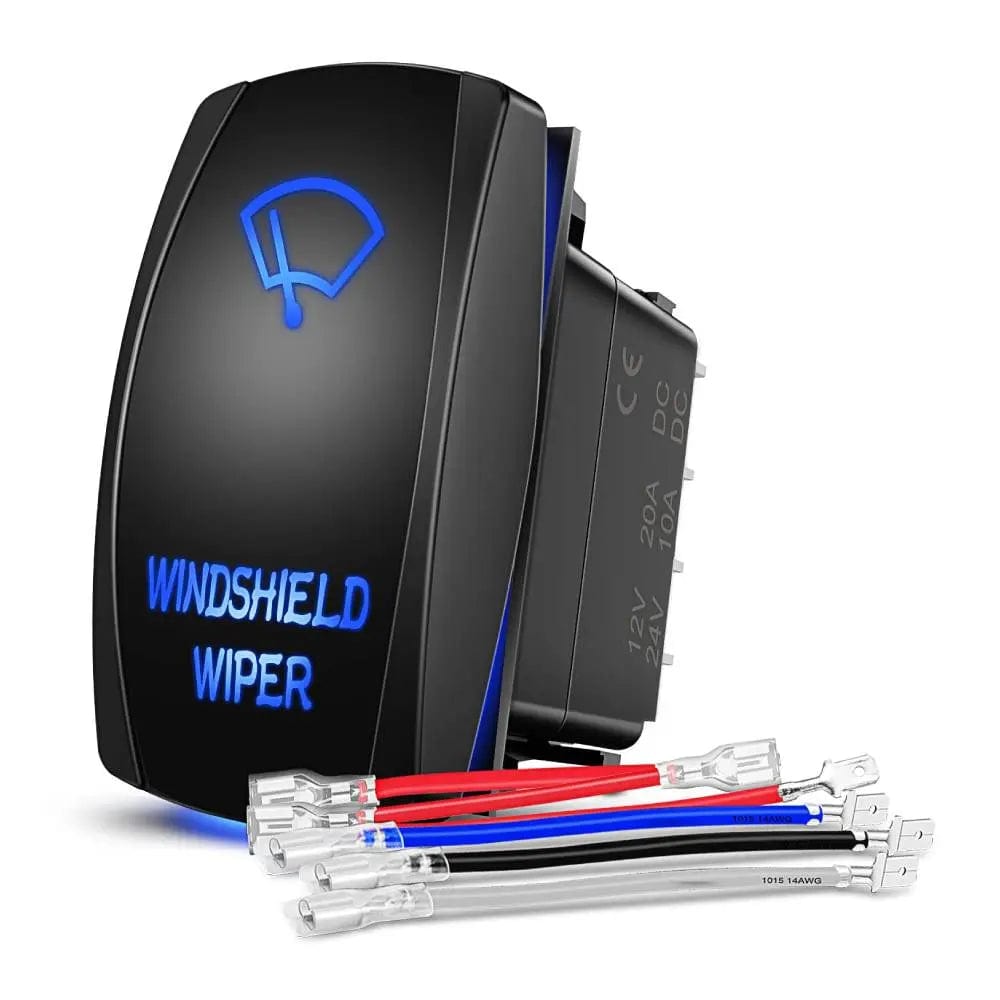

Rocker Switch with Jumper Wires Set
Material: Superior ABS+PC; Rated at 12V 20A and 24V 10A DC.
DPDT design (Double Pole Double Throw);
this (on)-on-off switch can control 2 loads.
Built-in 2 LEDs, laser-etched pattern.

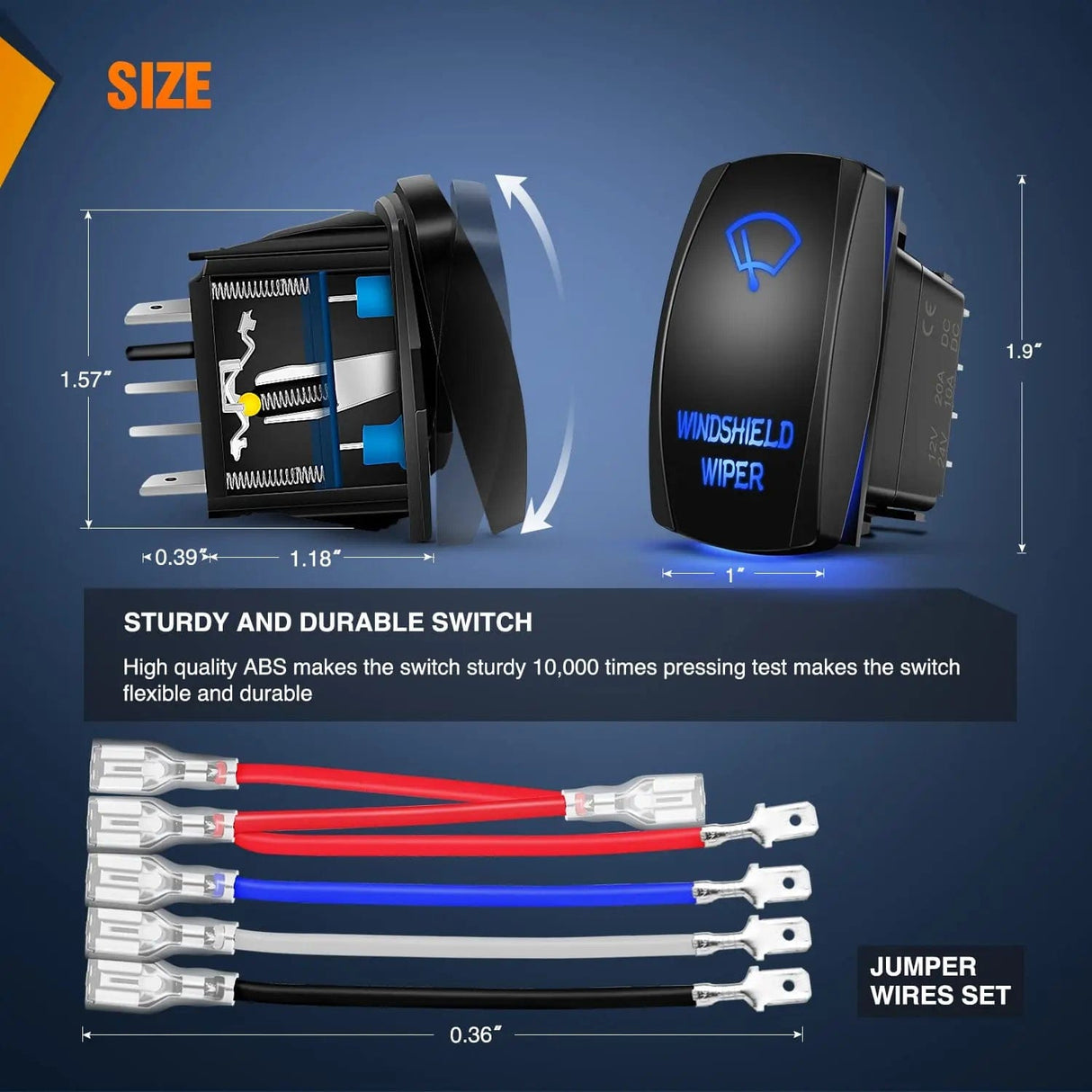

Mounting Hole Size: 1.43in(37mm) x 0.84in(21.3mm).
Applications:

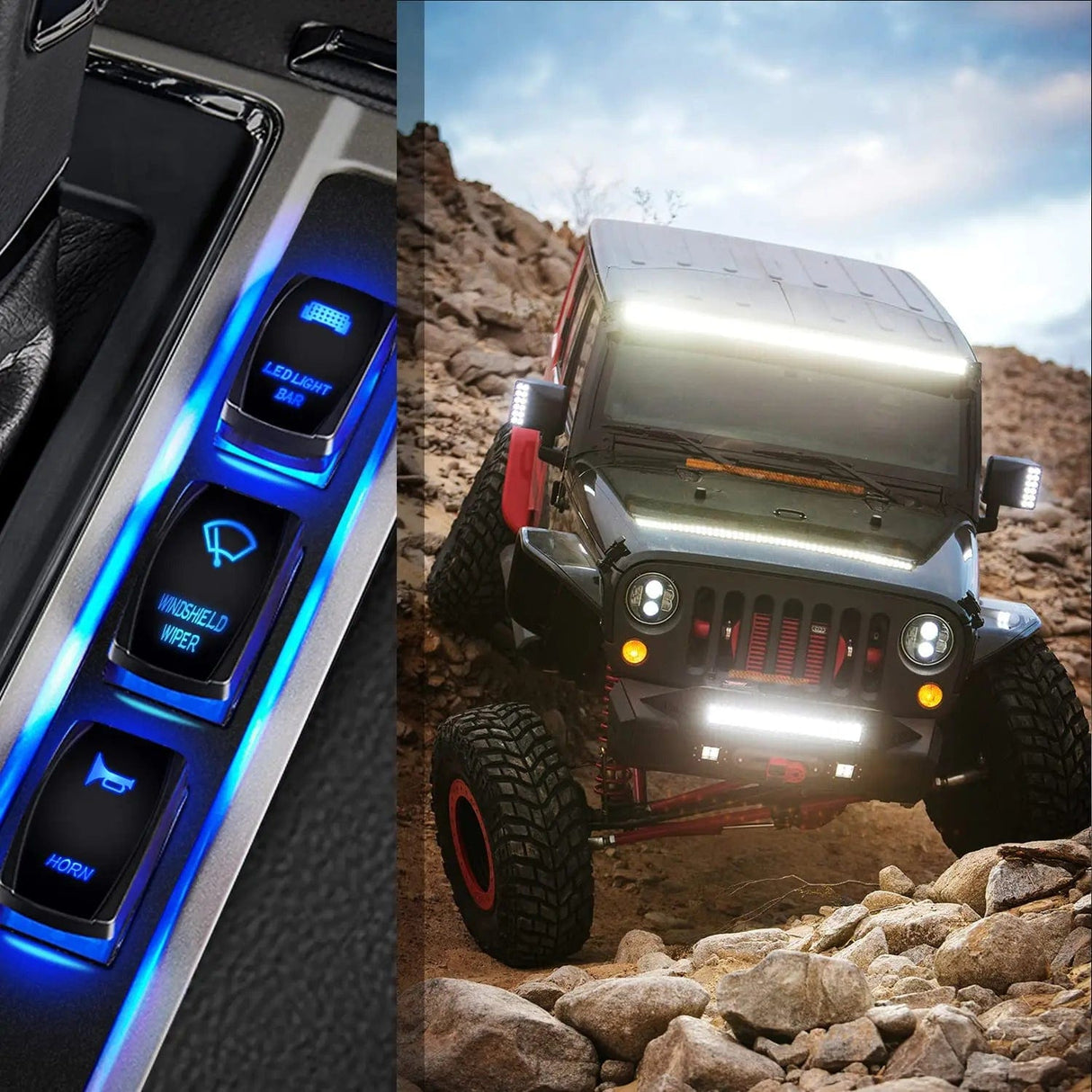

its for most cars, SUV, ATV, UTV, 4X4, motorcycle, truck, Jeep Wrangler, boat, yacht, and other off-road vehicles.
It can be used for controlling windshield wiper, LED light bar, LED work lights, driving lights, headlights, taillights, off road lights, boat light, etc.

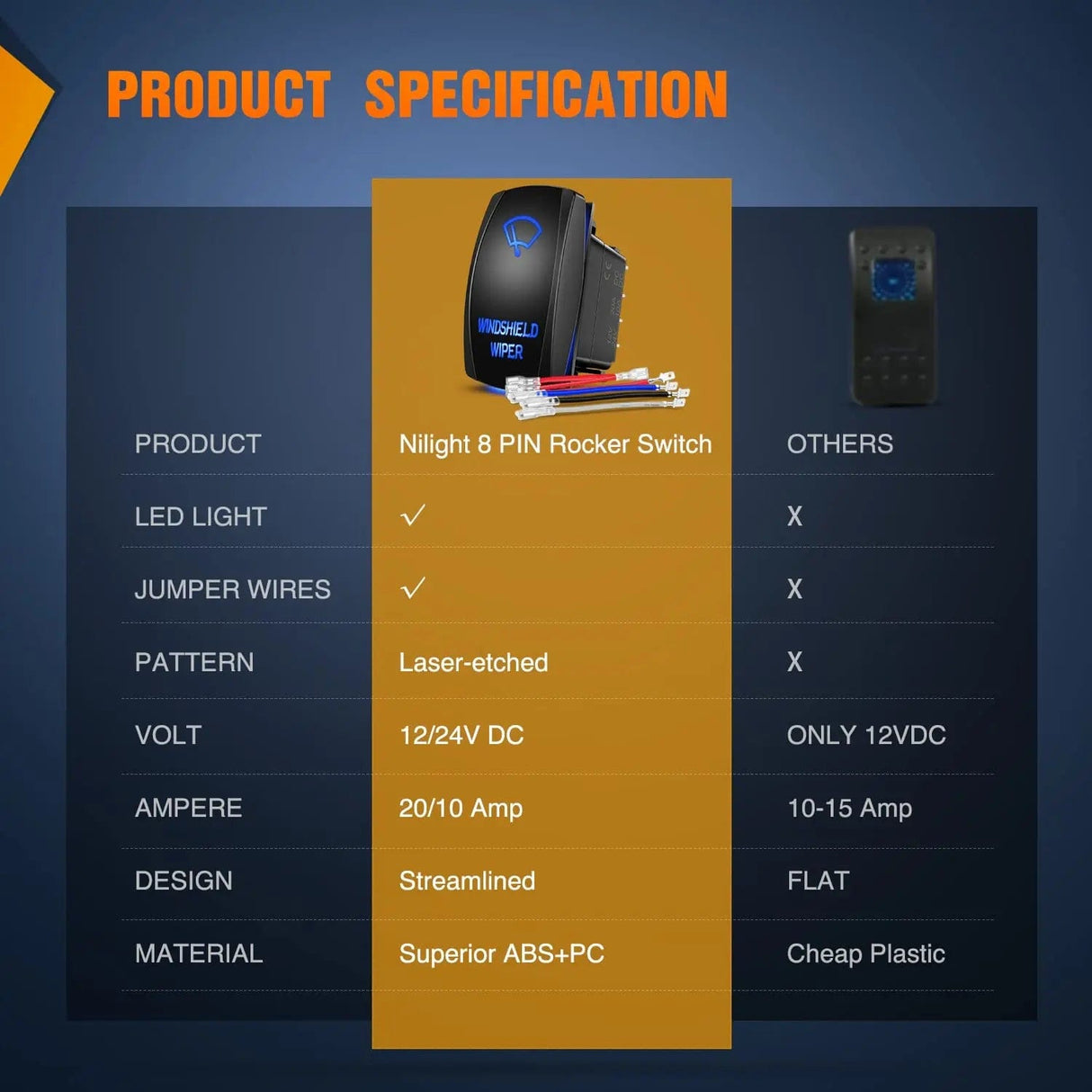

Specifications:
LED: Blue
Input voltage: 12V/24V DC
Switch Terminal: 8 PIN
Features
Durable In Use
The switch is very flexible for turning on or off. It can stand up to 10,000 times pressing under normal use.

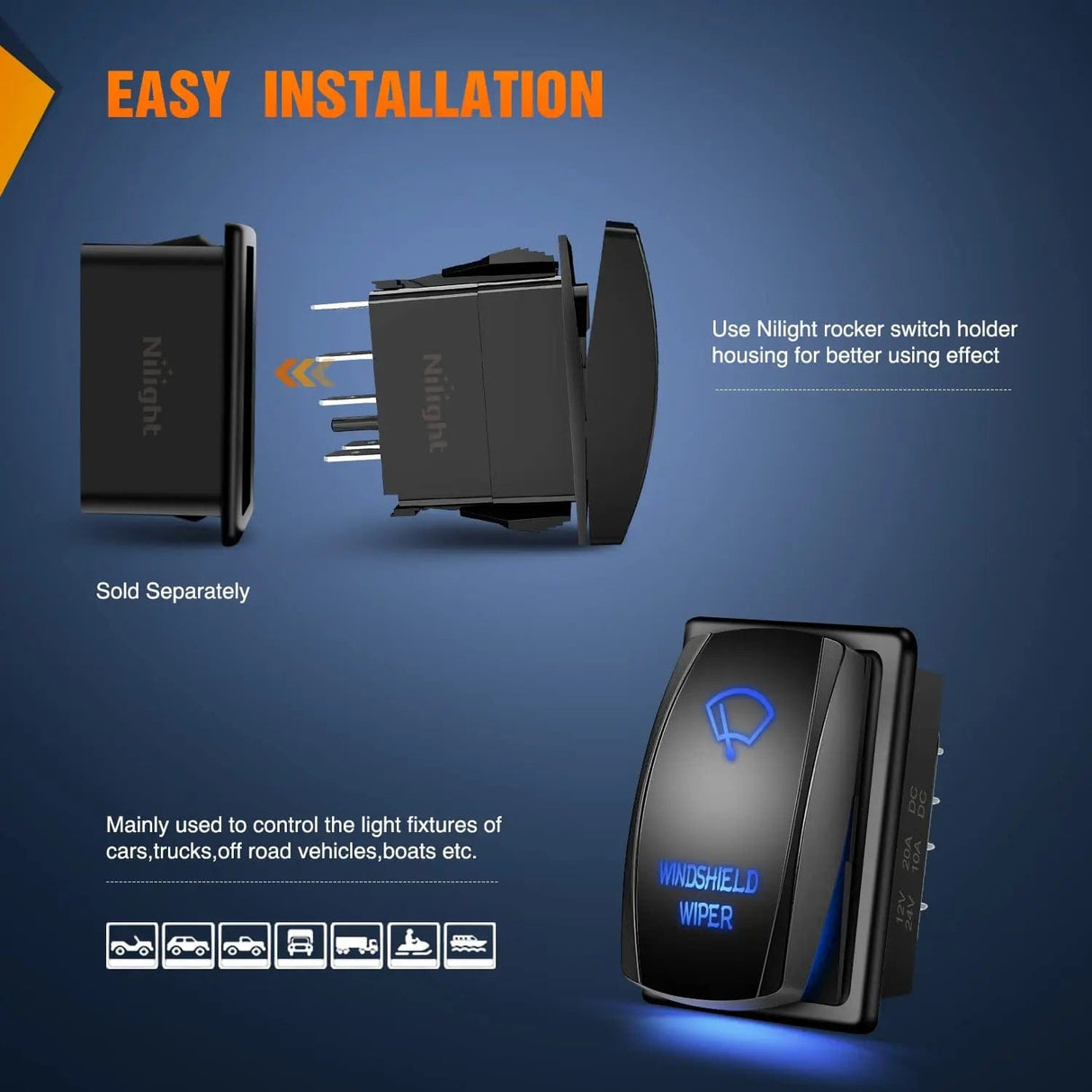

Easy Installation

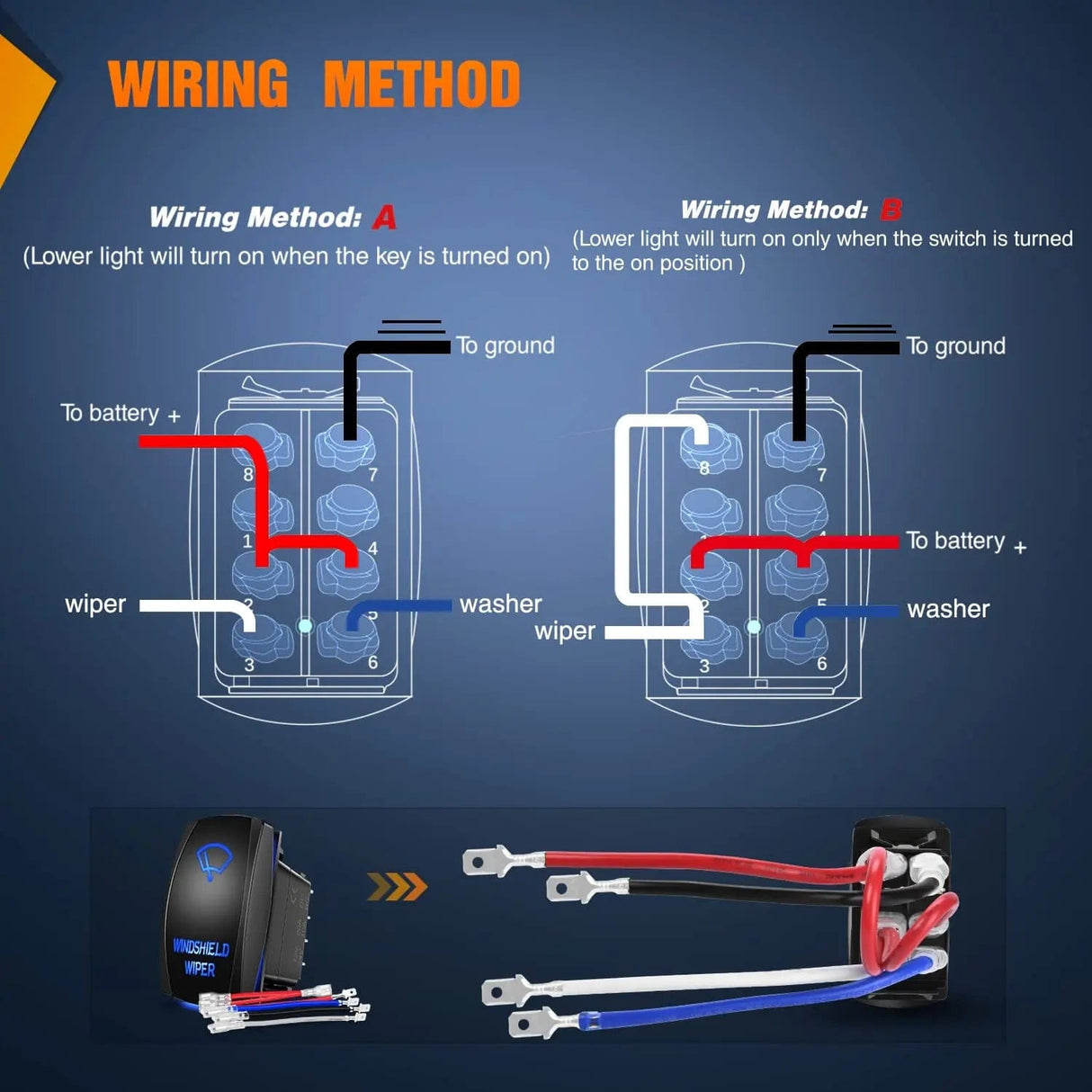

This switch is simple to install, product comes with a wiring diagram which makes it easy to wire the jumper wires in two seconds.

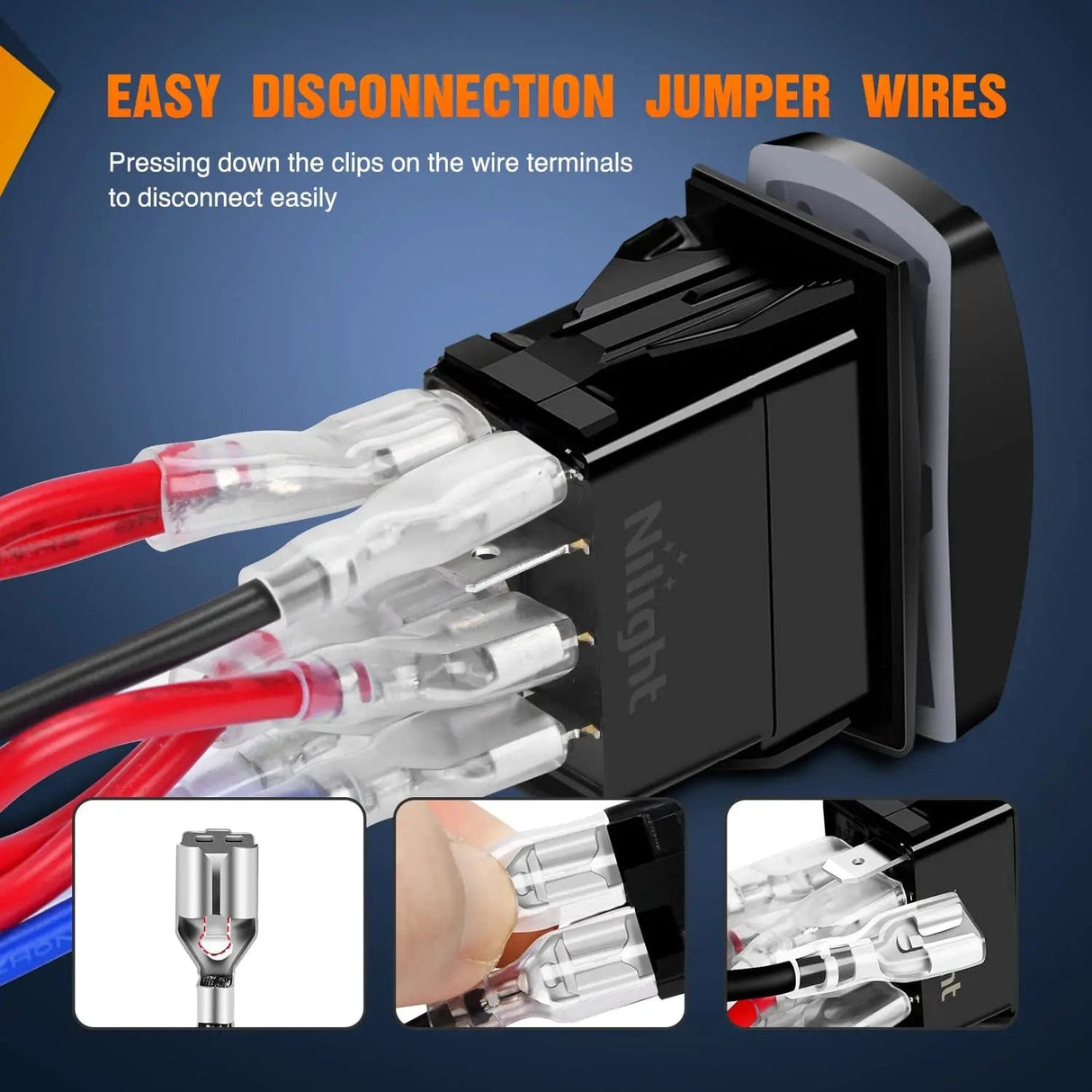

Premium Jumper Wires
The jumper wires are made of high-quality 14 gauge wires.
The Tin-plated copper terminals on the wire are of good stability, wear resistance, and corrosion resistance, which improves the oxidation resistance of copper and maintains its conductivity better.
Excellent Product
Made of ABS and PC of premium quality, the switch is impact and heat resistant. all patterns are laser etched directly onto the switch surface to ensure long lasting durability. Mainly used for controlling windshield wiper.
DPDT design, this (on)-on-off switch can control 2 loads.
Applications
Use on Marine Boat
Marine-grade Construction and IP65 Waterproof: It adopts a high-quality Aluminum panel, Scratch-proof, and Corrosion Resistant, with a rubber-sealed cap for all sockets dust-tight and debris-proof.
Wide Application
The product is suitable for controlling all electronic equipment on board. Available for upgrading headlights switch, fog light switch, wide light switch, car refrigerator switch, and car vacuum cleaner switch replacement. etc.
Car Electronic Device
product is suitable for UTVs and ATVs.
Installation is simple and can be mounted horizontally or vertically. You can even use it at -25°(Min) or 80°(max). Suitable for most DC 12V-24V cars, UTV/ATV, trucks, trailers, RV, caravans, buses, marine boats, yachts, airplanes, etc.
