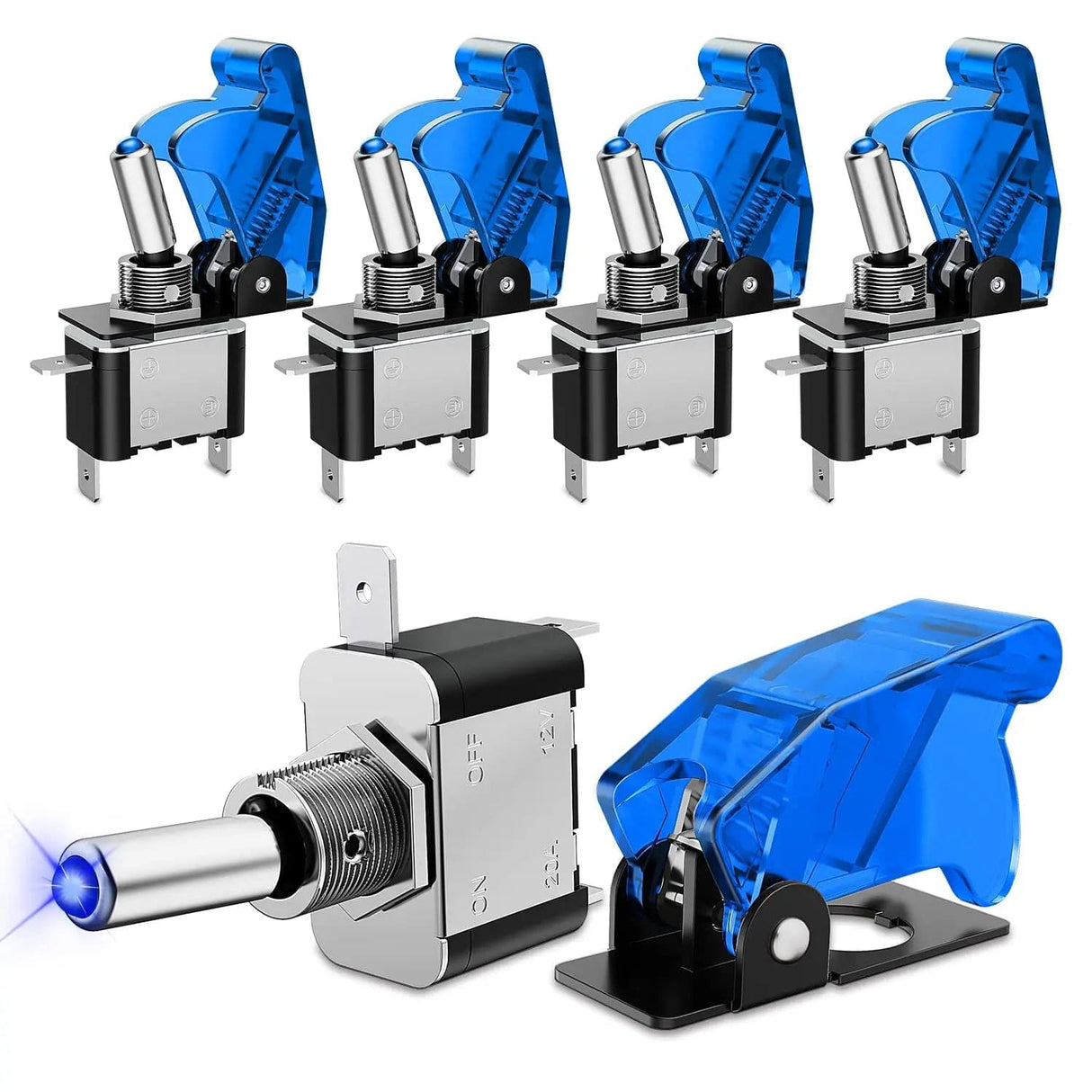

5Pcs 3Pin SPST ON-Off Blue LED Toggle Switch

Related Video

About this item

Function: Blue LED toggle switch with 3 pin blade type terminals, SPST design(single pole single throw), Rated at 20A 12V DC and designed with rocker style easy to turn on and off.

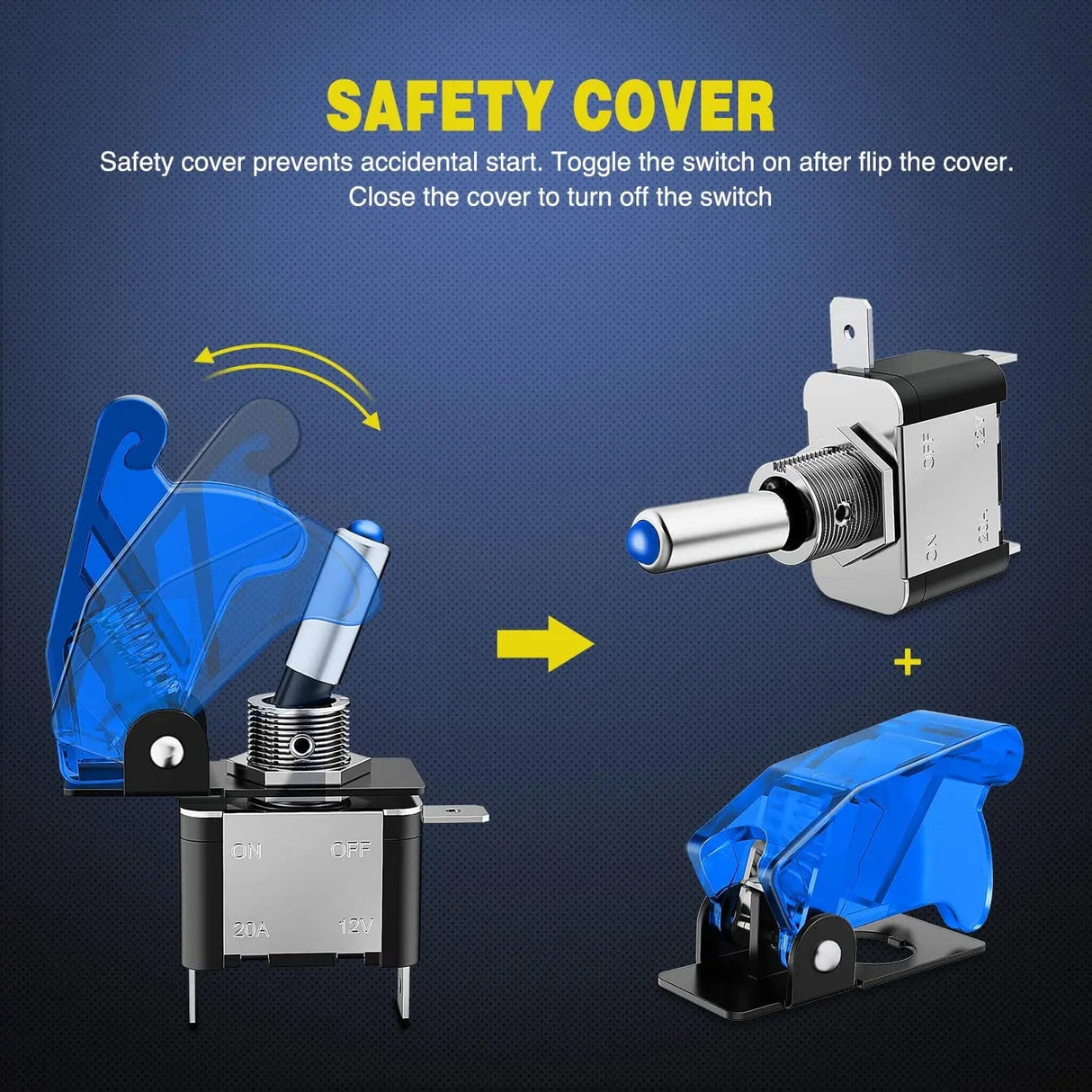

Safety cover: Transparent blue aircraft style safety cover prevents accidental start. The toggle switch can be turned on only after you flip the switch cover and toggle it to on position. And the switch get off automatically when you close the cover.

LED indicator: The red LED indicator will be illuminated when the switch is turned on.

Wide Application: Suitable for any 12V motorized vehicles such as cars, trucks, boats, atvs, UTVs, RVs, motorhomes, racecars or any off road vehicles.

Package Includes: 5 PCS blue LED toggle switches with safety covers, a wiring diagram

Easy Installation Toggle Switches:

Insert switches into 0.47inch (12mm) mounting hole, place cover on top, and tighten the top hex nut

Adjust the bottom hex nut to leave ample space between the switch body and the cover.

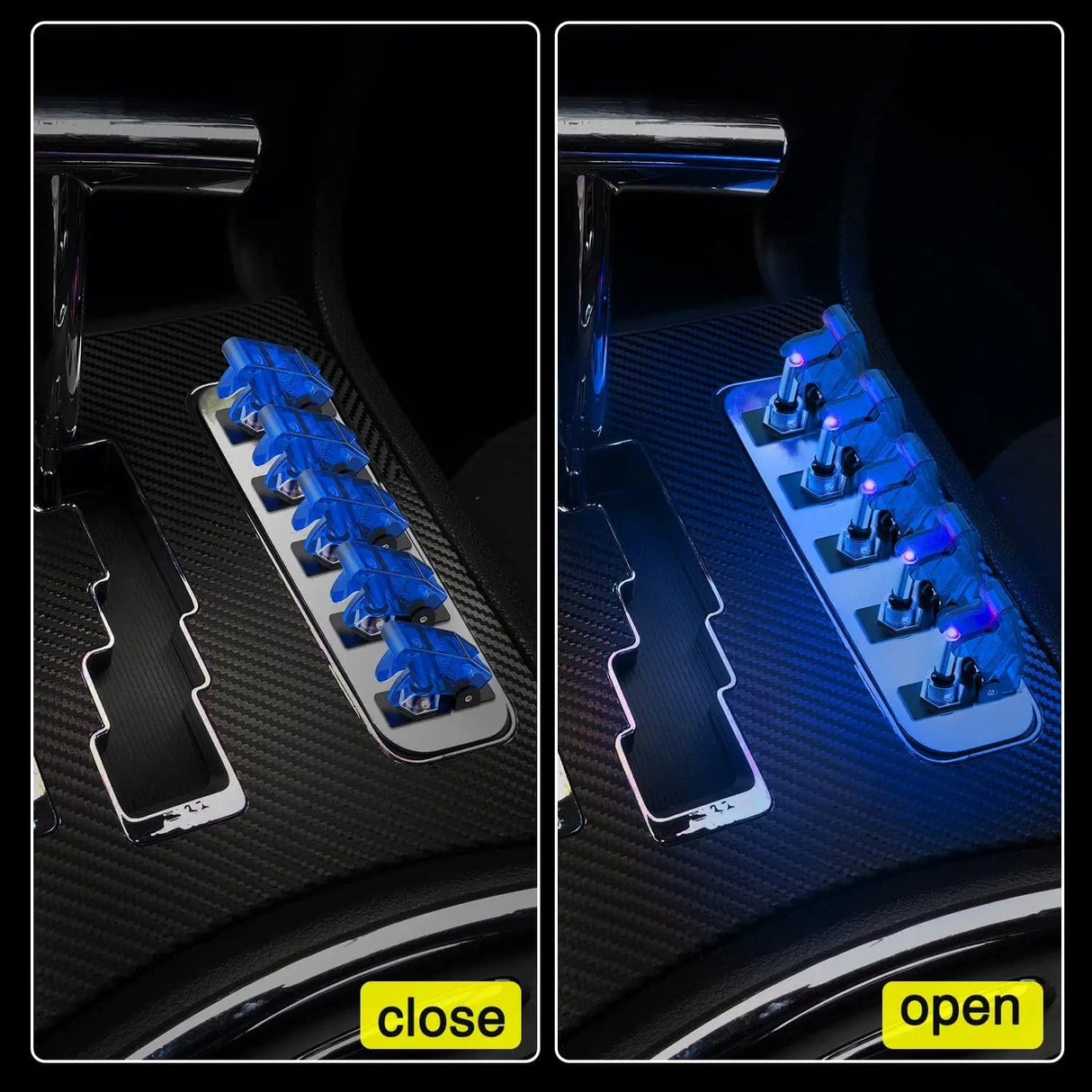

An open cover allows the switch to be flipped ON. Closing the cover forces the switch to the original OFF position. A spring-loaded mechanism holds the covers in either open or closed positions until a force is applied.

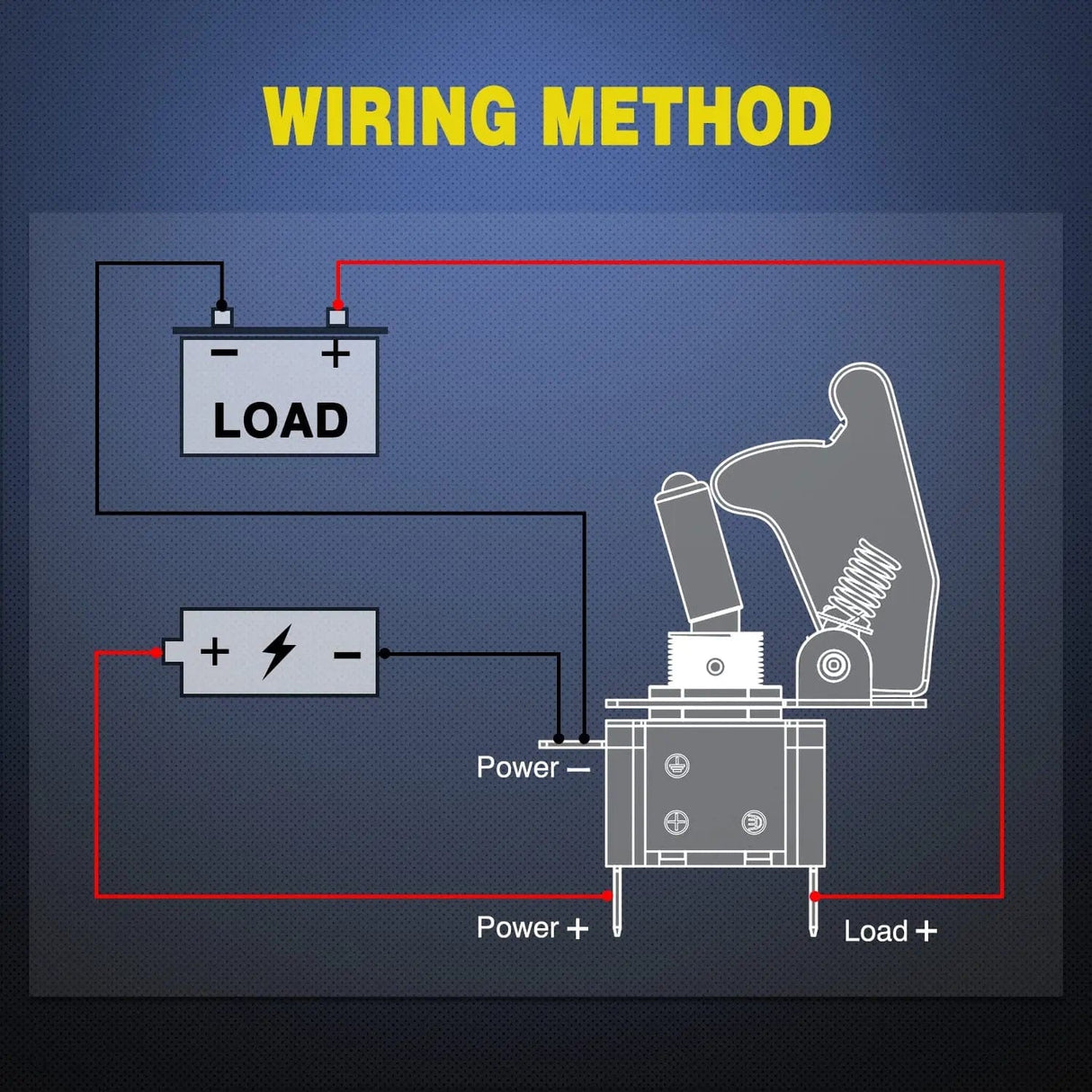

Connect load, power source, and ground to terminals.

SPST Toggle switch with safety cover

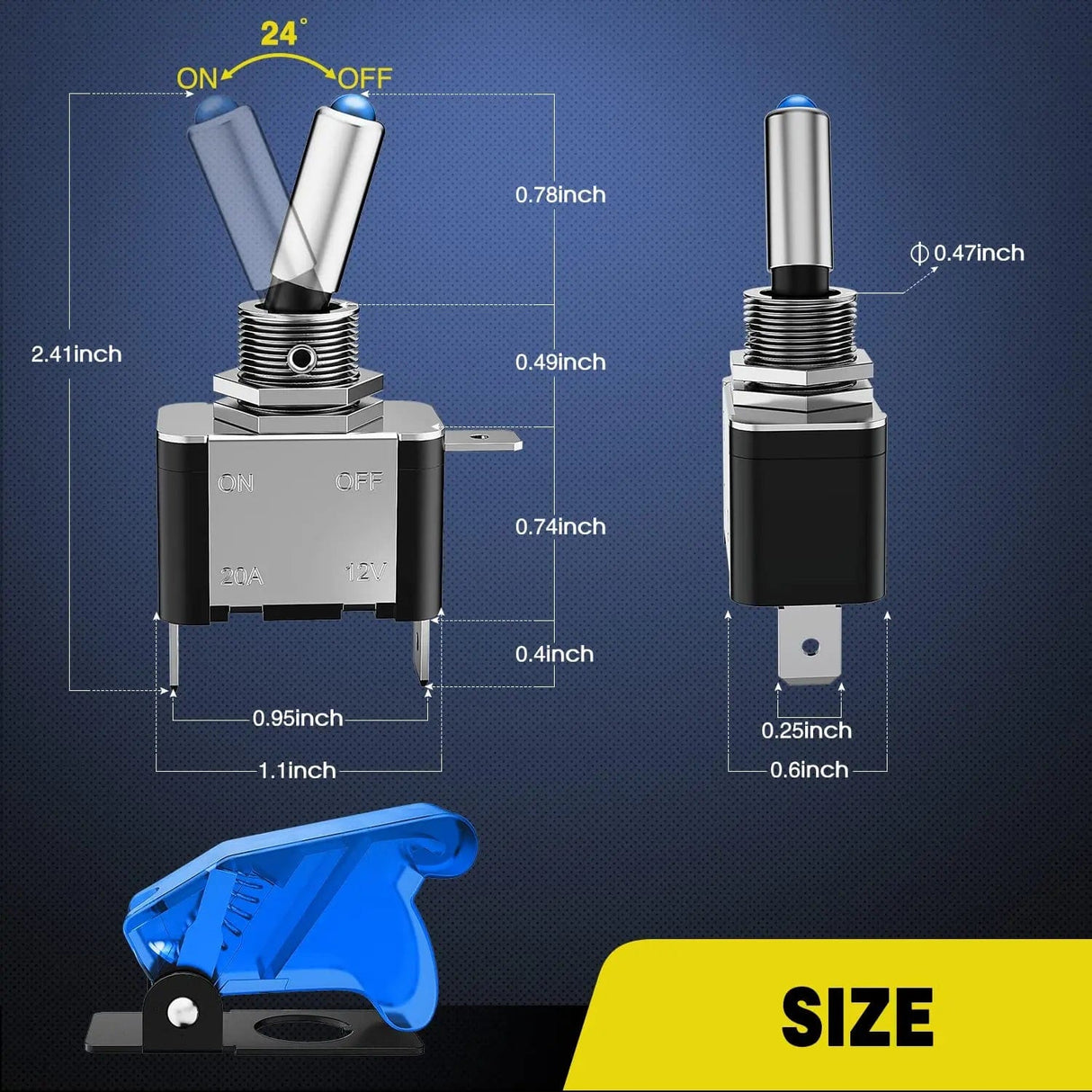

Size: 1.57 x 0.59 x 2.63 inches (40 x 15 x 67 mm)

Package includes: 5 pcs toggle switch, a wiring diagram

Feature

ON/OFF Toggle Switch

This 12v toggle switch is 3 Pin SPST ON-OFF design, the rating of this automotive toggle switch is 20A 12V.

Switch function: when you toggle the switch on, LEDs on and the accessory is on. When you flip the switch cover, LEDs off, accessory is off.

Safety cover

Transparent blue aircraft style safety cover prevents accidental start. Cover it when not in use. Safe and secure.

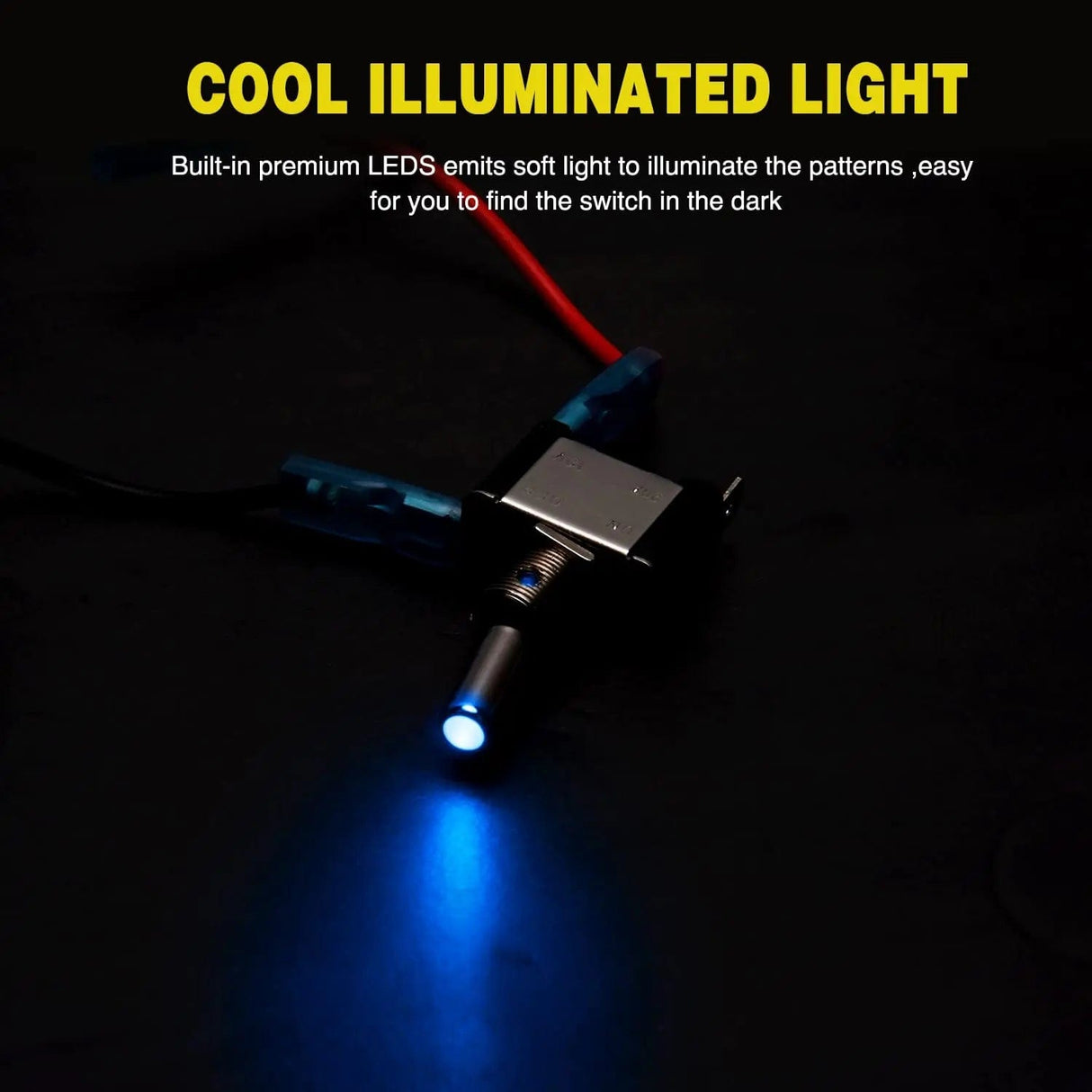

LED Indicator

The blue LED indicator will be illuminated when the switch is turned on. e.g. When the switch is turned on, the light is also turned on; Switch off, light off

SPST 3 terminal PIN

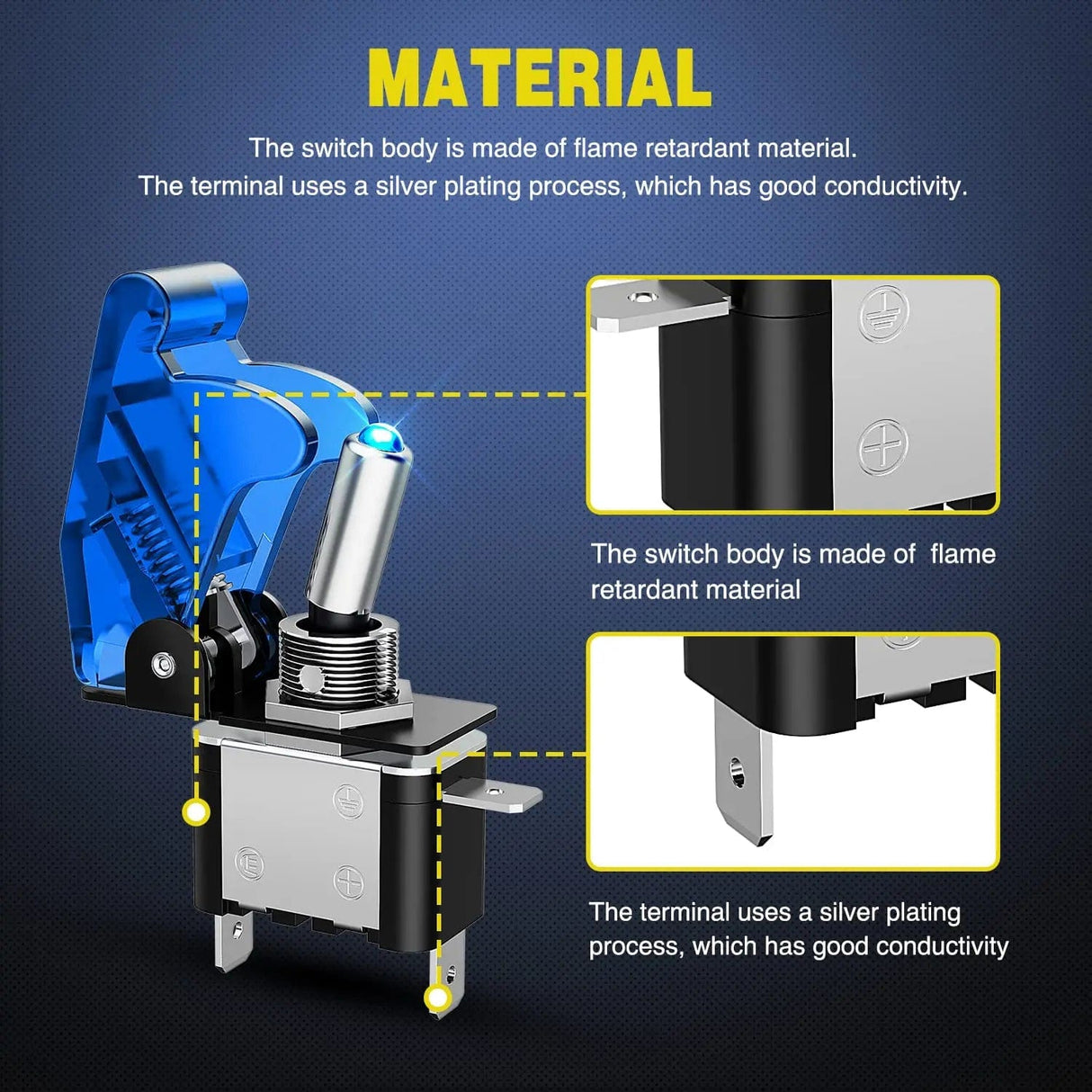

3 pin terminals is made of brass copper, the blade type terminals for quick connections of plug and play.
