16MM Raised Speaker Horn Momentary Push Button Switch
Description
Description
About this item
- Specification: Horn switch. Switch Rating: 5A/250AC, LED Voltage: 12V. Switch Combination: 1NO1NC；Mounting Hole Size: Φ16mm. Momentary ON/OFF function(Push: Horn honk, Release: Horn Stop working).
- Blue Indicator Light: On/off push button switch with blue indicator light, switch and LED ring light is separated, LED light can be on all the time or only on when the switch is in ON mode, it depends on how you wire it. come with 5 sets of wires included, you can connect the Round Rocker Switch to device more conveniently.
- Easy Installation: The momentary push button switch assembled with a tail plug wire harness. There is a clasp on the tail plug, make it easy to plug and unplug.
- Wide Application: Our switch can be used as a switch for various additional electric equipment, inside and outside the car. AC or DC enviroment. It is widely used to control LEDs and circuits on Car, RV, Marine Boats, Trucks, Households, Coffee Machine, Industrial Equipment and Medical Equipment. Suitable for almost any motorized vehicle of motor starting, power starting devices, and can also be an access control button.

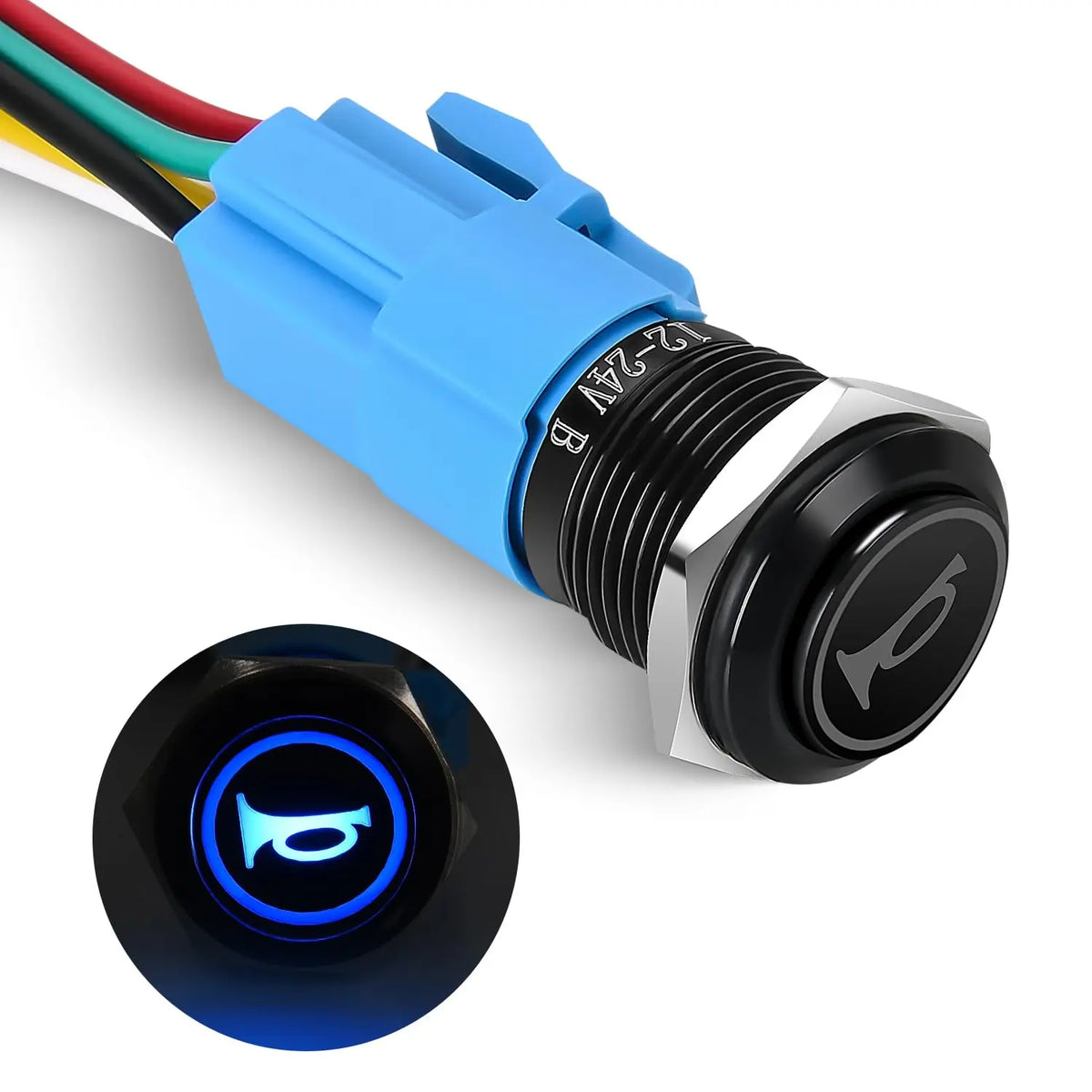

- Package Includes: 1 x 16mm Blue LED Metal Button Switch, 1 x tail plug wire harness, 1 x user manual, 2 Years Warranty by Nilight.
SPDT 16mm Blue Led Light Button Switches
Material: Made of metal material, resistant to high temperature, low temperature, and flame retardant;
Mounting Hole Size: 16mm ( 0.63in)
Protection Degree: IP65
Structure: INO 1NC
Switch Rating: 12VDC/2A, 24VDC/5A
Features
Blue indicator light
Switch and LED ring light is separated, LED light can be on all the time or only on when the switch is in ON mode, it depends on how you wire it
Easy Installation
Mounting hole diameter:16mm.
Each switch will come with a set of wires & clasp which makes the connection become more convenient.
High Quality
LED Voltage: 12V-24W; Pins: 5
Good brass makes the switch reflect more sensitive , mechanical life for 500,000 cycles
IP65 Waterproof Rating
High quality metal material& waterproof protection can be used in a wet environment, no ware of water anymore, which can be used outdoor and rainy day.
Multiple Connection Way
Normally Open Wiring
1. LED light(Horn Pattern) only illuminate when switch is ON;
2. Press button, LED light illuminate and load works. Release button, LED light off and the load stop working.
Normally Closed Wiring
1. LED light(Horn Pattern) always illuminate in both "ON"&"OFF" status
2. LED Light illuminate, press button, load works. Release button, load stop working and the LED Light still illuminates. Help you find the switch in the dark.
Momentary Horn Swtich
