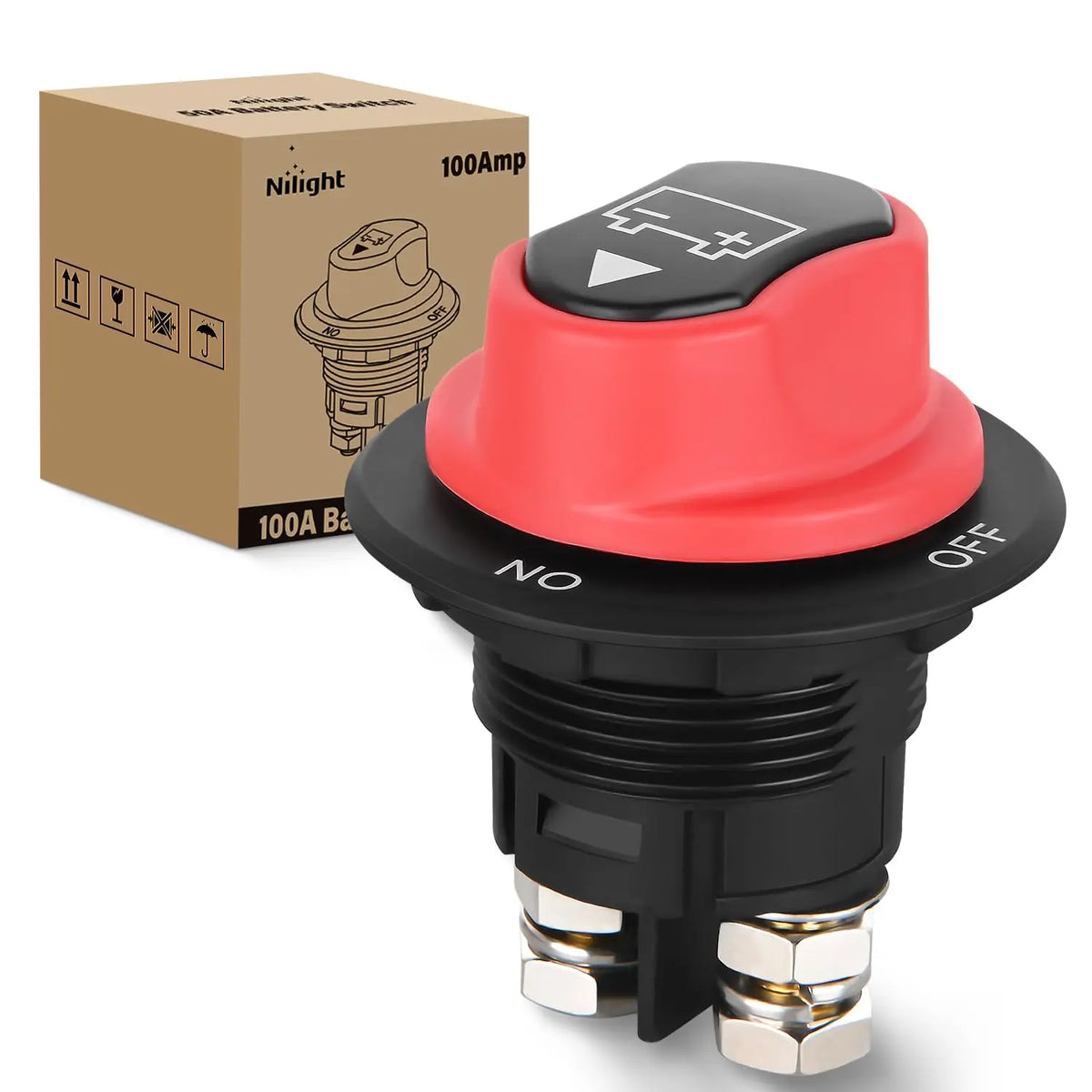

100A ON/OFF Disconnetc Battery Switch
Description
Description
About this item
Heavy Duty: ABS plastic housing and premium copper terminal, durable made for safety use, not easy to aging and abrasion resistant, to ensure maximum strength and durability for long lasting usage.
Purpose: eliminate any power from the battery when vehicle or boat is not in use, disconnects the battery safely. Avoid battery drain off.
Operation: On-Off, 2 positions, Continuous Rating: 100Amps 32VDC Max. Intermittent Rating: 150Amps Cranking Rating: 500 Amps 5 sec.
Compatible: used for 12 - 32VDC systems to isolate and secure the electrical system, can stand alone or be locked together with other switch. Widely used for cars, marine boats, RVs, campers, travel trailers, trucks, ATVs, UTVs, battery banks and other devices.
Package include: 1 x 100A battery disconnect switch with wiring diagram. 2 Year Warranty by Nilight.
12-32VDC 100A Battery Disconnect switch
On-Off, 2 positions
Continuous Rating: 100Amps 32VDC Max. Intermittent Rating: 150Amps Cranking Rating: 500 Amps 5 sec.
Termination Stud Size: M6 x P1.0
Easy to Use, turning it on powers up your system, turning it off cuts the power.
This universal switch is suitable not just for cars, RVs, trucks, and marine boats but also for various electrical equipment, like flashing lights, chassis lights, fog lights, and dome lights.
Features
Single on-off switch
Clear on/off switch position indication. This battery disconnect switch features on-off switch knob; Switch on = Power; Switch off = No power.
Heay Duty Plastic Material
The cover made of PBT material and the name plate made of ABS material. Ensuring long-lasting pernaformance and reliability.
Easy operation use
Disconnect and reconnect battery by one simple knob. Disconnects the battery safely to eliminate power draw of battery when vehicle is not in use.
Copper Terminal Post
Copper with stainless steel terminals for improved continuity. Rust and corrosion resistant.
Universal for Car, Vehicle, RV and Boat, etc.
Wiring Options
Product Specification
| Continuous Rating: | 100Amps 32VDC Max. |
| Intermittent Rating: | 150Amps |
| Cranking Rating: | 500 Amps 5 sec. |
| Contact Resistance: | 50m ohm Max |
| Insulation Resistance: | DC 500V 100M ohm Min |
| Dielectric Strength: | AC 1000V 1 minute, DC 2000V 1 minute |
| Operation Temperature: | -30℃ ～+60℃ |
| Switch Function: | M6xP1.0 |
