Trailer Light Submersible Low Profile Rectangular LED Trailer Light Kit (Pair)
Trailer Light Submersible Low Profile Rectangular LED Trailer Light Kit (Pair)
Trailer Light Submersible Low Profile Rectangular LED Trailer Light Kit (Pair)
Trailer Light Submersible Low Profile Rectangular LED Trailer Light Kit (Pair)
Trailer Light Submersible Low Profile Rectangular LED Trailer Light Kit (Pair)
Trailer Light Submersible Low Profile Rectangular LED Trailer Light Kit (Pair)
Trailer Light Submersible Low Profile Rectangular LED Trailer Light Kit (Pair)
Trailer Light Submersible Low Profile Rectangular LED Trailer Light Kit (Pair)

Submersible Low Profile Rectangular LED Trailer Light Kit (Pair)

$35.99
{price}% OFF
30 Days Returns

Nilight will accept returns for up to 30 days from the date of purchase. Please include all original items in your return shipment. Incomplete returns may not be eligible for a full refund. Returns within 30 days or purchase will receive a full refund for the purchase price of the product.

No returns will be accepted after 30 days. Nilight will provide a return shipping label upon request.

Non-contiguous US residents and International residents – including Alaska, Hawaii, Canada and Mexico – are responsible for return shipping charges. Refunds will be applied to the original payment method that was used. Refunds are generally issued within 5-10 business days of Nilight receiving all returned goods. Your bank may require additional processing time to reflect the refund in your account.

Black Friday Deals

12% OFF For All Items;

15% OFF For Orders Above $229;

18% OFF For Orders Above $399

Check All Categories >>

Free Delivery|Order in the next [hour] to get it between [date_start] and [date_end]
  • Lowest Price
    Guarantee

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Details

Reviews

Free Shipping

2024 Product Guide

Related Video


About this item

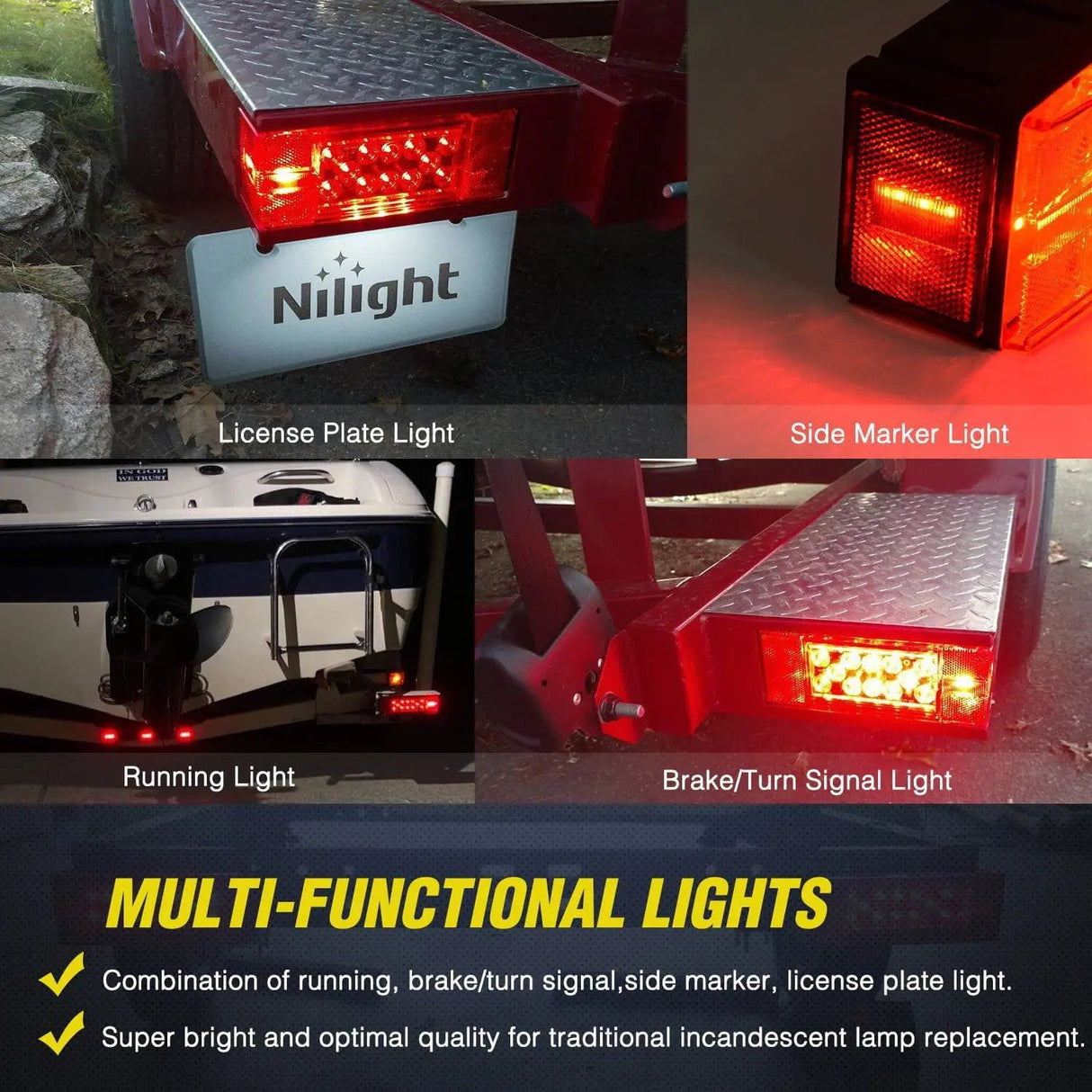

  • Multi-functions: Combined functions of the tail, brake/turn signals, side marker, and license plate light. Perfect for 12V DC vehicles with a maximum width of 80 inches. Such as most trailers, boats, trucks, RVs, Marine, Pickups, campers, tractors, etc
  • Excellent Brightness: Left lamp has 27 diodes including 9 diodes for license plate light, and the right lamp has 12 diodes. Quality LEDs draw less amperage but output optimal brightness, improving great visibility and extending a longer lifetime than the incandescent lamp. DOT Compliance to ensure your 100% safety
  • Entirely Submersible: The inside LEDs and the circuit board are fully waterproof and sealed to work underwater perfectly without electric short risk. The light housing also features water drainage for added protection

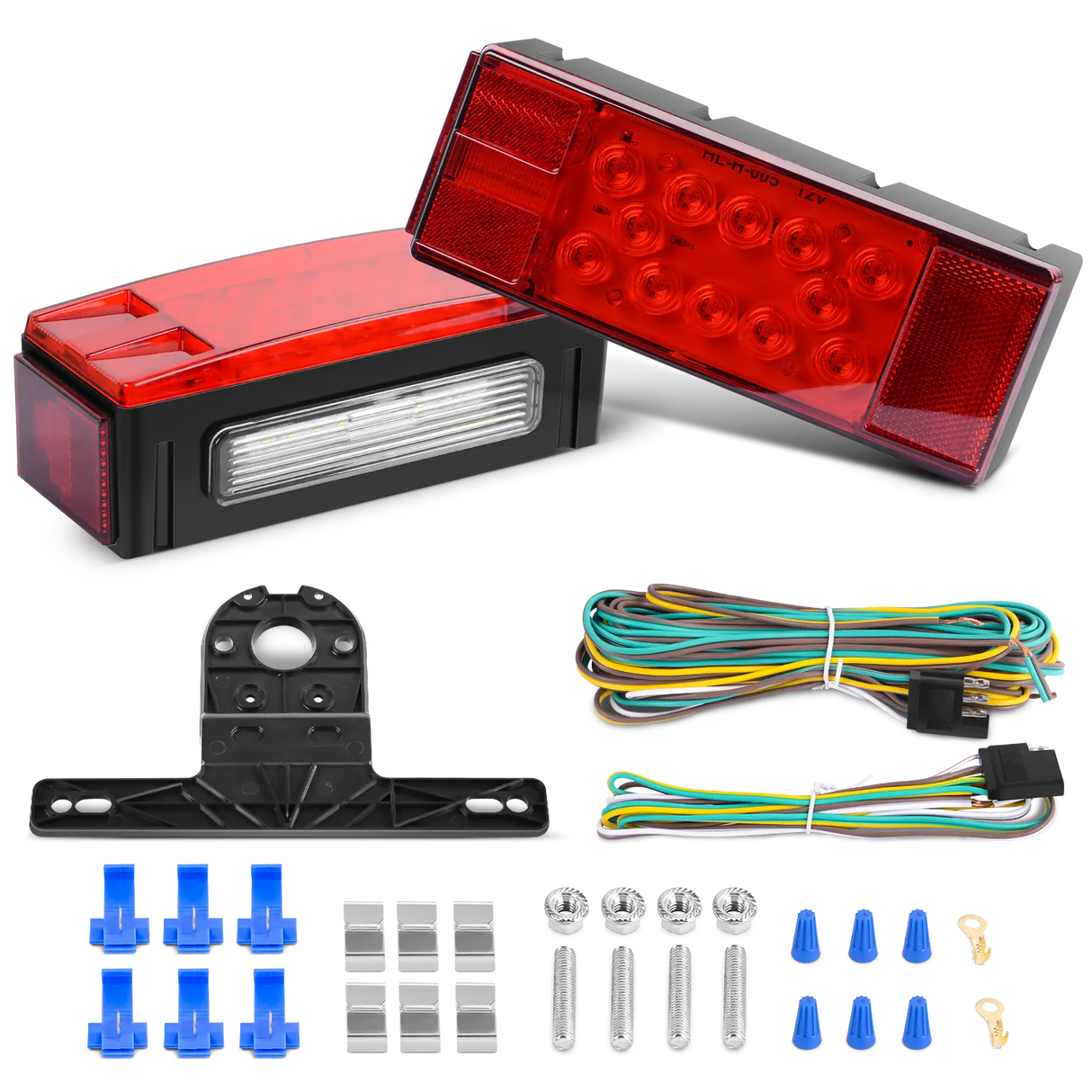

  • All-in-one kit: Comes with everything for your straightforward installation of the light, including lights, license plate bracket, 25ft length trailer wiring harness, and the different types of stainless steel mounting hardware
  • Easy Installation: For light mounting: Lamp with license plate light on the left side, the other on the right side. For wiring routing: Please see Picture 5 for instructions. For wiring connection: Just color to color, white to the ground (vehicle frame). For hardware, you might need to use, please see Pic 8 for instruction
  • Fit Type: Universal

Submersible Rectangular Trailer Light Kit

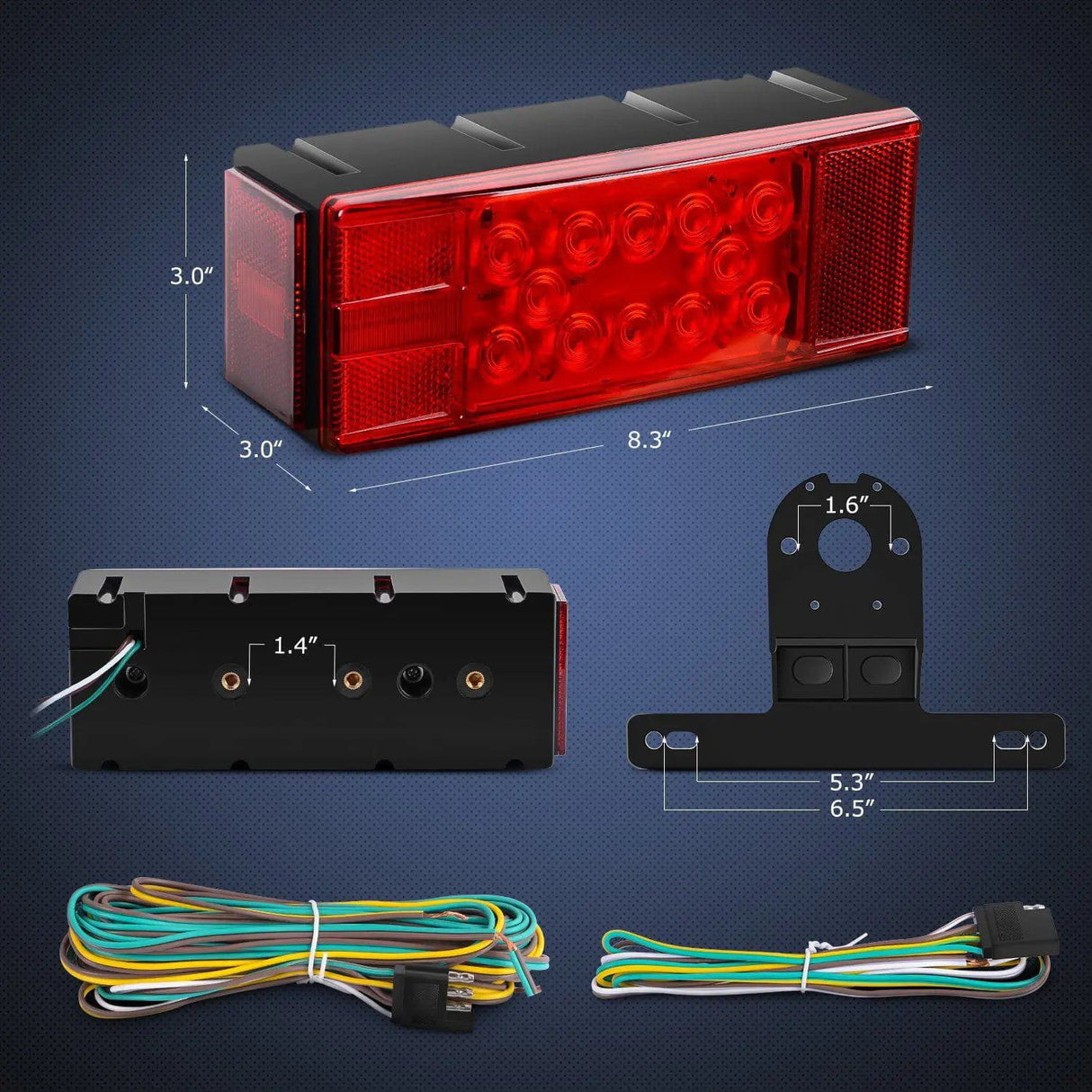

Specifications:

Light dimension: 8.3” x 3.0” x 3.0”

Mounting distance: 2”

Mounting stud diameter/ light mounting hole size: 0.23” Left Lamp: 27 LED diodes, Right Lamp: 12 LED diodes

Working Voltage: 12V DC

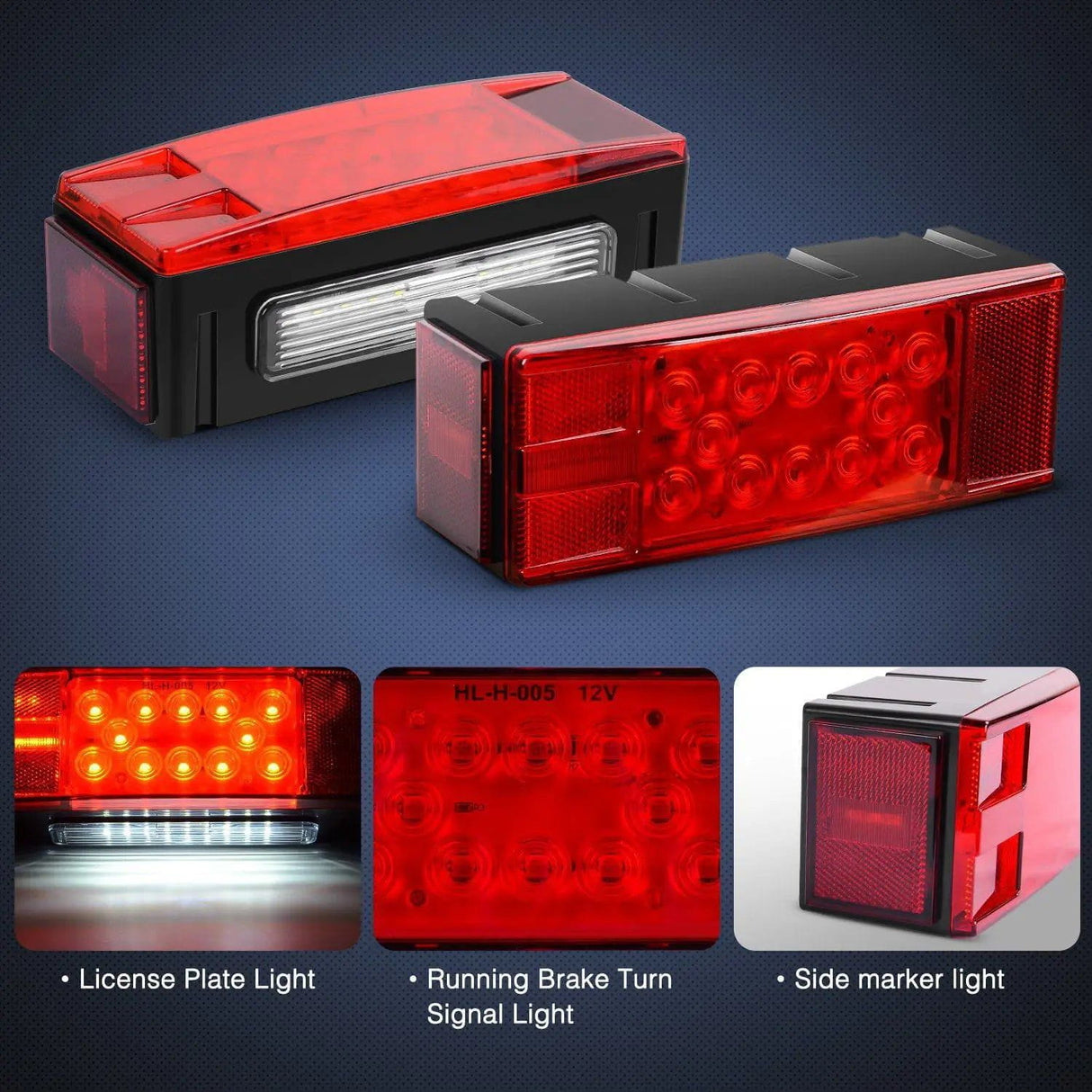

Key Features


Submersible Rectangular Trailer Light Kit


Left Light

Functions tail light, side marker light, stop/left turn signals light, license plate light.

Submersible Rectangular Trailer Light Kit


Right Light

Functions tail light, side marker light, stop /right turn signals light.

Submersible Rectangular Trailer Light Kit


Stop & Turn Light

High brightness red Light

Submersible Rectangular Trailer Light Kit


Running Light

Low brightness red tail light, red side marker light, white license plate light


Accessories

Submersible Rectangular Trailer Light Kit


License plate Bracket

Install the license plate at the left lamp that has a license plate light at the bottom.

Submersible Rectangular Trailer Light Kit


Trailer Wiring Harness

Comes with 2 sets of 4-pin trailer wiring harnesses, 21.65 feet plus 3.93 feet.

Submersible Rectangular Trailer Light Kit

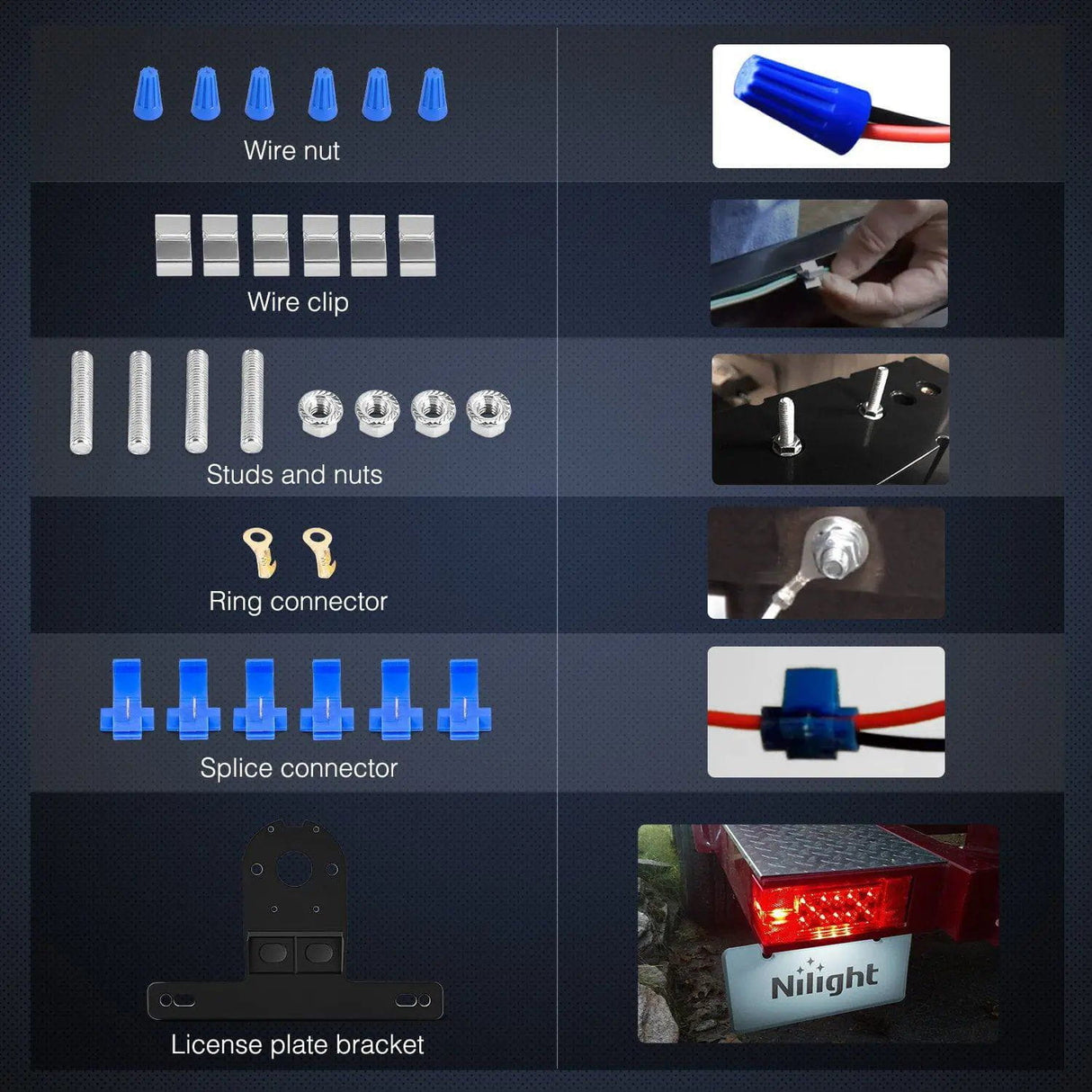

Handy Hardware Pack

Comes with a wire nut, wire clip, mounting stud and nuts, ring connectors, and splice connectors for your use. Find usage instructions from Pic 7 of the product.

Application

Submersible Rectangular Trailer Light Kit

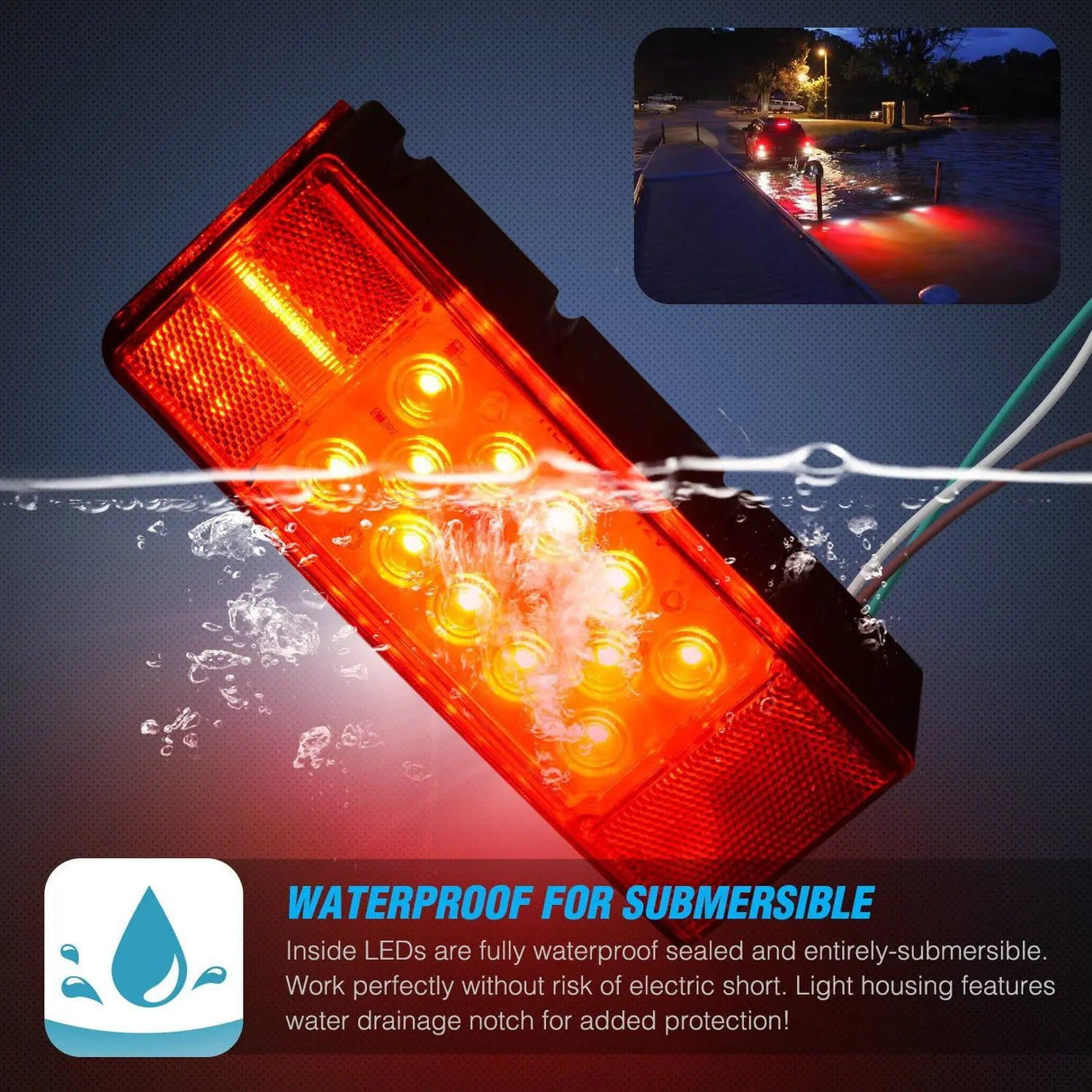

Entirely Submersible

Fully waterproof sealed for the inside LEDs and circuit board. Work underwater perfectly without electric short risk. The light housing also features water drainage for added protection.

Submersible Rectangular Trailer Light Kit

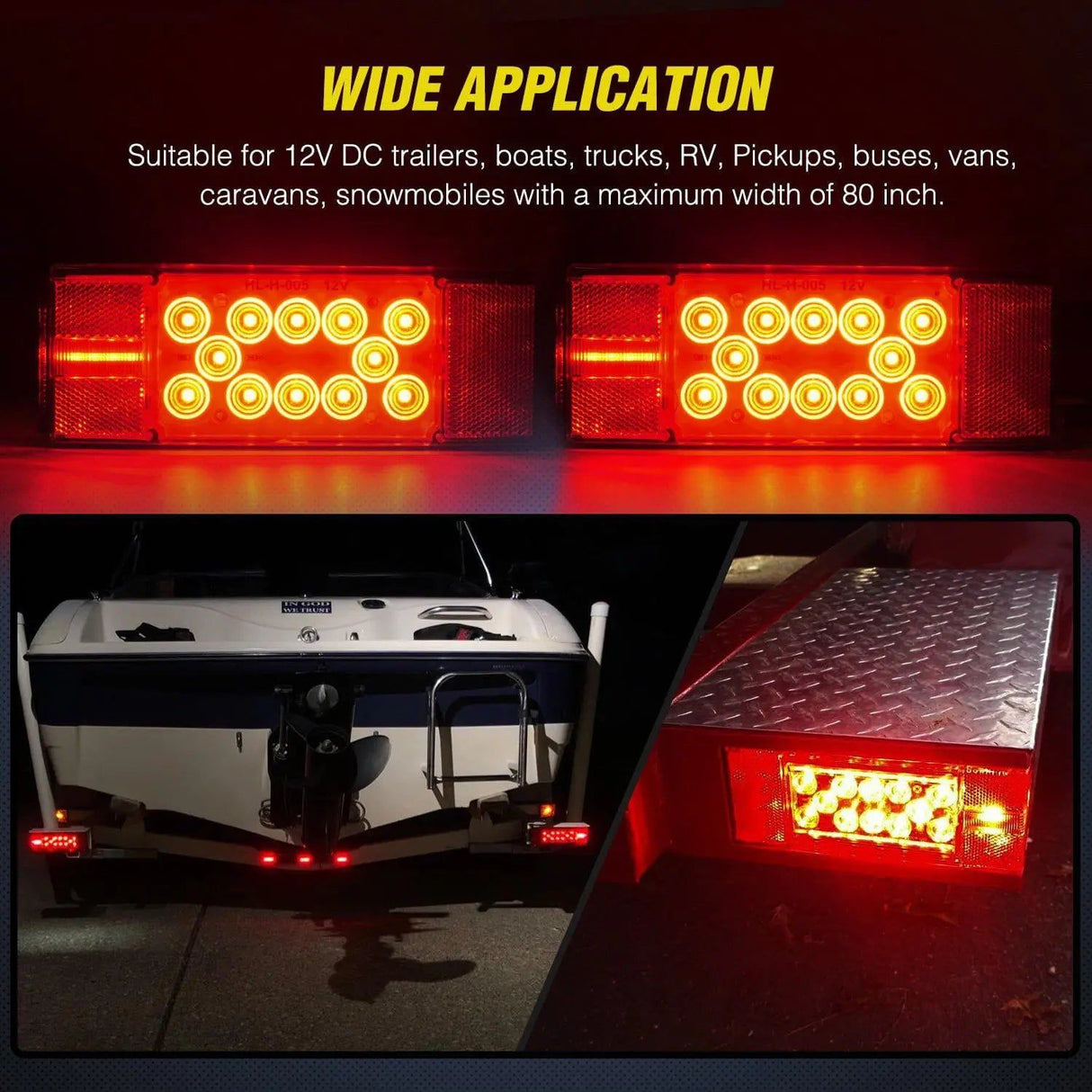

Wide Application

Fit for 12V DC vehicles with a maximum width of 80 inches. Such as most trailers, boats, trucks, RVs, Marine, Pickups, campers, tractors, etc

Submersible Rectangular Trailer Light Kit

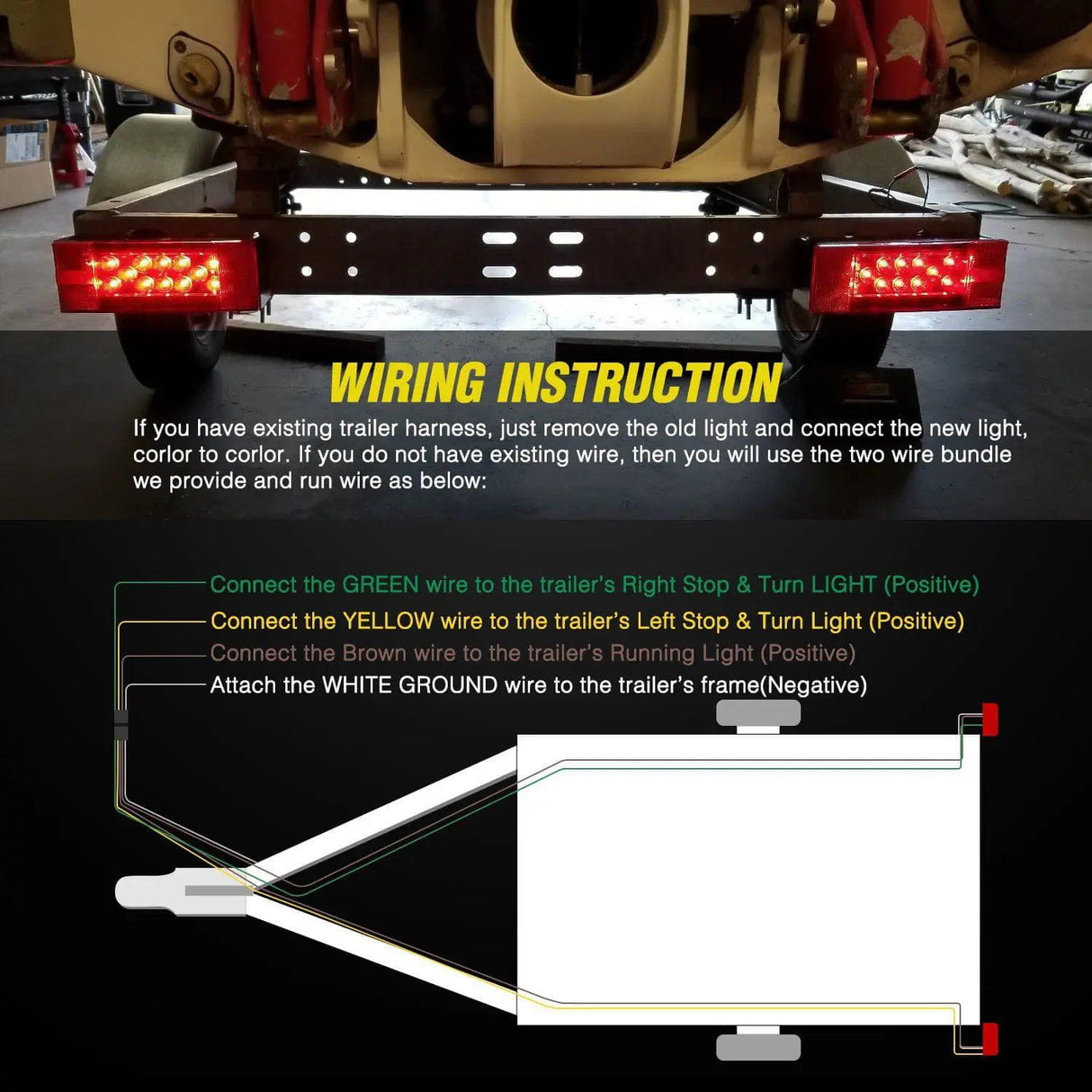

Wire Connection

Brown wire of light to vehicle’s running lights wire; Yellow wire of the left lamp to vehicle’s left stop & turn light wire; Green wire of the right lamp to vehicle’s right stop & turn light wire; White ground wire of both lights to the vehicle’s frame
