5Gang Blue Rocker Switch Panel w/ Dual USB Voltmeter Fuse
5Gang Blue Rocker Switch Panel w/ Dual USB Voltmeter Fuse is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
International Shipping
Nilight is shipping worldwide covering North and South America, Europe, Asia, Africa, Oceania and more.
We employ the services of major, trusted international carriers to ensure your package arrives at your destination safely.
U.S. domestic orders are shipped from our USA warehouse for the fastest delivery times but exceptions may occur.
Shipping Time
U.S. domestic shipping: about 3-7 Working Days
International shipping: about 8-15 working days
A standard processing time of up to 48 hours is required before the order is shipped out.
Due to challenges posed by the pandemic, our carrier is temporarily experiencing shipping delays, which may delay your delivery. We are always work to get your package to you as quickly and safely as possible.
Shipping Cost
We offer free shipping on all of our products to customers in the Continental U.S. when orders over $19.99. Customers in other regions need to pay additional shipping costs(Specific amount please kindly refer to your checkout page).
Tracking
Your tracking number will be sent in email immediately after we ship the order out. You may follow the link in the email to check the estimated arrival time of your order.
(Please note that tracking information will only be updated online in 1 working day after your order has been shipped.)
5Gang Blue Rocker Switch Panel w/ Dual USB Voltmeter Fuse
Description
Description
Related Video
About this item

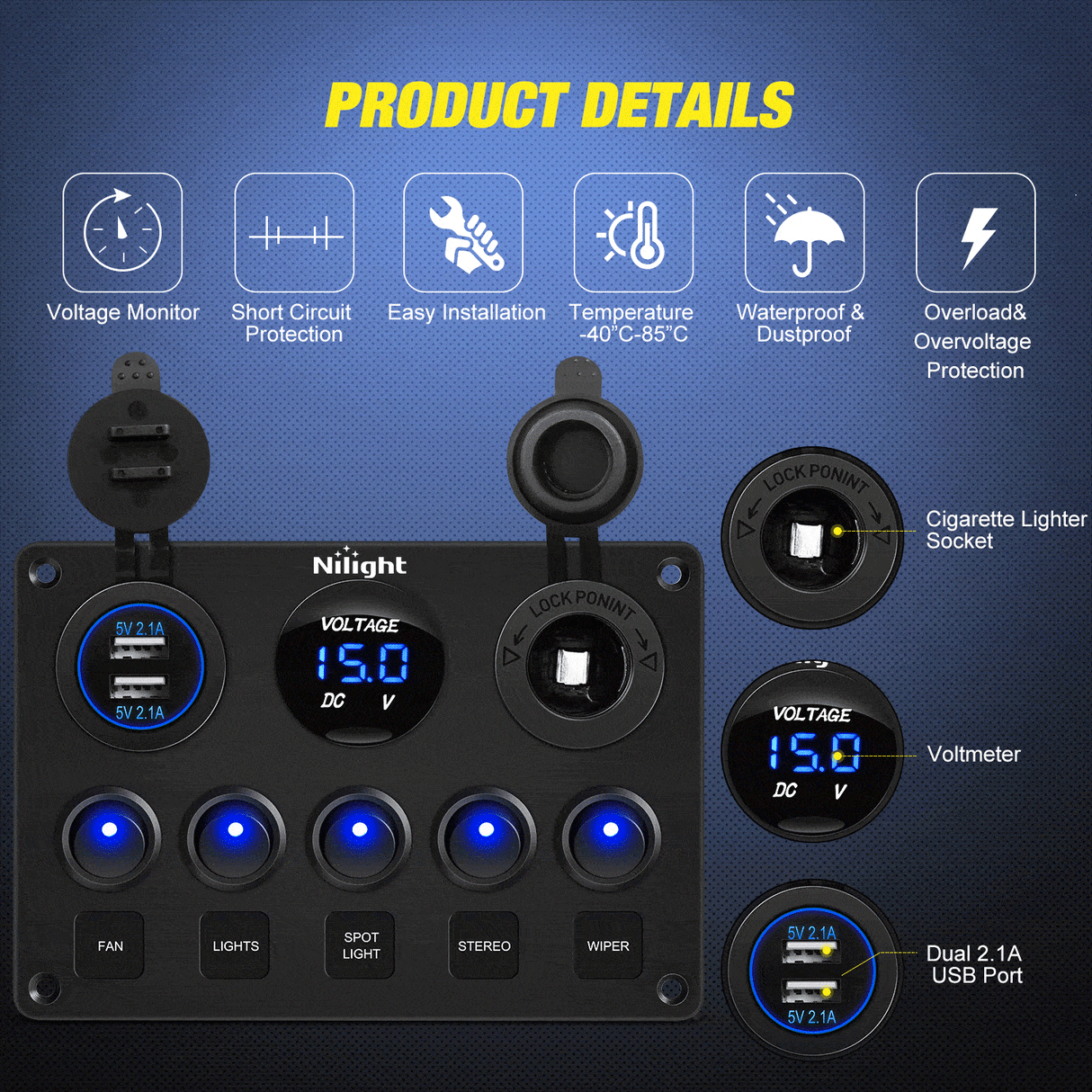

- Multi-Functional Switch Panel: Product integrated with dual USB port, digital Voltmeter, 12V outlet, waterproof board, and 5 on / off rocker switches, this 12V/24V electrical panel can meet your various needs.

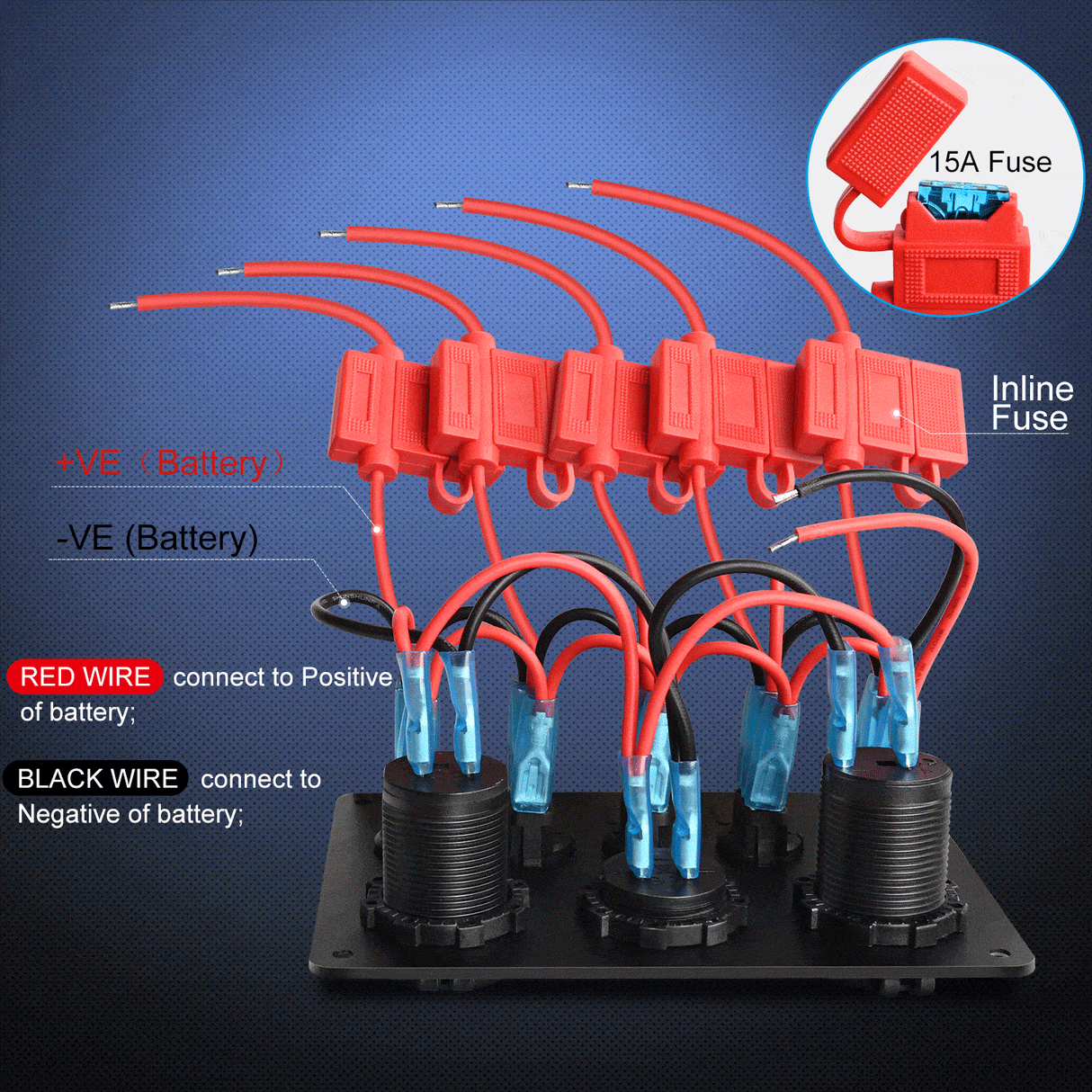

- Safety Protection: Real-time LED voltmeter shows the status of the voltage. Pre-wire design with 15A fuse providing you with overload, over-current, and short circuit protection.

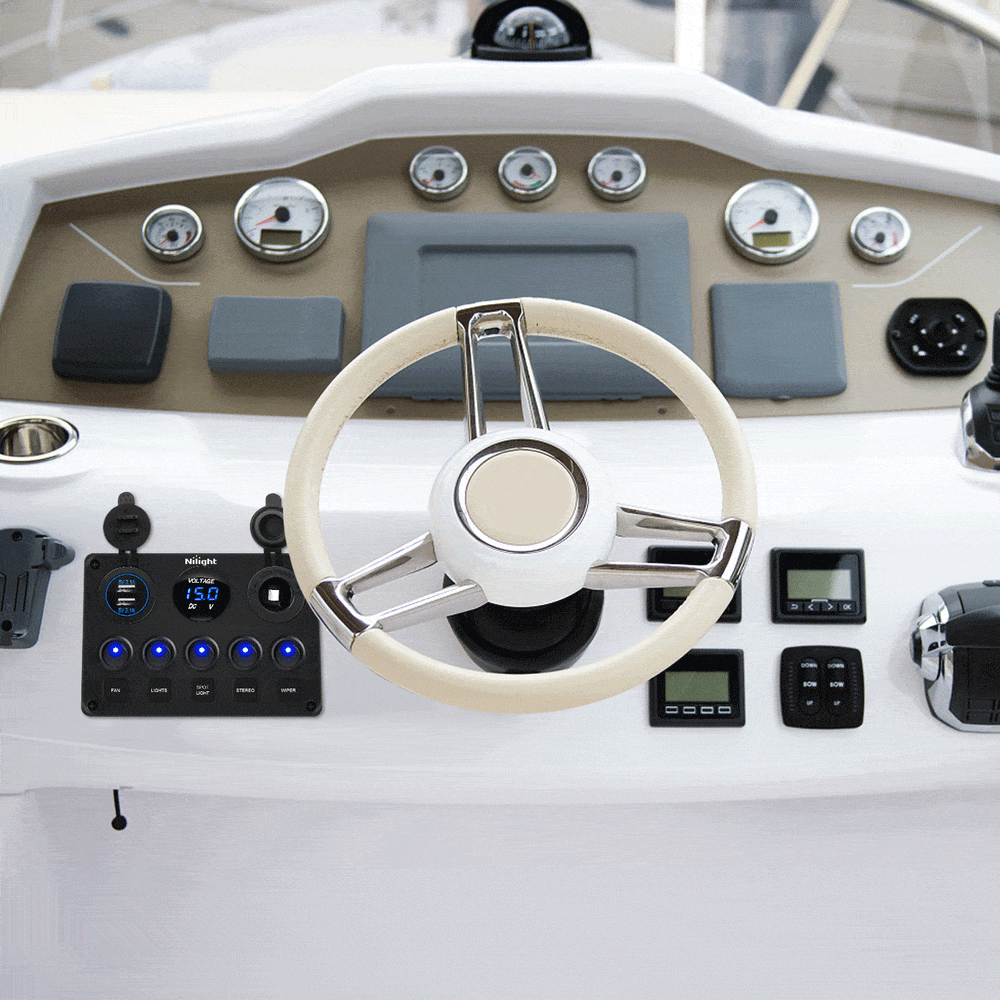

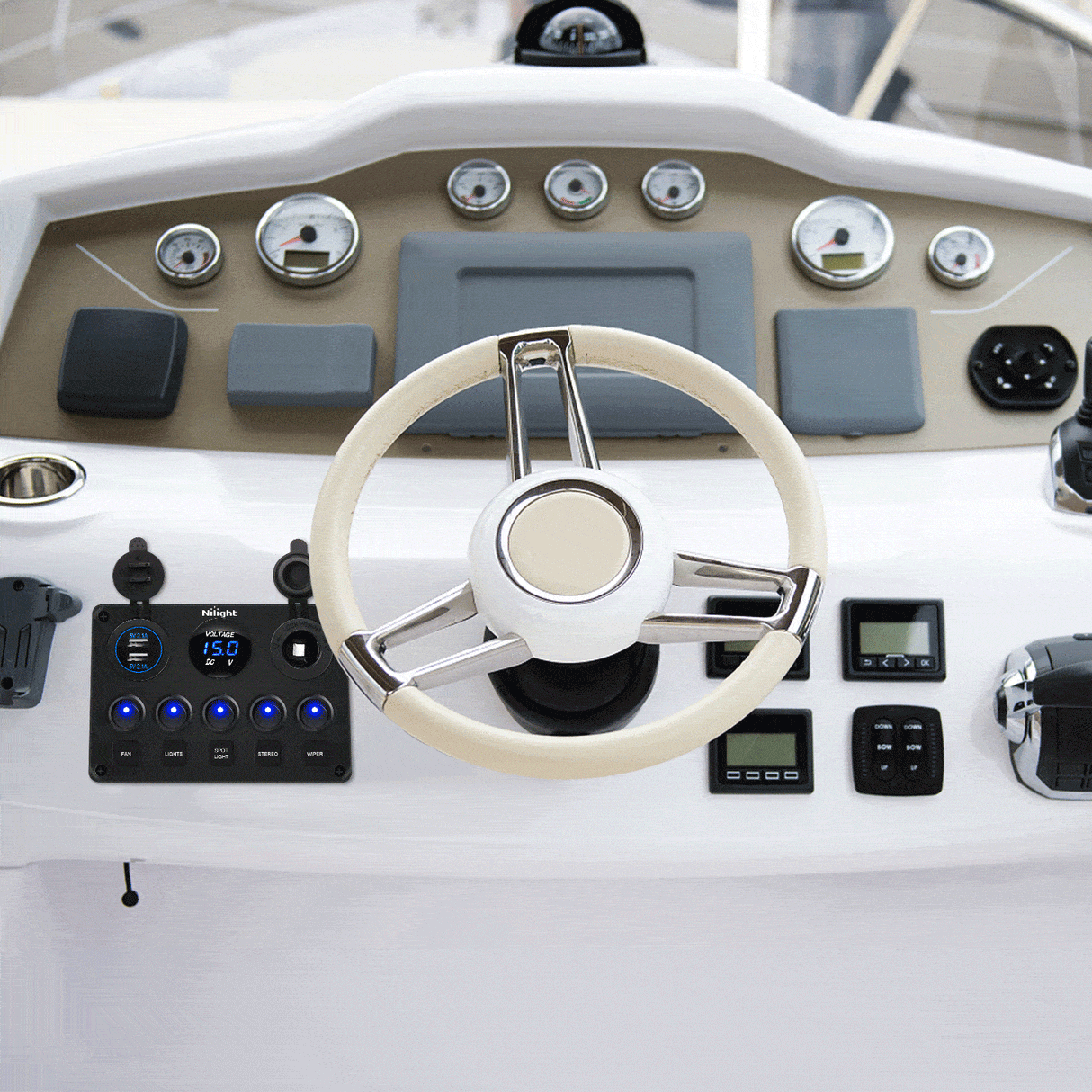

- Wide Application: This switch is suitable for 12V-24V Systems and widely applicable for most DC 12V-24V cars, UTV/ATVs, trucks, trailers, RVs, caravans, buses, marine boats, yachts, airplanes, etc. Convenient to install with pre-wired and four assemble screws.
- IP65 Waterproof: The waterproof marine switches perform well in marine environments due to their splash-proof panel, and water-resistant caps.

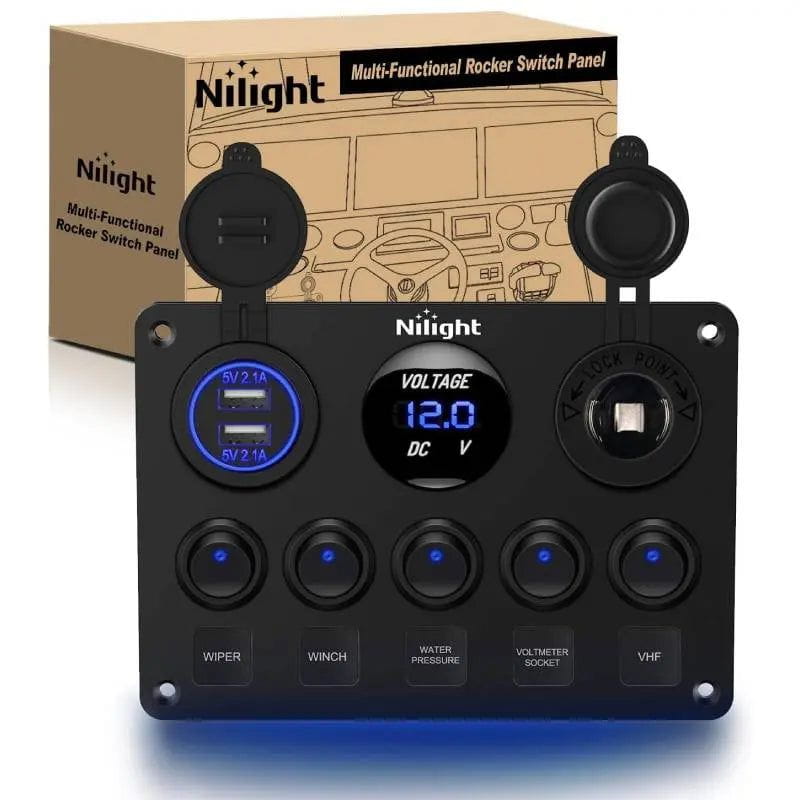

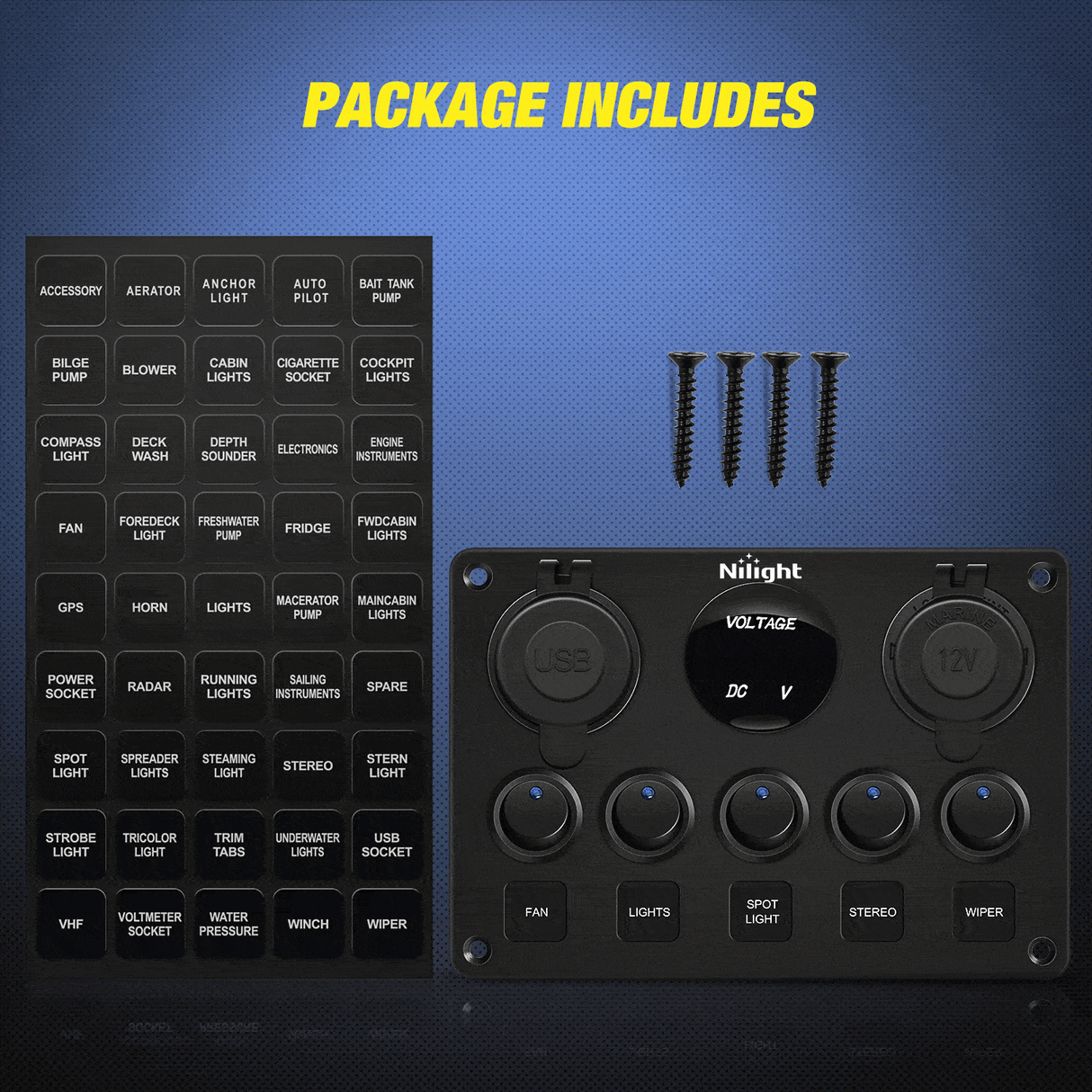

- The package includes a Pre-Wired switch panel, DIY Stickers, and 4 screws.
Integrated with a dual USB charger, digital Voltmeter, 12V outlet, waterproof panel, and 5 on/off toggle switches, this 12V/24V electrical panel can meet your various needs and is widely applicable for most 12V-24V DC cars, UTVs/ATVs, trucks, trailers, RVs, caravans, buses, marine boats, yachts, airplanes, etc.
- Backlit: Blue
- Installation:pre-wired
- Material: Panel: Aluminum, Switch: ABS & PC
- Voltmeter display range: 0- 24VDC
- USB socket output: DC 5V (2.1A/2.1A)
- Cigarette Lighter: 12VDC
Features
ON-OFF Toggle Switch
- This round toggle switch is available in a variety of styles made especially for 12-volt application
- Type: 3 Pins with LED SPST: ON-OFF
- Working voltage: 12V DC
Digital Voltmeter Monitor
- Material: Aluminum Panel + Superior ABS & PC
- This voltmeter helps you keep an eye on battery voltage maintenance of the battery, extends battery life to prevent an accident caused by battery problems
Cigarette Lighter Socket
- This is a universal 12V cigarette lighter socket, which is mainly made of durable flame-resistant hard plastic material for safe use
Dual USD Charger
- Dual USB charging ports with a single output of 2.1A enable you simultaneously charges 2 devices at a high speed
- Input voltage: 12 - 24V DC
- Output voltage: 5V DC
- Output current: 4.2A (2.1A & 2.1A)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Customer Reviews
Well made and easy to install.
Good quality! So easy to instal
very very reliable and works great!!
Ordered this to replace the old switch panel in my boat, was way easier to install than the last panel where you had to cross between every fuse. Just ground all of your accessories and then run one single wire to each switch. One positive one negative to the panel and that powers every switch.
This unit has 15amp fuses, 20amp switches and 16 gauge wire. I bought this mainly to power a compressor fridge freezer unit and to monitor my auxiliary battery state of charge from the cargo area of my yukon. The mounting plate is good quality and the hole sizes are pretty standard so you can replace failed components easily. Many people will want to rewire this to meet their needs but beware that the blade terminals come off very hard. In fact I broke the voltmeter and the guts fell out. I was able to super glue it back together. The wire is very thin gauge so I wired the 12v socket up independently with 12 gauge wire and its own 15 amp fuse. Don't plan on powering anything with high power consumption. It was pretty cheap and you get what you pay for but it fits my needs.
Used this on my boat to straighten up some wires and be able to turn off things is wasn't using them. Turned out very nice and I'm please with it so far.
Installed on a new console on our pontoon boat, works great, very easy to install, love to volt guage. The mounting screws are beginning to rust
Installation facile et good look !
Well built and easy install
The only thing I don’t like is the constant drain on the battery from the volt meter and USB port. I wrote them to a switch to keep the feature but not the drain. I like the switch board and that each circuit has a fuse. It is a good product
