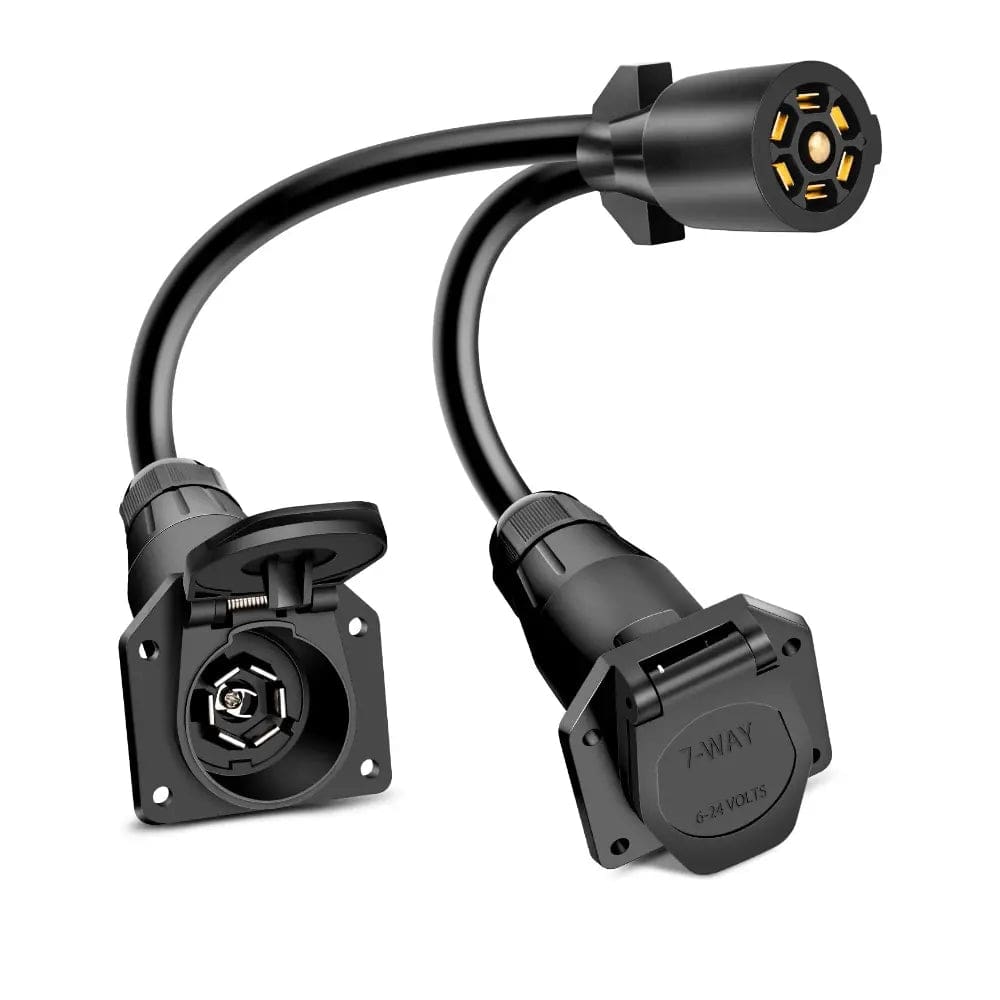

- 2 male 7 way trailer plugs allows you to connect your cargo/boat trailer and slide in camper.
- Durable weatherproof and corrosion resistant commercial grade PVC
- Spring-loaded dust cover protect the connection points
- Double-prong plug firmly holds the connection
- Nickel plated copper pins for superior conductivity
Features
Multi-Tow Trailer Adapter

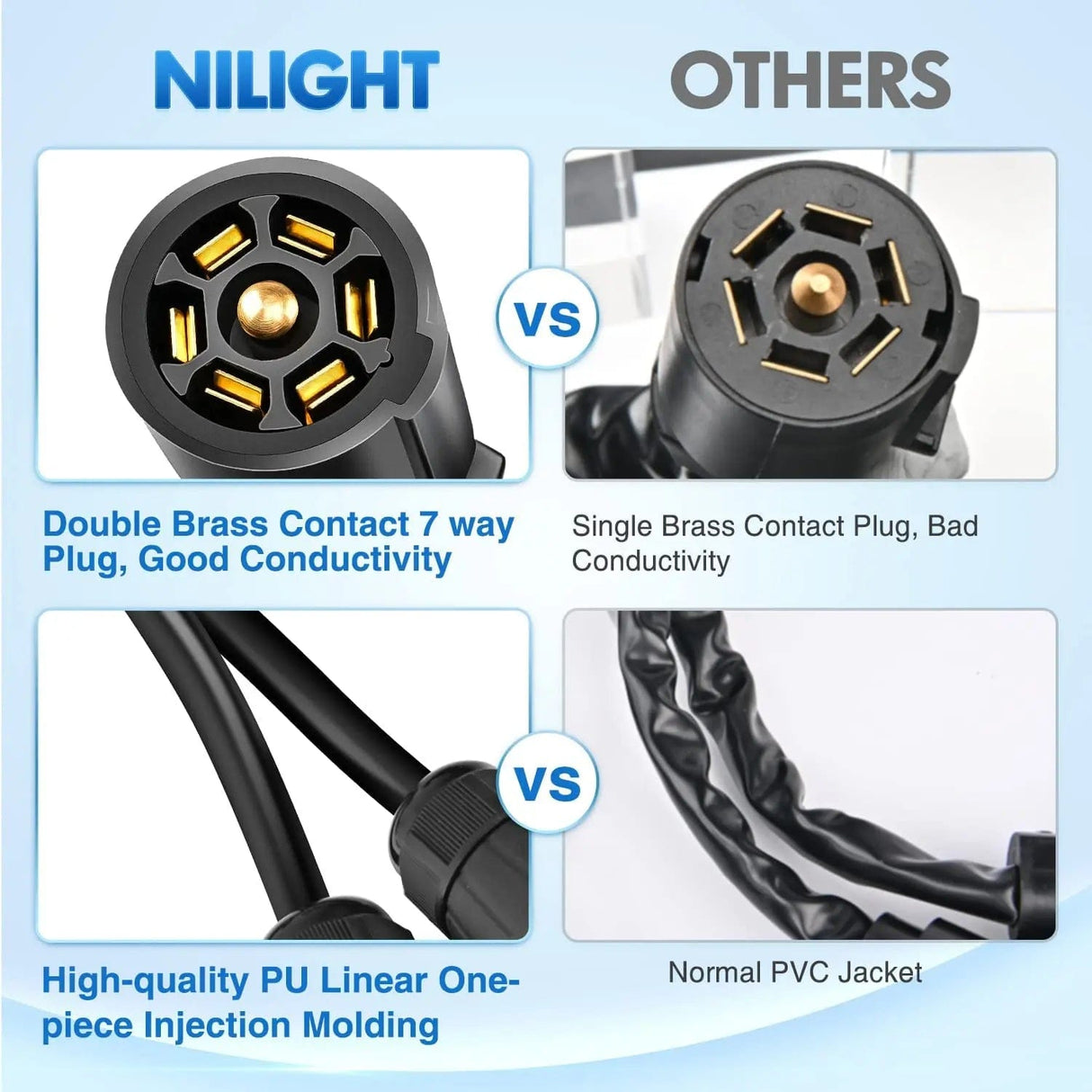

Upgraded premium double prong to replace poor single prong, molded into 2 male 7 way plugs, perfect connection to any standard 7 way trailer receptacle.
Flexible Cable

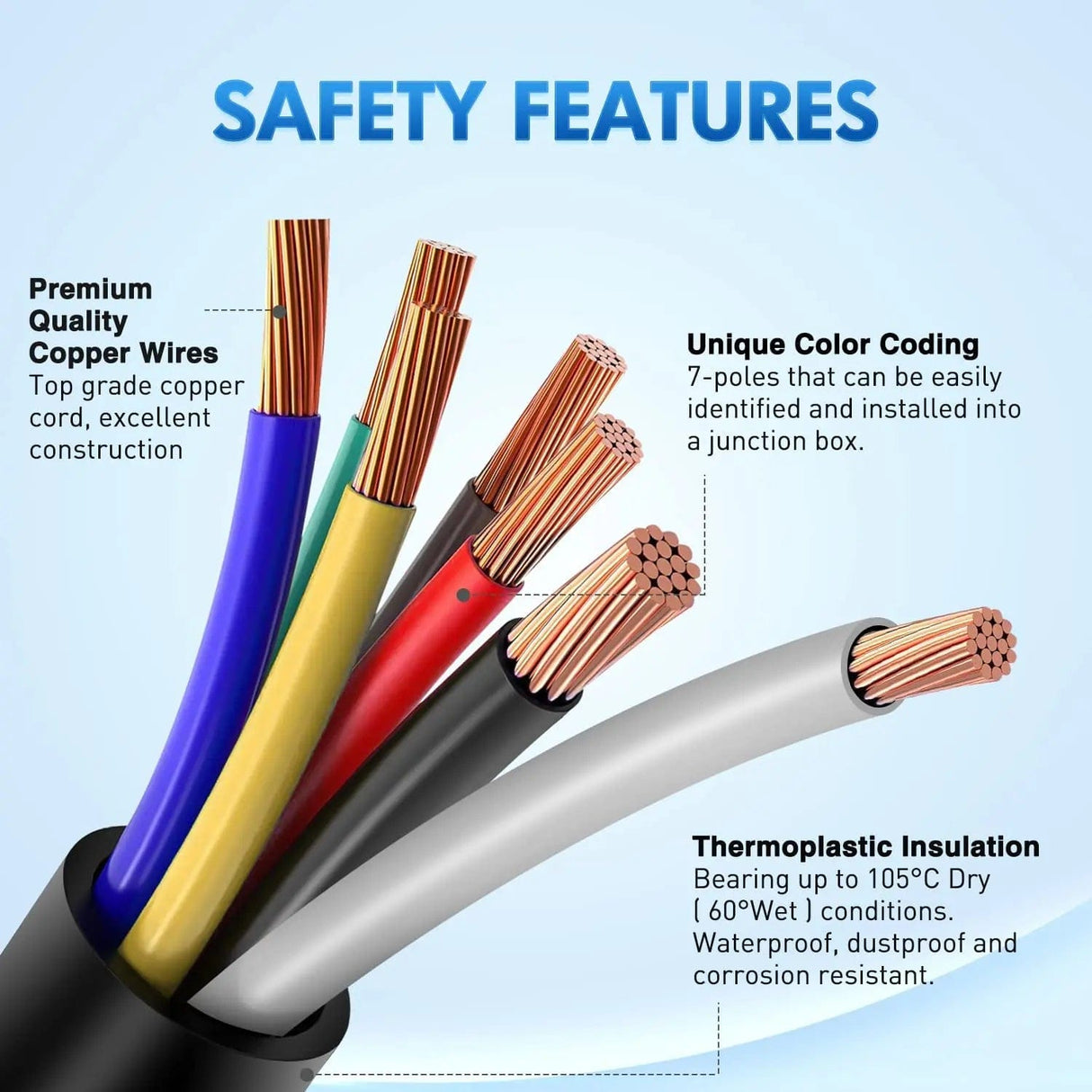

Heavy-duty Trailer Wire is made of high-end pure copper and is made of a soft PVC, ensure long-lasting use.
Copper Pin Contacts
High quality copper pin,it has a outstanding contacts and connection perfectly.
Specification

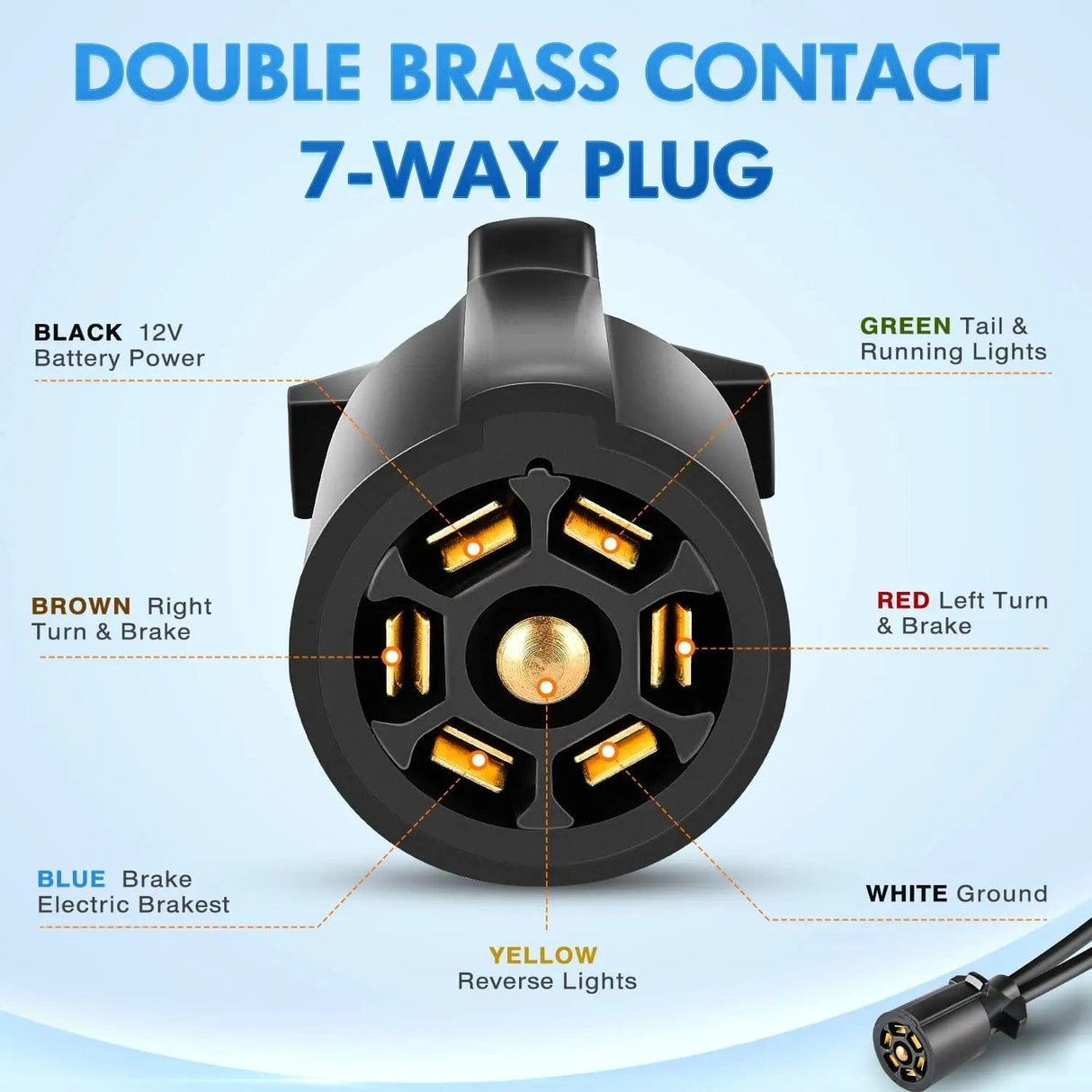

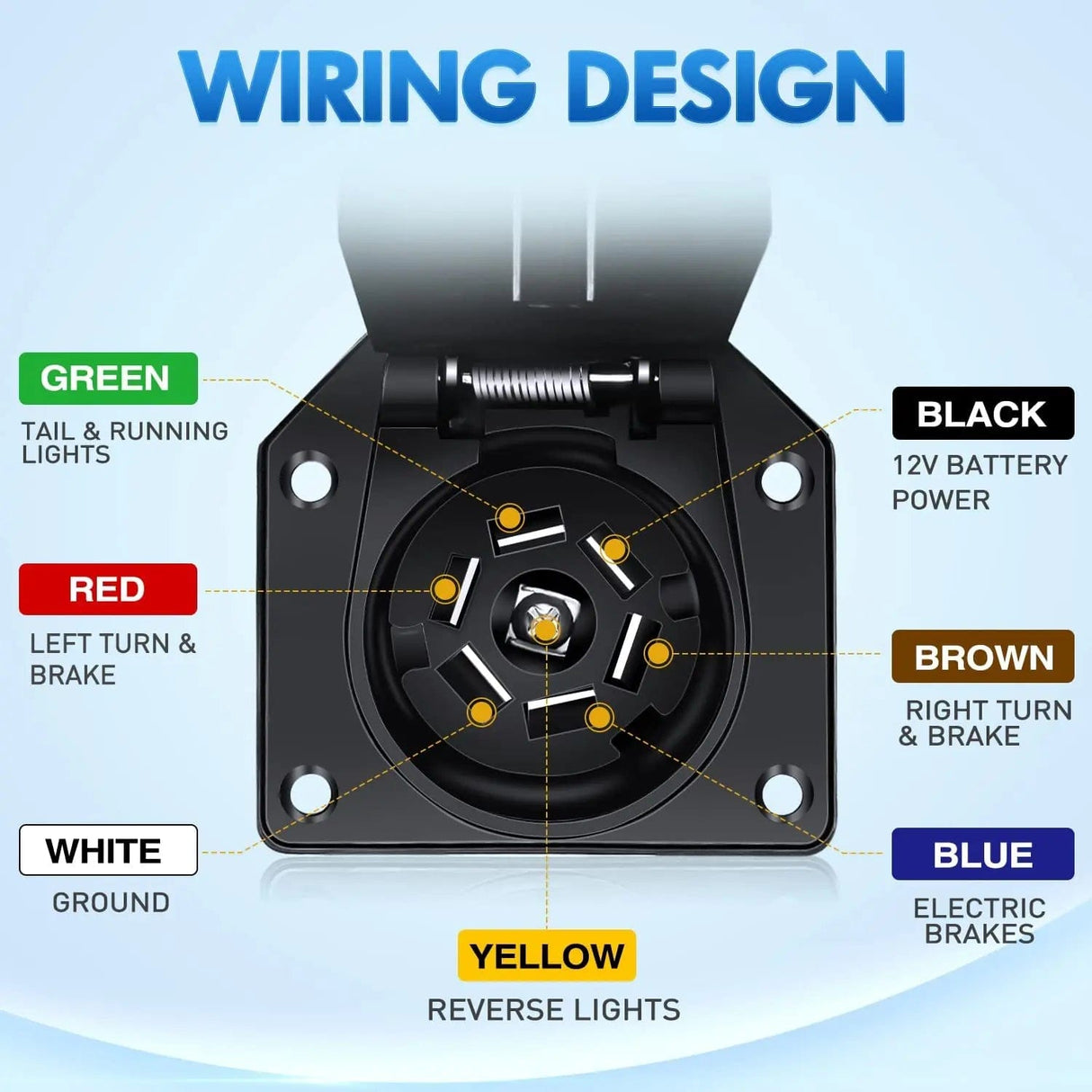

BLACK: 10AWG, 12V Battery Power
GREEN: 14AWG, Tail & Running Lights
BROWN: 14AWG, Right Turn & Brake
RED: 14AWG, Left Turn & Brake
BLUE: 12AWG, Brake Controller Output
WHITE: 10AWG, Ground
YELLOW: 14AWG, Reverse Lights

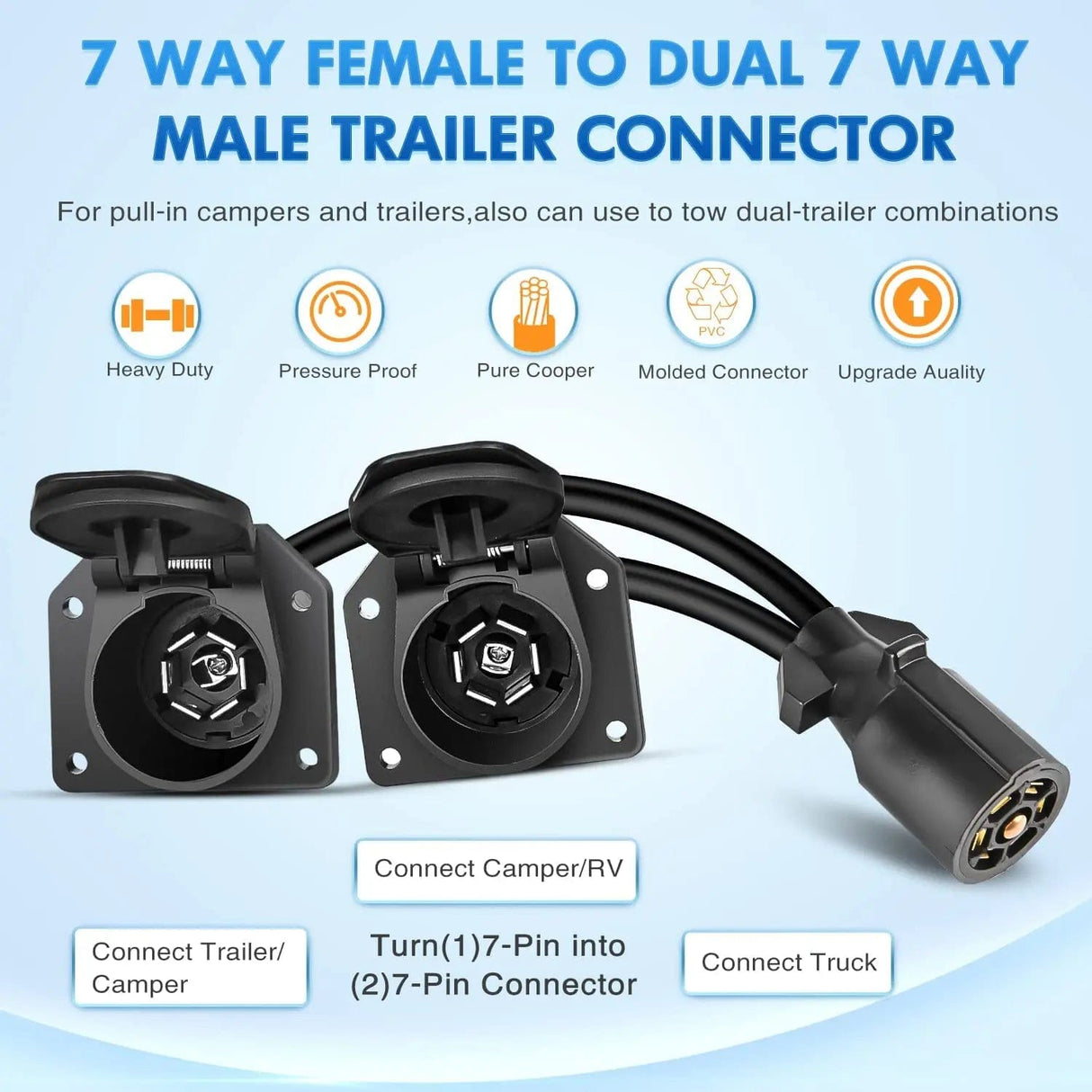

1 Female end plugs into the Truck/Vehicle, and 2 Male plugs into other ends such as trailer or campers.

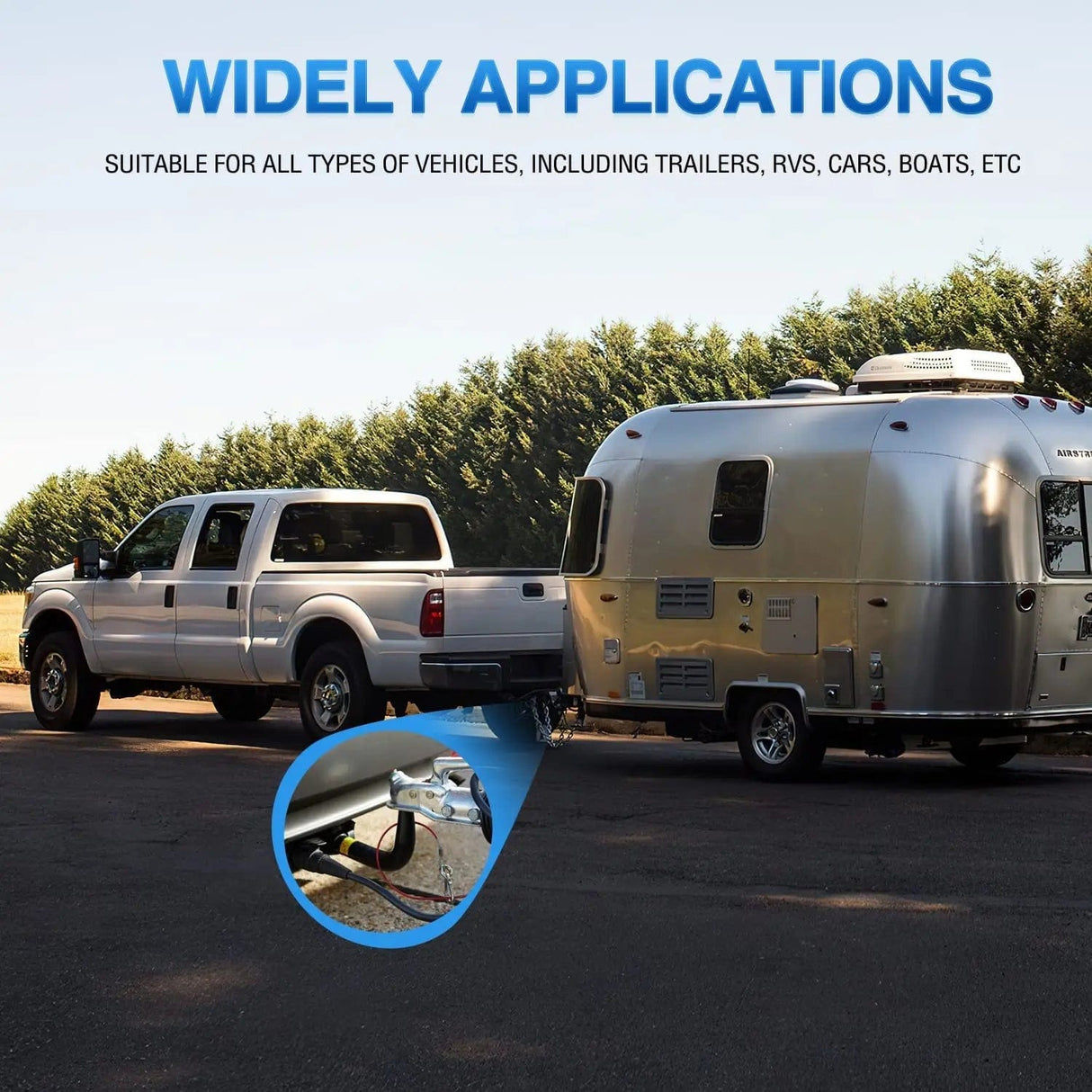

Commonly used to connect a truck camper and trailer setup. It can also be used for towing a double-trailer combination.
Use this 7-Way Round RV Trailer Blade Connector to fulfill the below functions like Tail and running lights. Left turn and stop light, Right turn and stop light, Brake controller output Reverse lights, connect to 12V Power and Ground.
