About this item
Super brightness: Combo beam with triple row and nest reflector cup design in the middle for extreme light efficiency
Upgrading reflector cup: The broad reflective plate on both sides allows multi-angle refraction, ideal for ambient illumination

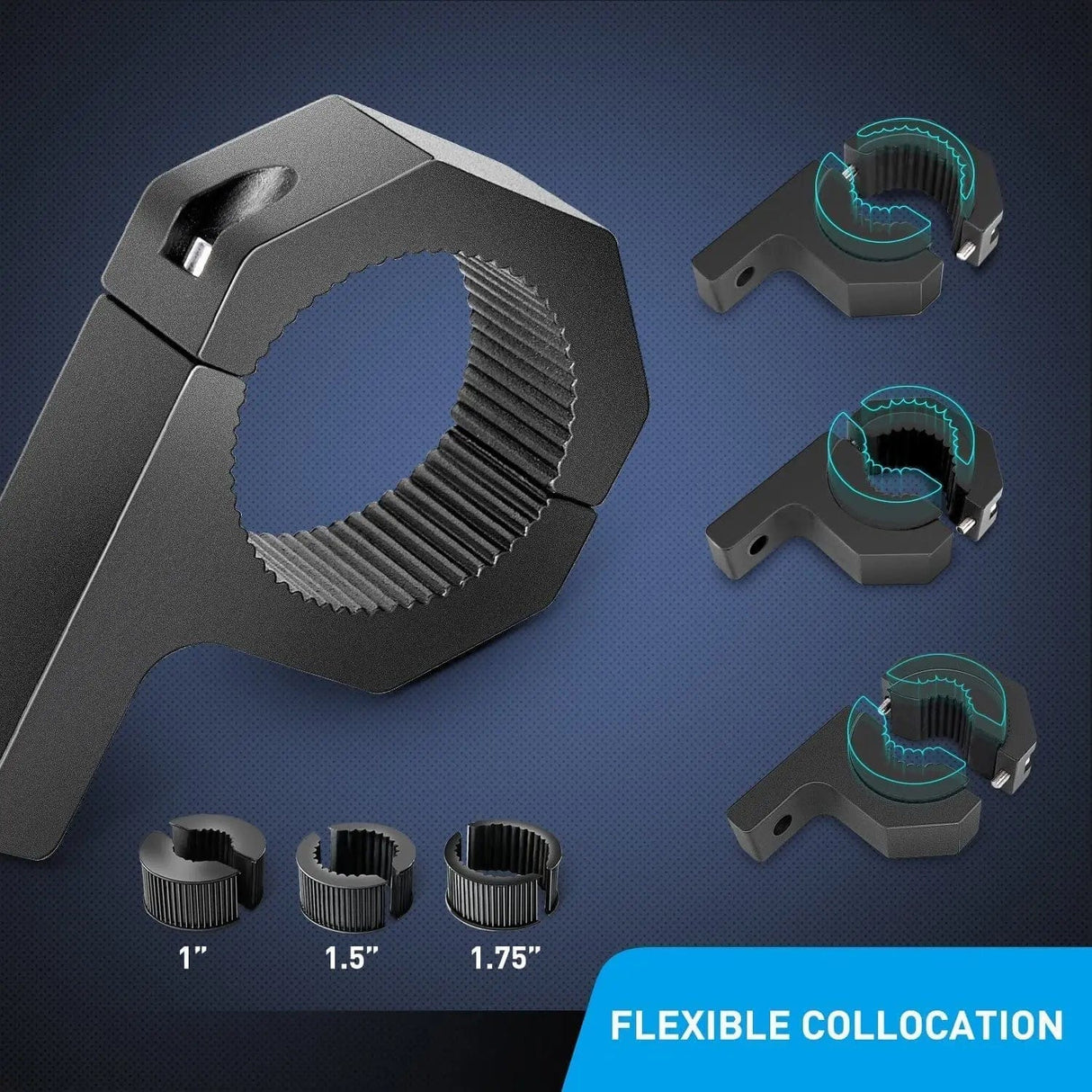

Sturdy bracket: Can be used on tubes of 1in, 1-1/2in, 1-3/4in & 2in In diameter and applied to LED light bars for almost all kinds of vehicles. Simplifies the installation of Nilight off-road LED light bars onto the roof rack, roll cages bull bar, or head rack of your ATV, UTV, and truck
Wiring Harness: More than 10ft of wiring from the switch to lights, has also been extendable, run the harness to your desired lighting location,3 pin on/off rocker switch with Red Indicator light when truing on, easy to turn on or off, long service life
Package Includes: 20 Inch LED light bar, Horizontal Bar Clamp Mounting Bracket, 16AWG Wiring Harness, support 2 years warranty
Specification
| LED Power |
420W/PC |
| Lumen |
42000LM/PC |
| Beam Type |
Spot Flood |
| Waterproof |
IP68 |
| Operating Voltage |
9-30V DC (fits 12V, 24V vehicles) |
| Color temperature |
Pure White 6000K-6500K |
| Operating temperature |
-40℃～+85℃ |
| Lifespan |
50,000 Hours |
| Material |
6063 Aluminum housing, Aluminum substrate circuit board, high-quality led chips, PC lens |
| Package Included |
1PCS 20 Inch LED Light Bar Kit; |
Feature

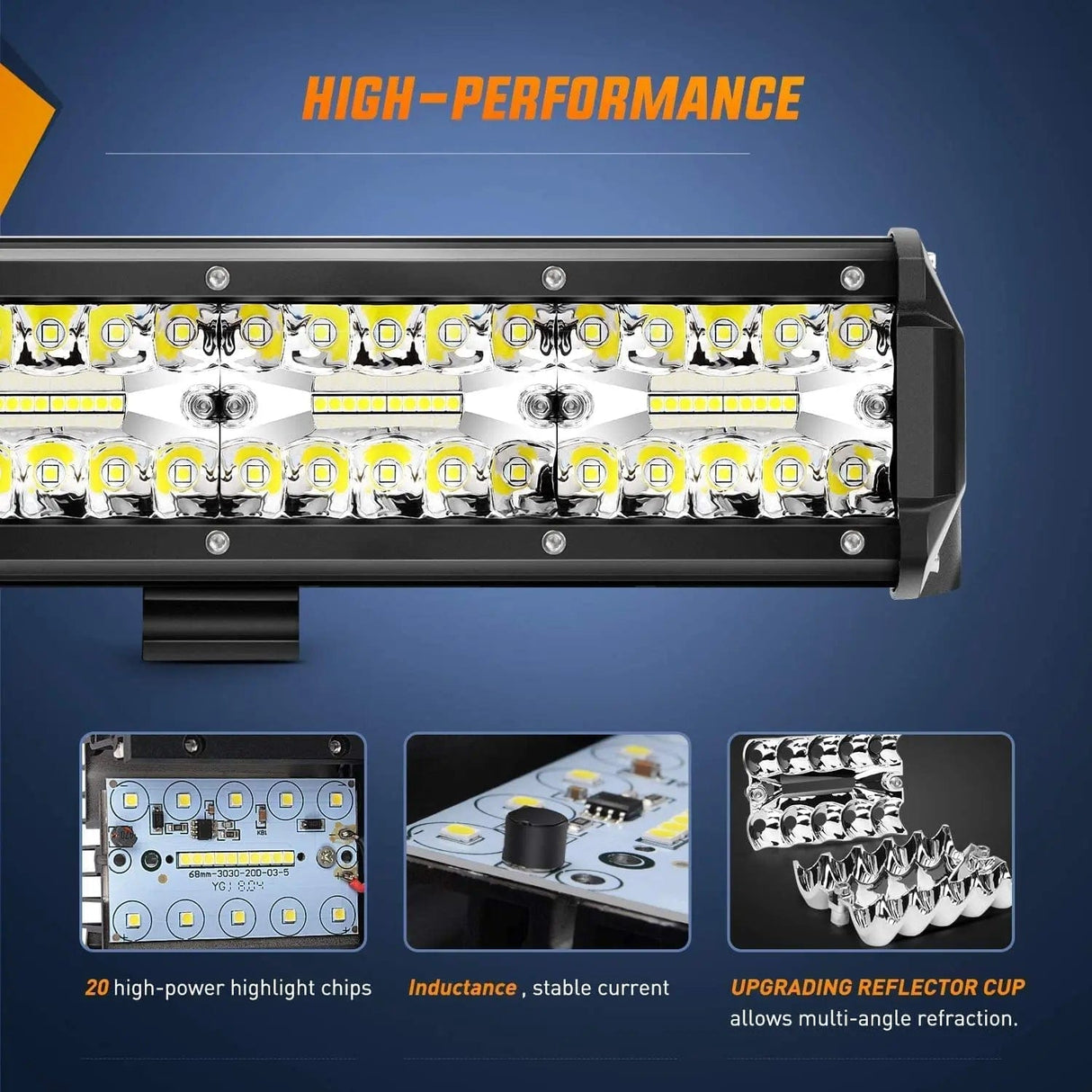

Triple Rows, Brighter Light
The special tri-row design contains more LED chips than dual rows light bars of the same size. A super bright combo beam illuminates the road ahead, a better lighting effect.

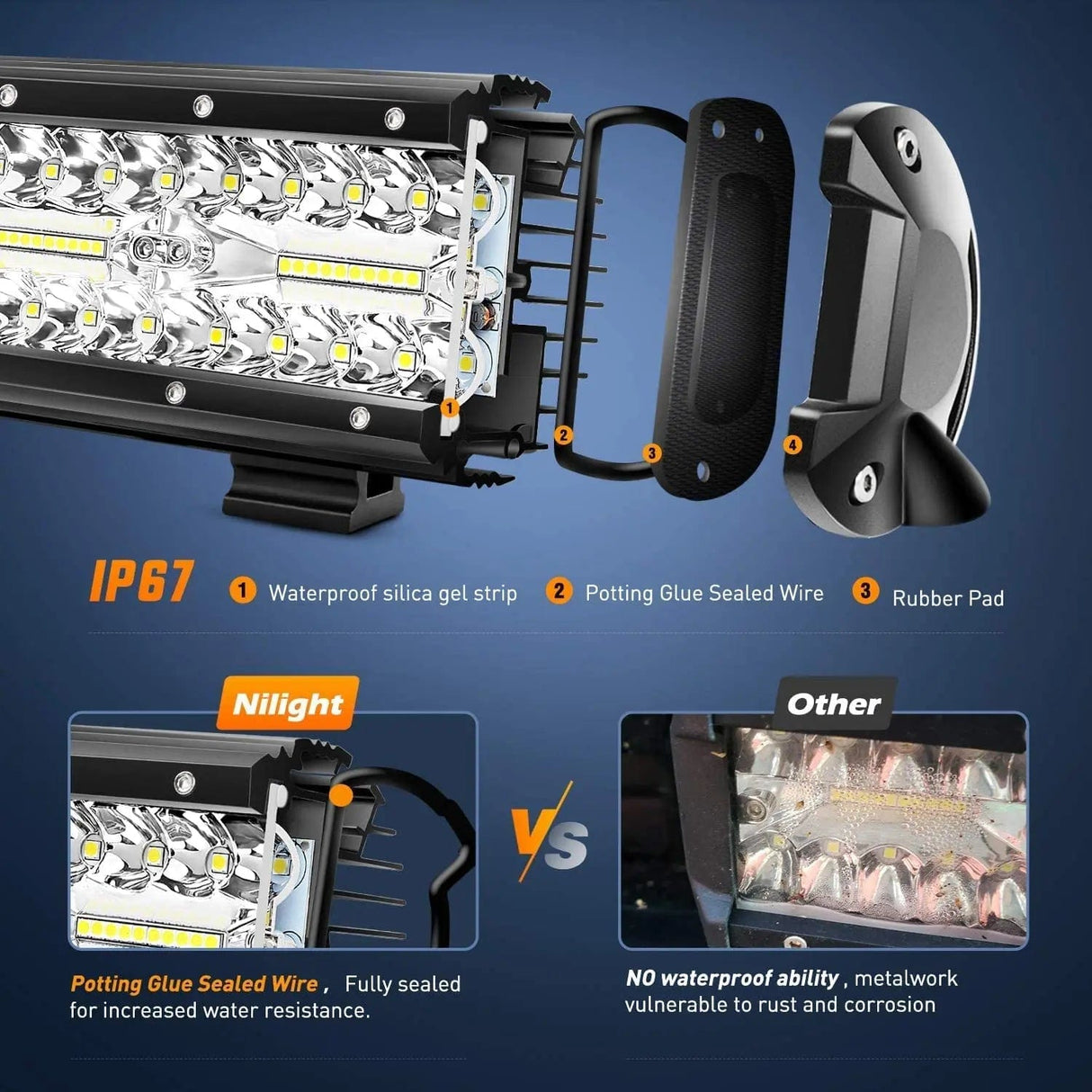

Outstanding Waterproof Property
The Led light bar is well sealed by a waterproof rubber pad and silicone sealing strip, the outer protective cover protects against water and dust.
Effective Heat Dissipation
High-quality heat conduction silicone gel together with redesigned aluminum alloy housing provides a superior cooling effect for a long working lifespan.

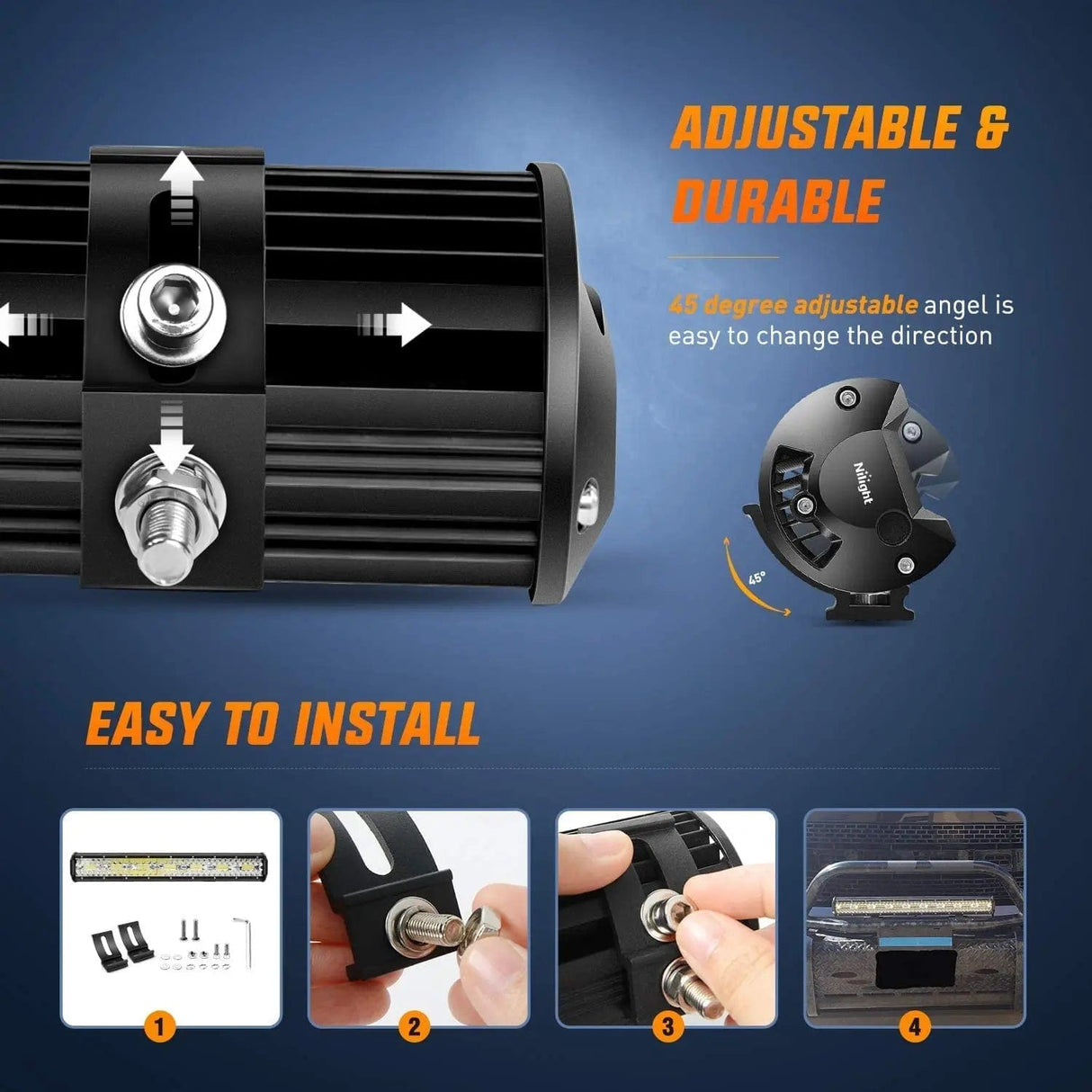

Adjustable Bracket
Adjustable mounting bracket makes changing direction of light beam easily.
Strictly Test
Temperature & Humidity Test
To ensure that the unit can withstand a wide range of temperature without reduce light output safety. Working Temperature: -40~85 degrees Celsius.
Dust Test
To ensure the unit is preperly sealed against harmfull road dust and debris.
Salt Spray Test
To ensure that the unit can withstand against oxidation caused by salt on the coastal area and from winter condition.
Moisture Test
To ensure that the unit do not cause moisture buildup leading to reduce visibility.

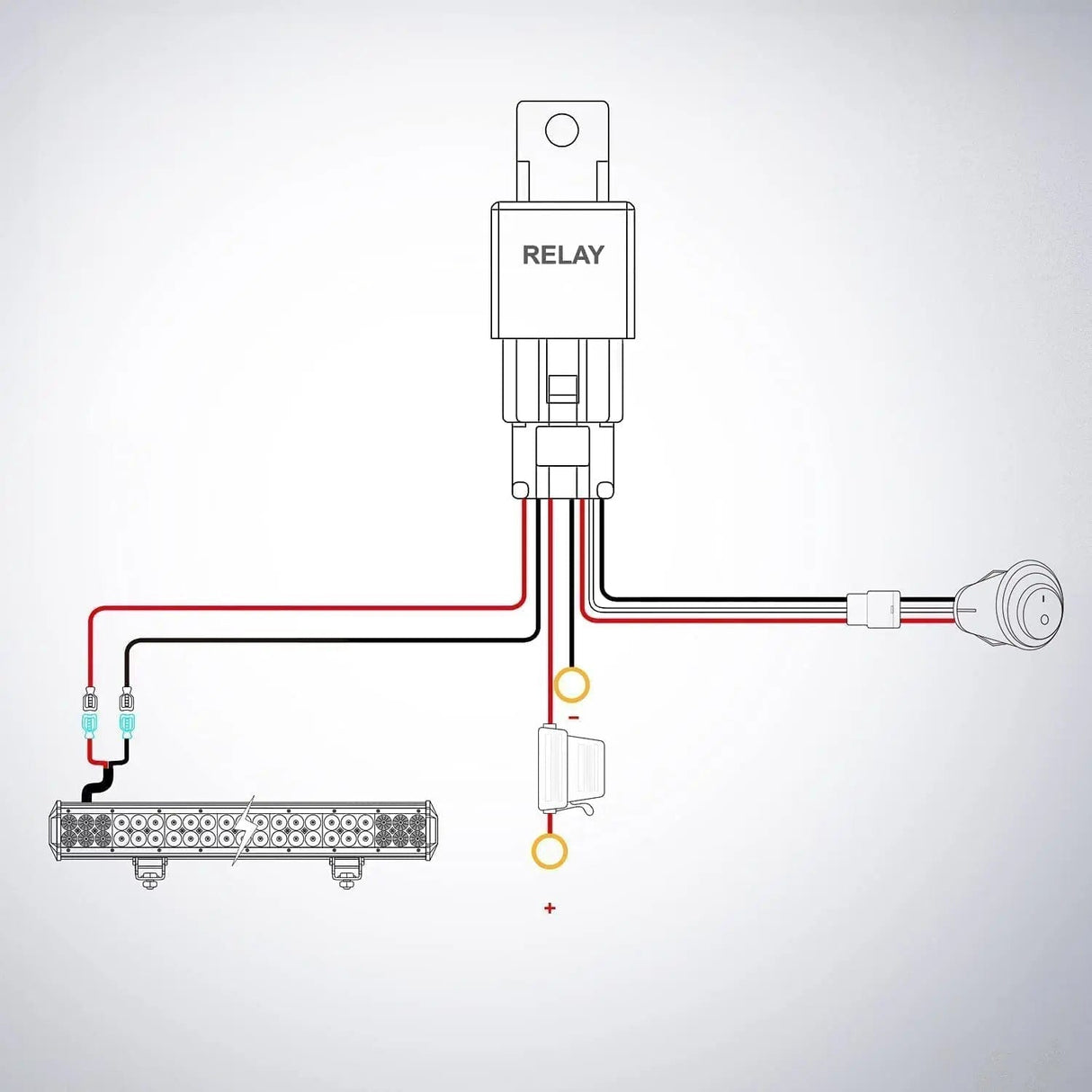

Wiring Diagram
Rocker Switch
Relay
Inline blade fuse
Premium Material Wire

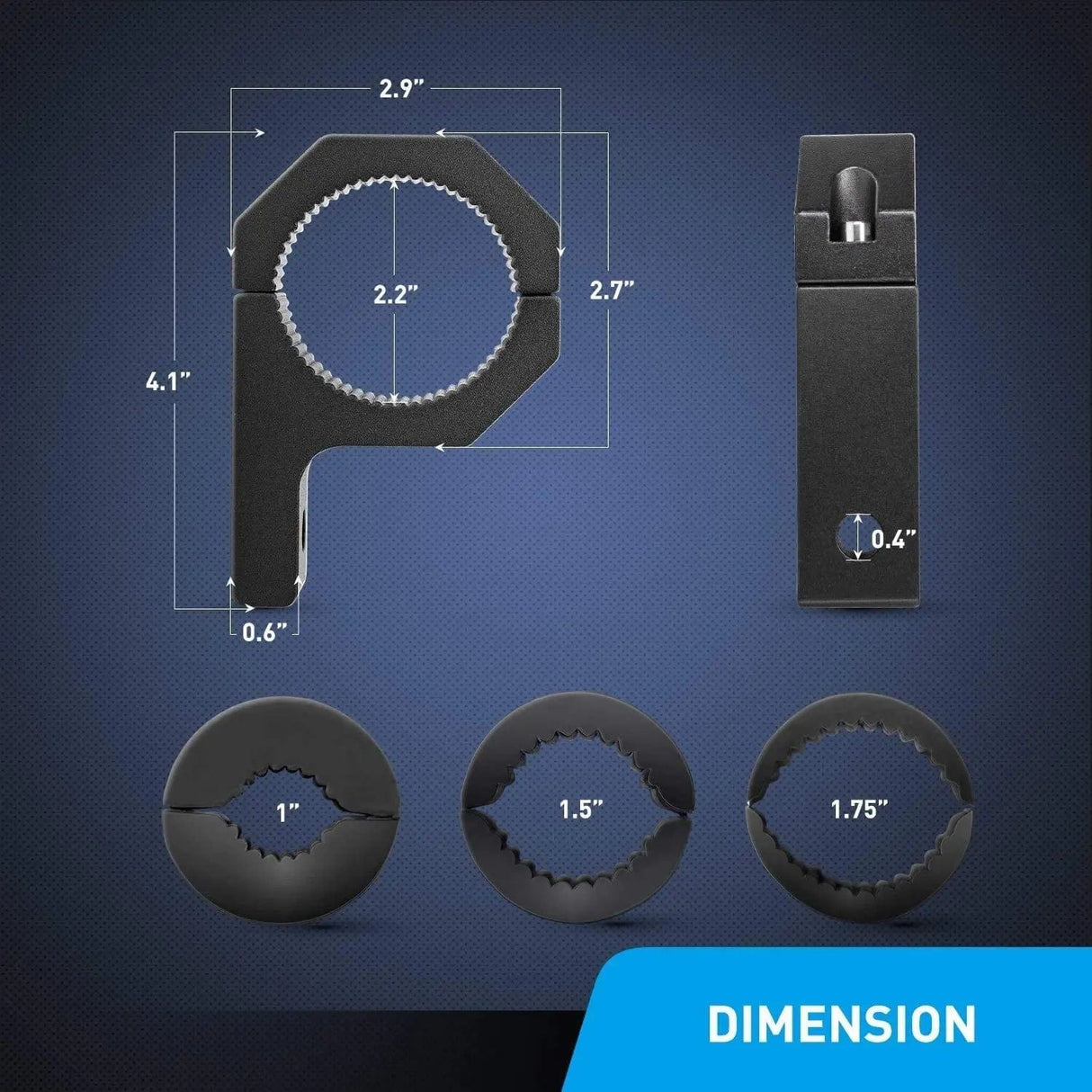

Fitted Tube size
Horizontal Bar Clamp
Solid Made Material
Installation Method
Wide Application
